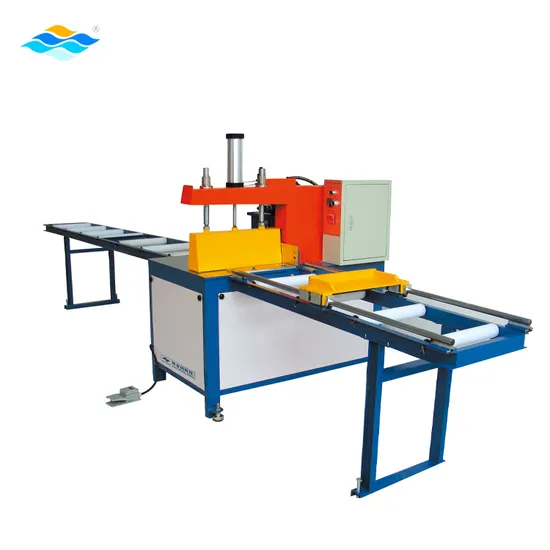

90 Degree Single Head Cutting Saw for Aluminum Windows and Doors Making

Product Description

Product Description
Basic Info.

Model	AFWS-500
Power supply	380V 50Hz
Input power	7.5kw
Main spindle speed:	2800rpm.
Cutting width*height	Max 600*140mm
Saw blade dimension:	Φ600×Φ30×δ4.8mm Z=140
Cutting angle	90 °
Angle cutting tolerance	±5′
Plane of cutting surface	≤0.10
Cutting surface roughness	Ra12.5um
Size: (width × high × long)	1500× 1100× 1800mm
Conveyor size	2.5m+2.5m
Measurement	Digital display
Weight:	About 1000Kg

Detailed Photos
TEXT
Main Features:
1. Used for aluminum profile and curtain wall profile cutting .
2.Sawblade feeding system adopts imported linear guide pair, with high accuracy and long service life.
3. 90°and 45° cutting is available. Saw blade rotate smoothly due to high accuracy main spindle.
4. Imported carbide saw blade give accurate processing and high endurance.
5. Auto-opening guard shield ensured safety operation.
6. Spraying cooling system, make sure carbide saw blade long service life .
product lines
Our Advantages
HISENA specializing in production and selling UPVC and aluminum doors and windows manufacturing equipment was established in 2008. Our company is located in Jinan, China. We have professional team of 50 staff in R&D, production, marketing and after-sales service. Mr. Linwei Zheng, our general manager, has been adhering to the rigorous craftsmanship spirit for more than 10 years, always considering customer needs and customer experience, and constantly innovating to meet market requirements. Routine
Packaging & Shipping
1.Payment Terms: 40% T/T in advance, 60% T/T balance before delivery.
2.Delivery Time:15 working days after payment.
3. Packed with plywood cases or as request and acutal need.
Company Profile

After-ales Service

Answer support requests inside a two-hour time frame
Most issues are resolved within 24 hours.
When needed, a technician is usually sent the next day
Most parts are kept in our inventory to reduce idle time
Warranty Policy
Service life of our equipment is more than 10 years. All products are with 1 year warranty.
Installation and Training
Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
Accessories
Necessary replacement spare parts for all equipment are dispatched with the equipment. In our warehouse, almost all accessories are in stock, usually we will send related accessories out the next working day upon request from customers.
