BM38/12 FINCM Steel Structure Fabrication Vertical Milling And Drilling Machine For Metal

Product Description

Product Description

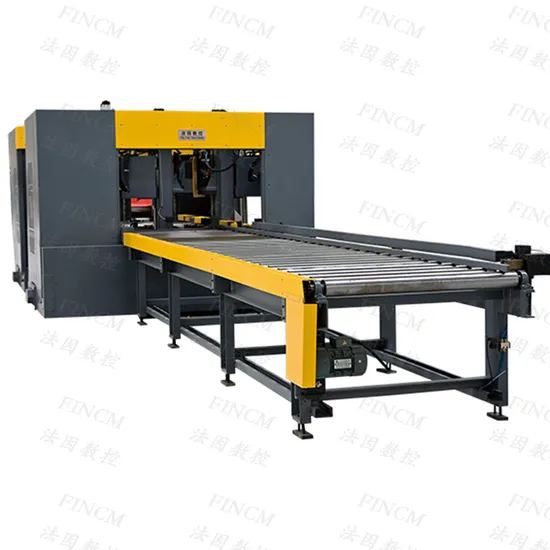

BM38/12 FINCM Steel Structure Beam Metal CNC Vertical Gantry Milling Machine
This machine tool is mainly used for milling grooves, milling end faces and web milling arc grooves of H-shaped steel end wing plates in steel structure industries such as construction, bridges, and municipal administration.
Equipment advantages:
1. The CNC longitudinal sliding table is used to process the locking of the inclined H-shaped steel at one time.
2. The machine tool has an automatic setting function, which can automatically change the amount of milling, which greatly improves productivity.
3. It adopts frequency conversion roller table to feed, which can be stably conveyed.
4. The scale of the conical milling cutter can be adjusted according to the cutting depth of the milling head, and the groove amount can be aligned to obtain the required groove size.
5. Cemented carbide indexable milling cutters are used for the processing of grooves, milling end faces and arc grooves.
6. The use of programmable controllers, touch screens and other electrical components, and the mechanical transmission uses high-precision mechanical components such as ball screws and linear rolling guides to improve positioning accuracy and extend the service life of the machine tool.
7. The feeding channel, main machine, and discharging channel form an automatic line, which can automatically and continuously mill the H-shaped steel of the same model.

Detailed Photos
Main Outsourcing Parts Catalog:

Number	Name	Brand	Country
1	Linear slide	HIWIN/CSK	Taiwan, China
2	Pneumatic solenoid valve	Airtac	Taiwan, China
3	Filter regulator	Airtac	Taiwan, China
4	touch screen	Screen pass	Taiwan, China
5	programmable control	Mitsubishi	Japan

Note: The above supporting manufacturers are all designated suppliers of our company. In case of failure to supply under special circumstances, products of the same level will be used instead, but the quality standards shall not be lower than the products supplied by the above suppliers.
Random accessories, spare parts list:

Number	Code	Name	Quantity	Remarks
1	BM38.3-3	set screw	6
2	BM38.3-55	wrench	2
3	BM38.3-56	handle	2
4	BM38.3-57	Washer	16	Including the one installed on the machine
5		Round nut wrench	1
6		Paint (with curing agent)	2small buckets
7	BM38.3-1	Cylindrical milling cutter	2 pieces left-handed Right-handed 2 pieces	All the milling cutters included in the contract are installed on the machine and shipped with spare 50% blades
8	BM38.3-5	Arc milling cutter	2 pieces left-handed Right-handed 2 pieces	All the milling cutters included in the contract are installed on the machine and shipped with spare 50% blades.
9	BM38.3-10B	Conical milling cutter	2 pieces left-handed Right-handed 2 pieces	All the milling cutters included in the contract are installed on the machine and shipped with spare 50% blades.
10		Blade fastening screws	8 of each type	Where a milling cutter is included in the contract
11		Blade fastening handles	each with 2 sets	Where the contract includes a milling cutter
12	JB/GQ0341-89	Pipe joint12.5	2
13	ZBJ51002-87	Throat clamp 25	2
14	BM38.4-7a	Bead	4
15	BM38.4-7b	Layering	4
16	BM38.4-11a	Bead	4
17	BM38.4-11b	Layering	4
