Sc/LC/FC/St/Mu/MTRJ/MPO Simplex/Duplex/Quad Singlemode/Multimode Om3/Om4/APC Standard or Hybrid Fiber Optic Adapter

Product Description

fiber Optic Adapters are an important component in a fiber optic network; they are used in a fiber optic patch
panel or any other outlet to mate two connectors. Fiber Optic adaptors are available for all standard connector
types in both singlemode and multimode including Simplex and duplex versions. Our fiber optic adapters are
made with high precision machines which ensure precise alignment for the connectors when they are plugged in.

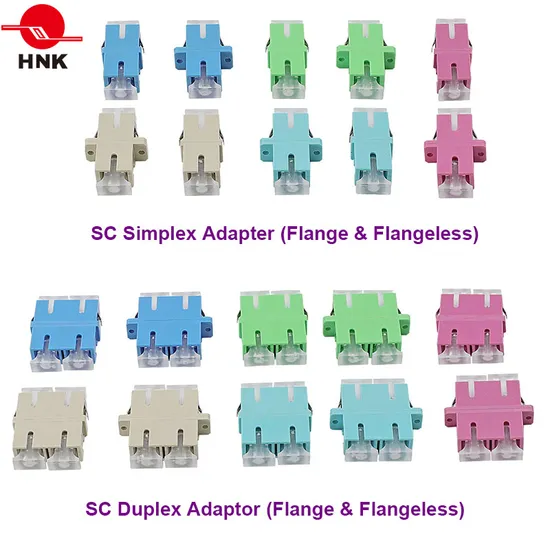

fiber Optic Adaptors are color coded allowing easy identification of the adaptor type.

We also offer hybrid and other special types of fiber optic adapters, such as Bare, shuttered and metal housing
fiber optic adapters.
Standards Compliance
TIA/EIA-568-C.3 TIA/EIA-604 RoHS, REACH SvHC compliant
Features
▪ Made of high quality Zirconia ceramic sleeves
▪ 100% tested on optical performance (Insertion Loss & Return Loss)
▪ End-face geometry requirement complies to Telcordia GR-326-CORE
▪ For end-to-end fiber cable connectivity
▪ Available in singlemode and multimode, including APC and various colours
▪ Female to female & male to female adapters available
▪ Hybrid, Shuttered and Metal adapters available
▪ Coloured for easy indentification
Environmental & Mechanical Data

Operating Temperature	-40 to +75º C
Storage Temperature:	-40 to +85º C
Temperature Cycling (61300-2-18)	-40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18)	70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19)	40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)	10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, <0.2dB change

Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: XX-AA-(BB)-(CD)E(FG)CL

Ordering Guide

XX	Adapter Type Code	AD, HAD, MAD
AA	Connector Type A (Female or Male)	FP,SP,SA,LP
BB	Connector Type B (Female)	FP,SP,SA,LP
C	Mode	SM=Singlemode MM=Multimode OM3=Multimode 10G
D	Fiber Type (only apply to MAD Type Adapter)	OM1=62.5/125 OM1 OM2=50/125 OM2 SM=9/125 Singlemode
E	Fiber Count	SX=Simplex, DX=Duplex, QD=Quad
F	Adapter Shape	F= flange type, S =Square Type, D=D type
G	Material	M=Metal, P=plastic
CL	Color(CL)	Blue for Singlemode PC Standard, Beige for Multimode Standard, Aqua for OM3/OM4 Standard and Green for Singlemode APC. (Metal Structure Unsuited)

Adapter Type Code

AD	Standard Adapter (Female to Female Adapter)
HAD	Hybrid Adapter(Female to Female Adapter)
MAD	Male To Female Adapter
BAD	Bare Adapter
SAD	Shuttered Adapter

Connector Type Code

FP	FC/PC,FC/UPC	FA	FC/APC
SP	SC/PC, SC/UPC	SA	SC/APC
TP	ST/PC, ST/UPC	TA	ST/APC
LP	LC/PC, LC/UPC	LA	LC/APC
MU	MU	MT	MTRJ
DN	DIN	E2	E2000
