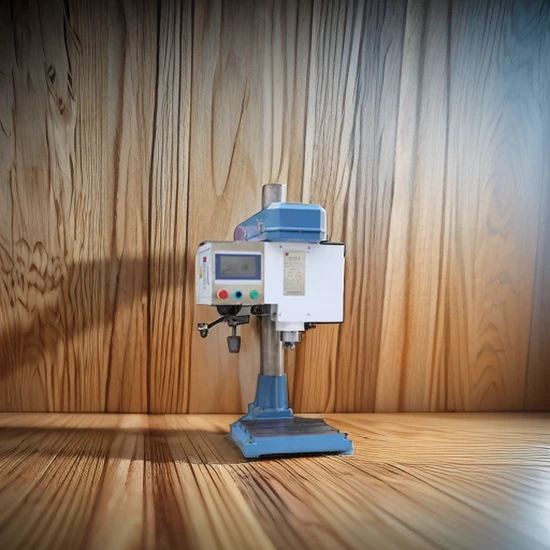

High Precision 30 CNC Drilling Machine Automatic Drilling Machine

High Precision 30 CNC Drilling Machine Automatic Drilling Machine

US$2,600.00-3,800.00 1 sets (MOQ)

Basic Info.

Model NO.
ss-sk-30
Controlling Mode
CNC
Number of Shaft
1-10
Hole Diameter
1-30mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Weight (Kg)
400 Kg
Hydrall Height
25kg/Square Centimetre(2MPa)
Distance From Spindle to Table
270mm-680mm
Power(W)
2200
Key Selling Points
Automatic
CNC or Not
Normal
Voltage
380V/220V
Spindle Taper
Mt3
Spindle Speed
1200/800/400
Max. Drilling Dia. (mm)
30 mm
Range of Spindle Speed(r.p.m)
400 - 1200 r.p.m
Weight
400kg
Spindle Travel
140mm
Trademark
Shuangshi
Origin
Zhejiang, China
HS Code
8459290000
Production Capacity
10000PCS/Year

Product Description

Product Description
The main technical parameters
Speciflation
YDZ-30
Dimension
700(L)×350(W)×820(H)
The head of the move from up and down
450mm
Spindle Diameter
75mm
Spindle Taper
MT3
spindle travel
140mm
spindle speed
1200/800/400
Motor power
2.2KW6level
Drilling capacity
1mm-30mm
Hydraulic power unit
1KW
Working pressure 20-25kg
weight
400KG

Hot Product
Company Information
FAQ
1. Can the drilling machine perform tapping operations as well?
No, the drilling machine is engineered specifically for creating precise holes, ensuring efficient performance for drilling tasks.
2. Is the spacing on the machine adjustable to suit various tasks?
Yes, the machine offers adjustable spacing, allowing it to seamlessly accommodate a wide range of applications and tasks.
3. Is the cutting tool prone to breaking easily?
No, the cutting tool is crafted for durability and robustness, ensuring it remains intact when operated correctly, thus minimizing breakage risks.
4: What information is required if we need a non-standard machine?
Please provide the following detailed information to tailor a machine to your specific needs:
1: A precise drawing of your product, highlighting all pertinent details.
2: Physical samples of your product, which will aid in achieving a thorough understanding.
3: Exact dimensions, including height, width, and thickness, to ensure accurate customization.
4: The maximum and minimum range of hole sizes needed for your applications.
5: Comprehensive details of material thickness, width, and the requisite number of drilling and tapping holes.
5: Can non-standard machines perform both tapping and drilling tasks?
Yes, non-standard machines are versatile and capable of performing both tapping and drilling functions efficiently.
6. Payment Terms
To activate the contract, a 40% deposit is required post-signature, ensuring the contract's initiation.
7. Production Arrangement
Mass production kicks off upon deposit receipt. CNC milling machines are typically ready in 20 days, whereas automatic drilling and tapping machines are prepared in approximately 15 days.
8. Packaging
For safe transportation, we highly recommend using wooden box packaging to effectively prevent any potential damage.
9. Acceptance Check Upon goods receipt, perform a thorough inspection for any packaging or product damage. Verify product quantity and accessories. Capture images and contact us immediately if any issues arise.
10. Warranty Period
Our machines include a comprehensive one-year warranty. During this time, we offer free components for non-purposeful damage and lifelong maintenance service post-warranty. After the first year, component and shipping costs apply.
We offer on-site debugging and customer training, with expenses covered by the customer. This includes airfare from China to your location, along with complimentary accommodation and meals.
The 12-month warranty begins upon machine delivery. If malfunction occurs, engineers will be dispatched within 24 hours. We continue to provide maintenance support post-warranty and supply English manuals with each CNC machine.
11. OEM Service
We welcome purchase orders that feature the customer's brand or trademark, allowing for customized branding on our products.
