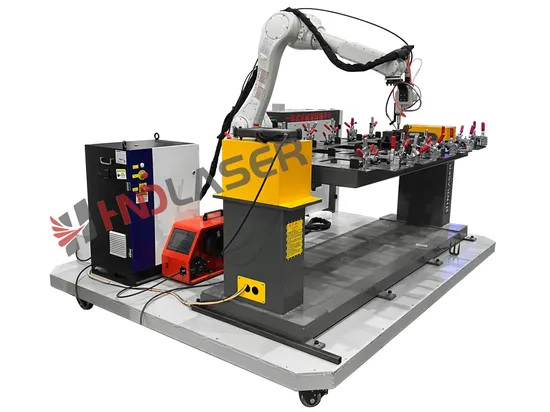

Large Steel Laser Welding Equipment Can Be Equipped with a Robot

Product Description

Experience the ultimate in laser welding with our SGS-certified machine, a testament to our commitment to quality and excellence.
(Tailored solutions to meet your unique requirements)

Step into a realm of unmatched assurance with our high-power laser welding machine, gloriously endorsed by the prestigious SGS certification. This hallmark of excellence guarantees our equipment's superior mechanical performance, while rigorously adhering to global safety and stability standards. For discerning business owners, dedicated managers, and skilled operators, this is more than just a certification-it's a steadfast promise of exceptional reliability and unwavering safety, ensuring flawless operation and absolute peace of mind with every use.

Product Description

Main Features

Modular design improves expandability as well as maintainability and reduces equipment complexity and cost

Suitable for MIG wire, no laser wire required

The Shifter can handle workpieces of different shapes and sizes, and through multi-axis rotation and tilting, it realizes the need for all-round welding and machining of various complex workpieces.

The automatic wire feed system ensures consistency of the weld material during the welding process, thus significantly improving weld quality and consistency.

Power	Material	Stainless steel	Carbon steel	Galvanized sheet	Aluminum
1000W	Max. welding thickness	2.5mm	2.5mm	2.5mm	2.5mm
1500W		3mm	3mm	3mm	2.5mm
2000W		5mm	5mm	5mm	4mm
3000W		7mm	7mm	7mm	5mm
6000W		10mm	10mm	10mm	8mm
	100% penetration with one-sided welding

Advantages & Accessories

Integrated Laser Cabinet
1.HND special model with integrated design.
2. Selection of first-line brand lasers, welding heads and chillers to ensure product stability.
3. Modular design inside the chassis, convenient for later maintenance and repair.
4. Strong customization ability, can be integrated with a variety of configuration models

Robot
Brand: HND (Chinese)
Number of axes: 6 axes
Arm span: 1.8m
Load: 20kg
Product Features
1. High-speed and high-precision, repeatable positioning accuracy ±0.04mm
2. Compact body, large arm, provide a variety of installation methods 3. Standard IP65, wrist IP67, high protection.

Robotic Systems
·
Brand: LEANTEC(Taiwan)
Input: 16CH IN
Output: 24CH OUT
Product Features

1. The most complete laser welding process package
2. Modular expansion design program, easy to expand the ground rail, positioner, etc.
3. Match the operator's operating habits, easy to operate
Parameter

Materials		Reaction
Metal	Stainless steel	√√
	Aluminum	√
	Anodized aluminum	√√
	Brass	√
	Nickel alloy	√√
	Copper	√
	Galvanized steel	√
	Gold, silver, nickel, platinum	√√
	Carbon steel	√√
	Titanium	√√
	Gold	√

Excellent Reaction: √√ Good reaction: √ Poor reaction: - Application
Focus on Exhibitions/Fairs
Plants/Teams
Certification Display
Endorsed by a renowned third party, we extend a comprehensive machine warranty service. Our dedicated team stands ready to support any inquiries or needs you may have.
Company Information
ZHANGJAGANG HNDLASER TECHNOLOGY CO.,LTD
HNDLaser Technology Co., Ltd. is a distinguished national high-tech enterprise supported by HNDLaser in Zhangjiagang. We are experts in the research, development, production, and application of state-of-the-art laser equipment, proudly encompassing Zhangjiagang HND Intelligent Equipment Co. and other illustrious enterprises.
With steadfast and substantial annual R&D investments, our products have garnered widespread market recognition, ensuring consistent production across the laser industrial spectrum. HNDLaser is deeply anchored in the philosophy of people-oriented innovation, driven by scientific and technological progress. Our relentless focus on innovation and talent cultivation serves as the cornerstone for expanding our market presence and enhancing product recognition continuously.
FAQ
Q1: What about the warranty period?
A1: Rest assured, if any challenges arise with the main components of the machine (excluding consumables) during the warranty period, we will swiftly replace or repair them at no additional cost to you.
Q2: I'm uncertain about the perfect model for my application. Could you assist in making the right choice?
A2: Of course! To provide you with the best guidance possible, kindly share this information:
(1) The specific type of material you intend to work with.
(2) The thickness specifications of the material in question.
(3) The size you envision for the weld seam.
Q3: Could you elaborate on your payment terms?
A3: We offer a variety of flexible payment methods including TT, Western Union, PayPal, LC, and even Cash, ensuring convenience for you.
Q4: Does your company provide CE certification along with other necessary clearance documentation?
A4: Certainly, we possess all the necessary original documentation. After shipping, we will promptly provide the CE document, a detailed packing list, commercial invoice, and the sales contract to ensure smooth customs clearance.
Q5: What steps should I take if I'm not familiar with the machine's operation or face issues post-receipt?
A5: Rest assured, we supply a comprehensive user manual accompanied by detailed images and a USB disk to guide you methodically, and offer monthly updates keeping you abreast of any enhancements.
Q6: What is the procedure to obtain a sample and verify the quality and results of your product?
A6: Simply dispatch your sample to us, and we will gladly perform a complimentary test to demonstrate our product's efficacy.
Q7: How quickly can I expect a quotation after making an inquiry?
A7: Your inquiry will be treated with utmost professionalism and answered with precision and care within an impressive timeframe of 12 hours.
