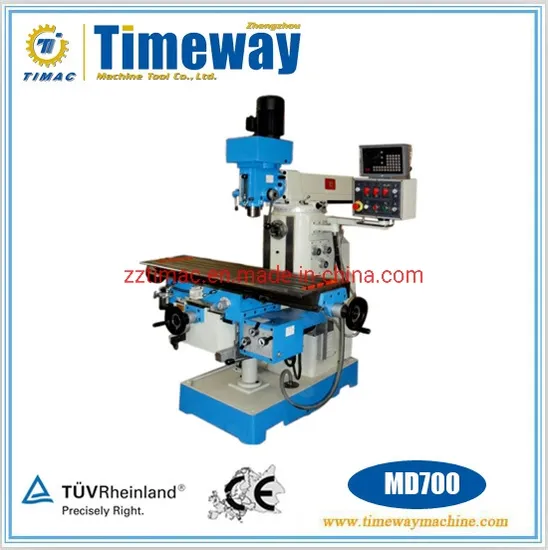

Universal Milling Drilling Machine (MD600, MD700, MD800)

Product Description

Milling Drilling Machine For Sale Made In China

PART 1---Product Description
***Features:
1. Headstock swivels ±90°;
2. Drill depth stop with display of measurement;
3. Spindle sleeve automatic feed with 3 speeds;
4. There is hand wheel to realize manual type fine feeding of spindle sleeve;
5. Hardened and ground table surface with high stability;
6. Automatic feeds on X, Y axes, motorized lifting and lowering of table on Z axis

*Standard Accessories:
Drill chuck, Mill collets, Draw bar, Machine vise, Horizontal mill arbor, Coolant system, Work lamp,
Table elevating motor, Convergent panel, Wrench, Spanner, Middle sleeve, Elevating rotary handle,
Oil collecting plate, Operation manual.
*Optional Accessories:
3-axes DRO, 58pcs clamping kits, Rotary worktable, Universal dividing head
***Parameter:

Specification	Unit	MD600	MD700	MD800
Spindle taper		ISO40(V),ISO40(H)
Diameter of quill	mm	100
Distance from spindle to table	mm	90-370		90-490
Distance from horizontal spindle to table	mm	0-280		0-400
Distance from spindle to column	mm	200-700
Spindle speed	rpm	(8steps)115-1750(V), (12steps)40-1300(H)	(8steps)60-1500(V), (12steps)40-1300(H)	(8steps)90-2000(V), (12steps)40-1300(H)
Spindle travel	mm	120
Quill feed	mm	------	(3steps)0.15, 0.08, 0.25
Max. drilling capacity of auto-feeding	mm	------	12	14
Head swivel		±90º
Table size	mm	1250×320		1250(1370)×320
Table travel (Longitudinal/Cross/Vertical)	mm	600/300/280		600(720)/300/400
X,Y axes feed speed	mm/min	22-555
X,Y axes rapid feed speed	mm/min	1080
Z axis rapid elevate speed	mm/min	590
Z axis rapid elevate motor power	w	750
Max. weight of workpiece	kg	200		300
T-slot(No./width/distance)	mm	3/14/70
Main motor	kw	1.5(V),2.2(H)		2.2(V),2.2(H)
X,Y axes auto-feed drive motor	w	750
Coolant pump power	w	40
Overall dimension	mm	1780×1500×2100		1700×1500×2270
Net/gross weight	kg	1450/1550		1550/1650

Part 2---Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).


Part 3---FAQ
1. Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.
2. Payment terms: T/T, L/C, Western Union payment terms is acceptable.
3. Delivery time: 60~90days....(vary as the machine's different size and complexible).
4. Warranty period: 12 months after delivery.
(Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price). Packaging & Shipping
