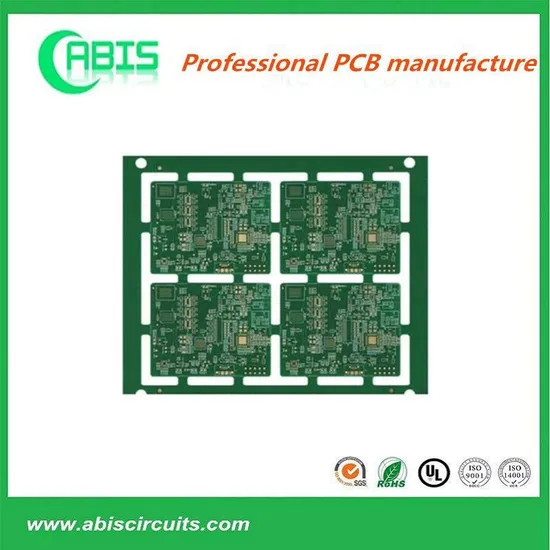

Mechanically Circuit Board Multilayer PCB for Industrial Control

Product Description

Mechanically Circuit Board Multilayer PCB for Industrial Control
Technical & Capability

Raw material	FR-4(High TG),CEM-1,CEM-3,Rogers,Teflon etc
Layer	1-20 Layer
Min.Line width/space	3mil/3mil(0.075mm/0.075mm)
Min.hole size	0.1mm(drilling hole)
Max.Board size	1200mm*600mm
Finished board thickness	0.2mm-6.0mm
Copper foil thickness	18um-280um(0.5OZ-8OZ)
NPTH Tolerance	+/-0.075mm
NPTH Tolerance	+/-0.05mm
Outline Tolerance	+/-0.13mm
Surface finished	HASL/HASL lead free,Immersion Gold(ENIG)/Tin/Silver,OSP,gold plating/finger,Carbon ink,Peelable mask
Impendance Control Tolerance	+/-10%
Production capability	720,000 s.q.m/month

Our Advantages
High-end euipment-high speed Pick and Place Machines that can process about 25,000 SMD components per hourHigh efficient supply ability 60K Sqm monthly-Offers low volume and on-demand PCB production, also large-scale productionProfessional engineering team-40 engineers and their own tooling house, strong at OEM. Offers two easy options: Custom and Standard-In-depth knowledge of IPC Class II and III StandardsWe provide a comprehensive turn-key EMS service to customers who want us to assemble the PCB into PCBA, including prototypes, NPI project, small and medium volume. We are also able to source all components for your PCB assembly project. Our engineers and sourcing team have rich experience in supply chain and EMS industry, with deep knowledges in SMT assembly allowing to resolve all the production issues. Our service is cost-effective, flexible, and reliable. We have satisfied customers across many industries including medical, industrial, automotive and consumer electronics.
Quality Control
-Advanced equipment LIST

AOI Testing	Checks for solder paste Checks for components down to 0201 Checks for missing components, offset, incorrect parts, polarity
X-Ray Inspection	X-Ray provides high-resolution inspection of: BGAs/Micro BGAs/Chip scale packages /Bare boards
In-Circuit Testing	In-Circuit Testing is commonly used in conjunction with AOI minimizing functional defects caused by component problems.
Power-up Test	Advanced Function TestFlash Device ProgrammingFunctional testing

IOC incoming inspectionSPI solder paste inspectionOnline AOI inspectionSMT first article inspectionExternal assessmentX-RAY-welding inspectionBGA device reworkQA inspectionAnti-static warehousing and shipment-Persue 0% complaint on quality
All department implements according to ISO and the related dept has to provide 8D report if any board scrapped to defective.All the outgoing boards have to be 100% electronic tested, impedance tested and soldering.Visual inspected, we make the inspect microsection before shipment.Train the mindset of employees and our enterprise culture, make they happy with their work and our company, it's helpful for them to produce good quality products.High quality raw material (Shengyi FR4, ITEQ, Taiyo Solder Mask Ink etc.)The AOI could inspect the whole set, boards are inspected after each process
Q/T Lead Time

Category	Quickest Lead Time	Normal Lead Time
Double sideds	24hrs	120hrs
4 Layers	48hrs	172hrs
6 Layers	72hrs	192hrs
8 Layers	96hrs	212hrs
10 Layers	120hrs	268hrs
12 Layers	120hrs	280hrs
14 Layers	144hrs	292hrs
16-20 Layers	Depends on the specific requirements
Above 20 Layers	Depends on the specific requirements

Pre-Sale and After-Sale Service1 Hour quotation
2 hours complaint feedback
7*24 hour technical support
7*24 order service
7*24 hour delivery
7*24 production run
