CNC Pipe Threading Lathe Qk1322 Automatic Machine Tool Manufacturer CNC Lathe Machine Industrial Lathe Machine

Product Description

Product Description

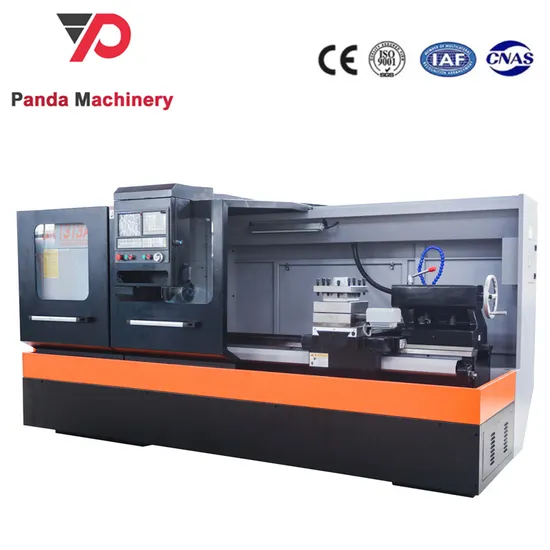

CNC Pipe Threading lathe QK1322 Automatic Machine Tool manufacturer CNC Lathe Machine Industrial Lathe Machine
CNC PIPE THRADING LATHE APPLICATION This series CNC pipe threading lathe is meainly designed for processing internal and external pipe threads, including metric,inch and taper threads.
Features:
The main performance characteristics: Big spindle bore and double chuck allows clamp and process big diameter pipes; Integral machine bed adopts high strength iron to relize high rigidity and precision; Ultrasonic requency quenched guide-ways are hard enough for good wear-resistance; Equiped with taper guide bar device this enables the machine to process taper threads. Application: Heavy duty pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.

Item		Unit	QK1322	QK1325
Nc System			Standard equipment:GSK980TC3 Alternative configuration:FANUC 0i-TF;SIMENS 808D;KND K1000Ti;GSK980TDC
Max dia.swing over bed		mm	670	800
Max dia.swing over cross slide		mm	370	535
Max.length of work-piece		mm	1500	1500
Pipe threading range		mm	Φ50-220	Φ50-250
Width of bed		mm	550	550
Spindle bore		mm	225	255
Spindle center height		mm	322	400
Power of spindle motor		KW	11	15
Mode of spindle speed			Two gears, smooth adjustment	Two gears, smooth adjustment
Range of spindle speed		r/min	L:25-120 H:100-500	L:15-100 H:100-350
Max.traverse of X/Z		mm	X:350 Z:1250	X:420 Z:1250
X/Z rapid traverse		mm/min	4000/6000	4000/6000
Tailstock quill	Diameter	mm	100	100
	Travel	mm	250	250
	Taper		Morse NO.5	Morse NO.6
Turret	Model		HAK21240	HAK21240
	Tool post type		Vertical four-station	Vertical four-station
	Section of tool shank	mm	32×32	32×32
	Turret indexing time	S	2.6	2.6
Chuck			K11-500 three jaw chuck	K11-630 three jaw chuck
Positioning accuracy		mm	0.02	0.02
Repositioning accuracy		mm	0.01	0.01
Overall dimensions(L*W*H)		mm	3800×1900×1900	3800×1900×1900
Machine weight		T	5.4	5.5

STANDARD ACCESSORIES	OPTIONAL ACCESSORIES
Siemens controller, NC turret, automatic lubrication, coolant pump, semi-shield	Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield

Detailed Photos
CNC : GSK980TC3, servo motor,Servo driver 320mm Manual 3 jaw chuck Manual tail stock 4 station electric tool turret Automatic lubrication system, cooling system.Lighting system Standard packing list, Tool box 380v 50hz 3phases Sample Products
