Dx Wall / Roof Panel Foam Insulation Machine

Dx Wall / Roof Panel Foam Insulation Machine

US$7,850.00 1 Set (MOQ)

Basic Info.

Model NO.
828-207-28
Certification
CE, ISO, ISO9001: 2000, CE, SGS
Condition
New
Customized
Customized
Usage
Roof, Wall
Transmission Method
Hydraulic Pressure
Effective
Easy Operation
Motor Power
4kw
Forming Station
13 Stations
Medium Plate Thickness
14mm
Main Frame
300h
Diameter of Roller
75mm
PLC
Delta Brand
Type
Roll Forming Machine
Method
Roll Forming Machine
Transport Package
One 20 Feet Container for Loading Machine
Specification
CE, SGS
Trademark
DIXIN
Origin
Cangzhou City, Hebei Province, China
HS Code
84552210
Production Capacity
20sets/Per Month

Product Description

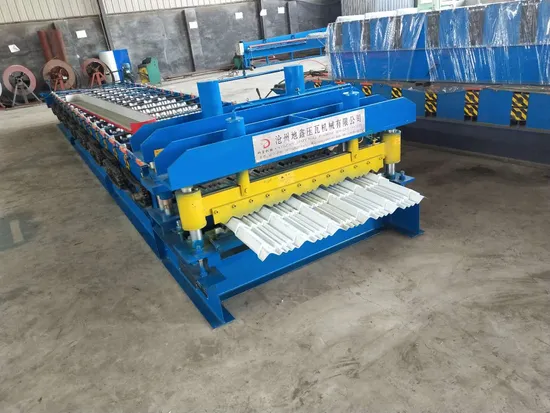

DIXIN export standard roofing sheet making machine
Cangzhou Dixin Roll Forming Machine Co.,Ltd which has 8 years export experience, we ever sold machines all over the world, such as: US, UK, Canada, Russia, Italy, Brazil, Azerbaijan, Greece...
Machine parameters of roll forming machine

Technical parameter
Item Specification

Raw Material
Pre-painted steel coil & galvanized coils
0.3-0.8
235-550
Roller material 45# steel , coated with Chrome
Shaft for rollers shaft with 75mm,processed with cylindrical grinder
Forming speed(m/min) About 8-12
Output speed(m/min) About 12 for 6m length sheet
Speed adjusting mode Mitsubishi frequency transformer
Roller drive Decelerating motor + Chain drive
Cutting mode automatic hydraulic cut to length
Cutter material Cr12 mould steel
Length measurement Nemicon Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Main motor power(kw) 4KW
Total power(kw) 8 KW

Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table

Components of machine
Decoiler (manual decoiler and hydraulic decoiler for option) 1set
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table (auto. Stacker for option) 1set


Other spec.
1. Size: about 6*1.5*1.5m (L*W*H)
2. Weight: About 2.5 ton
3. Decoiler Max. Capacity: 5000kgs
4. Hydraulic station power: About 4Kw (Depend on final design)
5. Cutting length: Cut-to-length
Packing:
1. One 20feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery: about 30 days.

Where is your factory located ? How can I visit you ?
Dixin Roll forming machinery is located at Industrial Zone of Botou , Hebei Province of China. Welcome to visit us by:

1.Fly to BEIJING or TIANJIN Airport, then take high speed train from BEIJING NAN to CANGZHOU XI, about 1 hour, I will pick up you there.
2.Fly to SHANGHAI Airport, then take high speed train from SHANGHAI HONGQIAO to CANGZHOUXI, about 4.5 hour,I will pick up you there.
if u have any interest,please contact me any time:
