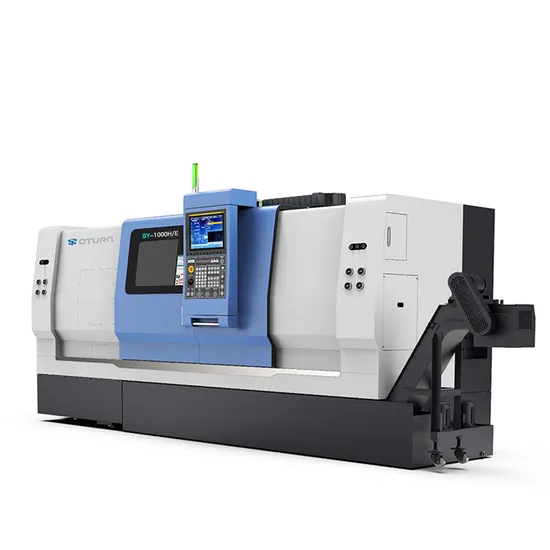

High Accuracy and Stability Oturncnc Slant Bed CNC Lathe Esy1000h

Product Description

Product Description
The machine adopts an optimized 30-degree inclined bed structure design, and has high precision, super rigidity and excellent cutting stability. High-strength HT300 cast iron one-piece strong structure bed, the application of finite element analysis, the overall mechanical rigidity and stability are excellent, and can maintain long-term reliable precision, improve processing stability and tool life, stress relief treatment improves precision stability, High-strength hard rail structure, the transmission system adopts screw pre-tensioning design to improve the performance of reflecting rigidity. Main features of this machine tool: 1. The spindle unit is an independent sleeve type. The spindle system has undergone strict dynamic balance testing and has high precision, good accuracy retention, small thermal deformation, and good thermal stability. The maximum speed can reach 2000rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing with a combined angular contact ball bearing structure. The optimal span two-point balance support design can withstand radial and axial loads, and can also provide users with high-speed precision work. It can also perform low-speed and heavy cutting, and is especially suitable for mass production of products with complex shapes, high precision requirements, and high smoothness.
2. High rigidity servo power turret. It helps the servo turret's rapid and accurate tool changing performance, and when coupled with the power milling of a high-speed power axis, it achieves excellent turning and milling combined processing capabilities. The tool holder is installed using a high-rigidity BMT installation interface, and the power transmission shaft is driven by a servo spindle motor.
3. The machine tool is equipped with hard rail guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best
It has the best precision and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method, which can minimize the thermal displacement and greatly improve the processing accuracy.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
5. The hydraulic tailstock has a high rigidity structure and an integral tailstock, which can eliminate vibration and improve stability. The sleeve expansion and contraction is realized by hydraulic cylinder, which is convenient, fast and reliable.
6. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various components can be designed and installed according to the special requirements of the user. A special fixture. Product Parameters

Name	Unit	SY1000H/E
Max. swing diameter over bed	mm	Φ640
Max. processing diameter	mm	Φ570
Max. swing diameter over cross slide	mm	Ф350
Max. processing length	mm	930
Spindle nose	/	A2-8
Spindle hole diameter	mm	Ф87
Bar diameter	mm	Ф75
Max. speed of spindle	rpm	2500
Chuck size	Inch	10
Spindle motor power	kw	26KW
Motor torque pulley ratio; 1:1.5	Nm	215/354
X/Z travel	mm	330/980
X/Z specification of shaft guide		Box way
X/Z shaft motor torque	Nm	18.6
X/Z motor power	KW	2.9
X/Z axis moving fast	m/min	20/20
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Servo turret	/	12T
The specification of outer diameter tool holder	mm	32*32
The specification of inner diameter tool holder	mm	Ф50
The adjacent tool change time	sec	0.15
Programmable hydraulic tail seat		Hydraulic
The biggest stroke of the tail	mm	930
Morse Slideway	type	Mosh5#
Sleeve diameter	mm	Ф100
Sleeve travel	mm	80
Machine size	m	3900*2270*2150
Machine Weight	kg	6800
Cutting fluid tank volume	L	250
Hydraulic unit box volume	L	40
Hydraulic oil pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750
