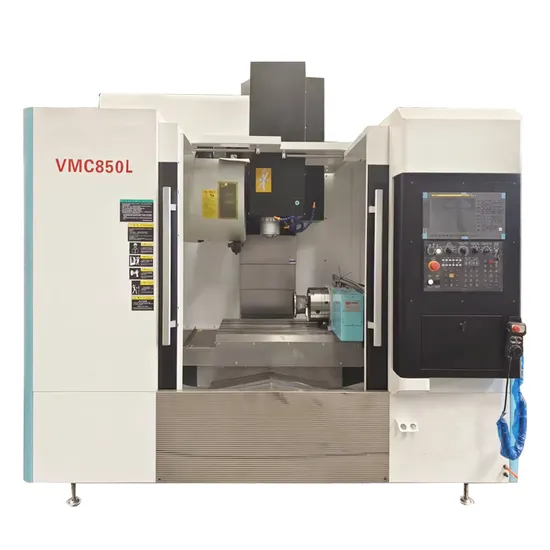

CNC Machining Center Fanuc Vmc Vertical 4 Axis CNC Milling Machine for Metal Vmc850 Fresadora CNC Metal
| US$28,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC850
Type
Tool Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Vertical Machining Center
Machine Type
CNC Milling Machine
CNC or Not
CNC Automatic
Spindles Clean The Air
Centralized Automatic Feed Lubrication System
Keyword
Vertical Machine Center, CNC Milling Machine
10.4 "Display
Tricolor Warning Light
Servo Transformer
Separate Handwheel
Foundation Gasket and Adjusting Bolt
RS232 Interface
Random Technical Document
Three Ball Type Linear Guide Rail
CNC Milling Machine
CNC Vertical Machining Center Vmc Machine
Production Capacity
30 Set/Month
Product Description
Cnc Machining Center Fanuc VMC Vertical 4 Axis Cnc Milling Machine For Metal VMC850 Fresadora Cnc Metal # Robust construction for efficient machining.# HIWIN linear rail guide system for rapid feeds upto 8000mm/min.
# NSK high-precision bearing preloaded for ballscrews on all 3 axis.
# Armless(Umbrella)Type ATC(16-20 tools) Or Mechanical hand 24-station tool magazine as Optional.
#The rotary table(4thaxis,4+5th axis)as optional.
# Integrated coolant system.
# Chip conveyor and purge system for optimum chipremoval.
# Easy accessibility of work table foreasy setup and tooling.
# Enclosed work space ensures safe and contamination-free work.
# Different Operating system as optional: Siemens, Fanuc, Mitsubishi, GSK, Syntec. KN
Technical parameter
| Model | VMC650B | VMC850B | VMC1055B | VMC1370B | VMC1580B | VMC1890B |
| Travel(XAxis)(mm) | 650 | 850 | 1000 | 1300 | 1500 | 1800 |
| Travel(YAxis)(mm) | 500 | 550 | 550 | 700 | 800 | 900 |
| Travel (ZAxis)(mm) | 500 | 550 | 560 | 610 | 700 | 680(800) |
| Distance: working table to spindle nose(mm) | 150-650 | 120-740 | 150-710 | 140-750 | 140-840 | 160-840 |
| Distance:spindle to Vertical Guideway(mm) | 555 | 575 | 610 | 765 | 860 | 1060 |
| Working table size(mm) | 900X420 | 1000X550 | 1200X550 | 1400X710 | 1700X800 | 2000X900 |
| Max.load on table(kg) | 500 | 600 | 800 | 1000 | 1500 | 1600 |
| T shape groove | 3-18X100 | 5-18X100 | 5-18X100 | 5-22X120 | 5-22X135 | 5-22X160 |
| Taper hole of spindle | BT40- φ120 | BT40- φ150 | BT40- φ150 | BT40- φ150 /BT50- φ155 | BT50-- φ155 | BT50-- φ155 |
| Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 | 6000 | 6000 |
| Spindle power (kw) | 5.5/7.5 | 7.5/11 | 11/15 | 11/15 | 15/18.5 | 15/18.5 |
| Power(XYZ)(kw) | 1.5 | 2 | 3 | 3.5 | 4.5 | 4.5 |
| Rapid moving speed X/Y/Z(m/min) | 24/24/18 | 24/24/18 | 24/24/18 | 24/24/18 | 24/24/18 | 24/24/18 |
| Feeding speed(mm/min) | 20-5000 | 20-5000 | 20-5000 | 20-5000 | 20-5000 | 20-5000 |
| XY ZPositioning accuracy (mm) | 0.012 | 0.012 | 0.012 | 0.012 | 0.012 | 0.012 |
| XY ZRepositioning accuracy (mm) | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 |
| Dimension(mm) | 2400X2050 X2030 | 2700X2150 X2600 | 3200X2500 X3000 | 3700X2600 X2515 | 4310X2810 X2780 | 4800X3460 X4000 |
| Weight(Kg) | 4000 | 5000 | 6500 | 8500 | 12000 | 17000 |
