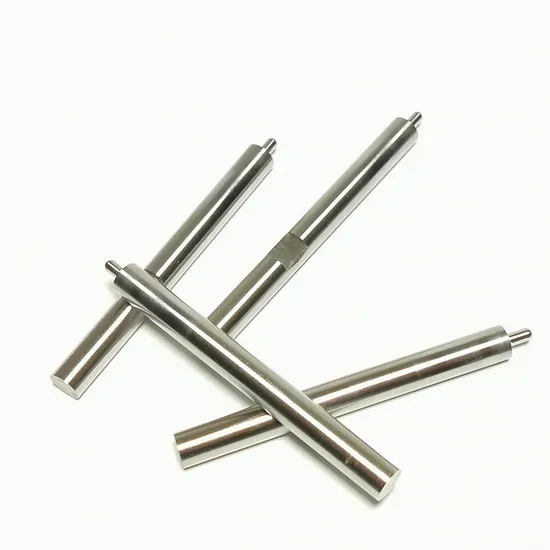

DIN Standard Mold Parts All Kinds of Standard Pointed Dies Custom Punch Punches

Product Description

Product Name	punch pin die
Materials	45#,S50C,CR12/CR12MOV,SKD11,DC53,SKH-9,SKH-51,SKH-55, ASP23, ASP30, ASP60, CD650, 2210, YG15, YG8, V30, KD20 etc
Standard	Standard Hardware/ Plastic Parts as per MISUMI, DME, HASCO, FIBRO, CUMSA, STRACK, DAYTON NON-Standard parts can be designed or made customized
Hardness	HRC58-60,HRC64-66,HRC88-90
Tolerance	±0.001mm
Heat treatment method	High frequency quenching, vacuum heat treatment, quenching and tempering treatment
Surface treatment method	Black-plated titanium | Yellow-plated titanium | Chrome-plated | Nickel-plated | P-Tride™ | P-Wear™ | P-Wear Extreme™ | MoST™ | Alcrona™ | TiN | TiCN | TiAIN Balinit C | Electroless Nickel | CrN
Lead Time	Sampling: 3-5 workdays,Normal making: 5-10 workdays,Complex design/making: 10-18 workdays

Wear resistant surface treatments offer great benefit to stamping tools when applied appropriately. While there are many good surface treatments and processes to choose from, Physical Vapor Deposition (PVD) coatings are ideally suited and typically the best option to use on precision slip and press fit punch components.
Selecting the right surface treatment and substrate tool steel combination is critical for achieving optimum tool life. PVD coatings provide excellent abrasion and galling resistance while maintaining the integrity of many substrate tool steels. These coatings work best when applied to high speed tool steels such as M-2, PM-M4, and T-15. A few select cold work tool steel grades can also be PVD coated successfully as long as they maintain at least a 60 HRC when tempered at or above 1,000 degrees Fahrenheit.
It is important to note that the PVD process is a line of sight process, which may limit the ability to coat interior contours and features. For these applications, nitriding, which case-hardens all exposed surfaces, is recommended.
Below is a list of standard surface treatments offered. Additional coatings are available upon request.
