Top Quality Rubber Mixer for Sale

Product Description

•Qingdao HUICAI Cooperate Sincerely With You •

MACHINE APPLICATION:
It is used for rubber mixing, warming, sheeting and plastic mixing, etc.

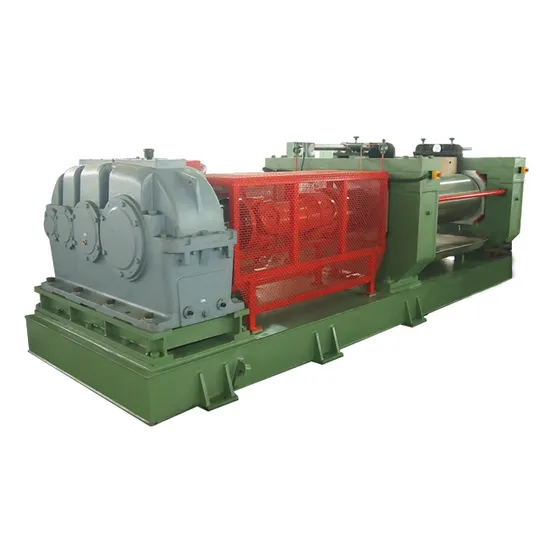

MACHINE SHOW:
[ XK-160 ]
[ XK-250 ]
[ XK-300 ]
[ XK-360 ]
[ XK-400 ]
[ XK-450 ]
[ XK-550 ]
[ XK-560 ]
[ XK-610 ]
We have two type rubber mixing mill:
One is nylon bush with soft gear reducer, the advantage: Low cost.
Another is cooper bush with hardened gear reducer, the advantage: has lower noisy and long use life.
STOCK BLENDER PICTURE:
(1)Stock blender is optional.
(2) Stock blender is usually installed on the top of bigger mixing mill.
(3) Stock blender not only can improve the working efficiency, but also can mix the materials more fully.
(1)one year guarantee for whole machine
(2)24 hours technical support by email or calling or door-to-door service
TECHNICAL PARAMETERS:

Model		XK-160	XK-250	XK-300	XK-360	XK-400	XK-450	XK-560
Roll diameter(mm)		φ160	φ250	φ300	φ360	φ400	φ450	φ560
Working length of roll(mm)		320	620	750	900	1000	1200	1530
Linear speed of front roll(m/min)		11.24	14.4	15.1	16.25	18.65	24.5	29.09
Speed ratio of front & back roll		1:1.35	1:1.17	1:1.27	1:1.25	1:1.27	1:1.27	1:1.2
Max. roll distance(mm)		4.5	8	8	10	10	15	20
Feeding capacity per time(kg)		1-2	10-15	15-20	20-25	18-35	25-50	50-65
Driving motor power(kw)		7.5	18.5	22	30	37	55	75
Outside dimension(mm)	Length	1080	3400	3580	3780	4250	5200	6120
	Width	796	1500	1550	1850	1850	2380	2282
	Height	1415	1500	1695	1740	1870	1770	2000

(1) Founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) A one-year warranty and long-term technical support;
(5) Supply of all kinds of rubber machinery: vulcanizing machine, rubber mixer, rubber refiner, rubber kneader, rubber injection molding machine, vacuum hot press molding machine, jaw vulcanizing machine, precuring equipment, hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line,etc.
(6) We have import and export rights, the products are exported to many countries, more than 40.
(7) 2012 was awarded the "AAA grade credit enterprise" and "integrity enterprises in Qingdao City," the title.

♥ If you are interested in our products, please contact me ♥
