5 Gallon Mineral Water Filling Line / 20L 19L 3 gallon bottle Bottling Water Production Line

Product Description

Product Description
5 Gallon Mineral Water Filling Line / Bottling Water Production Line
Product Description
Brief introduction :
QGF-450 5 gallon drinking water filling machine is mainframe for produce 5 gallon barreled water. It consists of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping through several washing , fit quantify filling and auto capping. The whole working process was control by PLC, realize stability washing effect, accurate filling capacity and perfect capping effect.

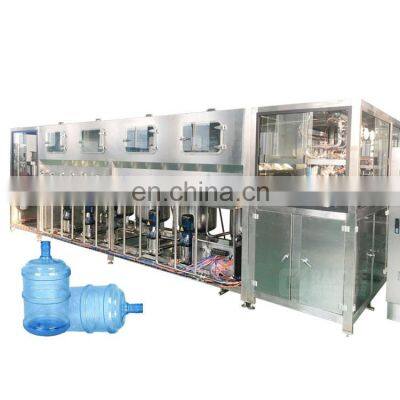

Machine picture:

QGF-450 5 Gallon / 20liter water filling line with washing system
No.	Machine name	Model	Size(mm)
1	Automatic decapper	BG-1	850x650x1800
2	Automatic interior brushing machine	STN-3	1300*800*2140
3	Automatic exterior brushing machine	STW-3	1550*1100*2140
4	QGF-450 main washing filling capping machine	QGF-450	5300×1580×2000
5	Light checker	DJ-1	300×700×1000
6	Shrinking machine		900x700x1200
7	Feeding conveyor belt	Plastic chain
8	Products outlet conveyor	SUS304
9	Roller conveyor	SUS304	2m
10	Laser / ink jet printer	20W	340*220*100

Details

	De-capping machine: This decapping machine is designed for 3 & 5 gallon bottle in water production line. It's used to pull out the cap of recycling bottle before rinsing.
Automatic interior and exterior brushing machine: The machine is used for cleaning barrel outside inside before filling process. It's used for allround cleaning the bottle, significantly improves cleaning efficiency.
	Automatic up-loader: Automatically push the prepared empty bottle into the filling machine, put the bottle into the holder inside the washer station.
5 Gallon Water Bottle Filling Machine: This filling machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water, pure water etc.
	Light Checker With two light pipes, inspect bottle water after filling function.
Cap Heat Shrink Machine This cap heat shrink machine is used to shrink the plastic label on the 3& 5 gallon caps. It adopted good quality imported stainless steel, simply operation and working smoothly.
	Automatic barrel bagging machine: Automatic film feeding, feed, bag, sealing once completed, save manpower, improve efficiency, and realize unmanned operation docking production line. Teflon anti-stick coating alloy thermostatic sealing knife, sealing temperature is extremely sensitive and accurate, it can be arbitrarily set, sealing wire is not easy to crack, no edges, sealing more beautiful.
Bottle conveyor system: Including empty feeding system, plastic chain full barrel conveyor system, SUS34 material

Company information
Workshop detail
Our exhibition
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
