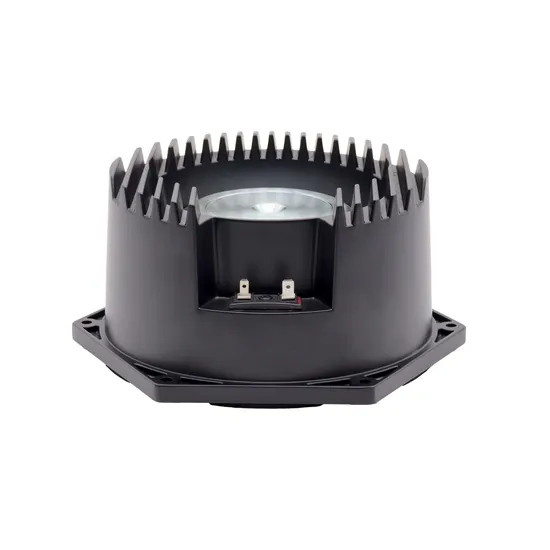

8′′ Seal Midrange Speakers Neodymium 16ohm/100dB/1200W 8inch If Speaker OEM

Product Description

8'' Seal Midrange Speakers Neodymium 16ohm/100db/1200W 8inch IF Speaker OEM Applicable use Use for pro DJ speakers, pro PA speakers, pro karaoke speakers, live sound speakers, fixed installation speakers, studio monitors and home audio speakers. Product Paramenters

SPECIFICATIONS
TYPE	MIDRANGE
Nominal Diameter	210/8.5	mm/in
Rated impedance	16	ohm
AES Power Handing	600	Watts
Peak Power Handing	1200	Watts
Sensitivity	100	dB
Frequency Range	250-2000	Hz
Voice Coil Diameter	65/2.5	mm/in
Winding Material	Aluminium
Former Material	Glass Fibre
Winding Depth	13/0.51	mm/in
Megnetic Gap Depth	12/0.47	mm/in
Megnetic Material	Neodymium Ring

THIELE & SMALL PARAMETERS
Resonance frequency	Fs	260	Hz
Dc resistance	Re	10	ohm
Mechanical factor	Qms	6.38
Electrical factor	Qes	0.58
Total factor	Qts	0.53
BL factor	Bl	27.4	T.M
Effective Moving mass	Mms	26	g
Effective Cas air load	Vas	0.9	liters
Effective piston area	Sd	219	cm2
Inductance	L1kHz	0.13	mh
Max linear excursion	Xmax	±3.3	mm
	EBP	446	Hz

MOUNTING AND SHIPPING
Overall Diameter	240/9.4	mm/in
Bolt Circle Diameter	220/8.66	mm/in
Mount Baffle Cut-out	202/7.95	mm/in
Speaker Depth	115/4.52	mm/in
Flange And Gasket Thickness	15/0.59	mm/in
N.W. (1 pc)	4.7	kg
G.W.(1 pcs)	5.9	kg
Shipping Size (1 pcs)	290x290x160 mm	11.4x11.4x6.3 in
