AC System and DC System Insulation Monitoring Device Relay for Insulation Ground Fault Monitoring

AC System and DC System Insulation Monitoring Device Relay for Insulation Ground Fault Monitoring

US$70.00-100.00 1 Piece (MOQ)

Basic Info.

Model NO.
BIM-CH1
Phase
3
Electricity Type
Dc
Number of Pole
3
Load
Medium Power Relay
Protective Characteristics
Enclosed Relay
Action Principle
Electronic Type
Size
Miniature
Type
Electric Parameter Relay
DC Voltage Range
0V~1000V
off-Line Pressure Test
<2mA
Standard
IEC 61851-23 (2014-03):2014-11
Humidity
85%
Insulation Resistance Measurement Range
1KΩ~10mΩ
Transport Package
Carton
Specification
10*10cm
Trademark
Blue Jay
Origin
China
Production Capacity
1000PCS Per Month

Product Description

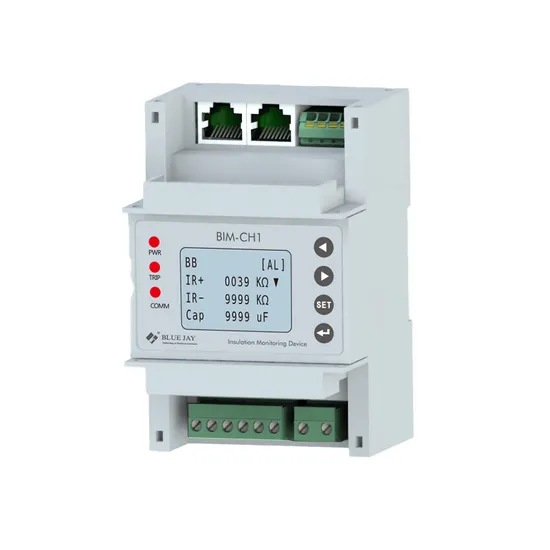

The BIM-CH1 monitors the insulation resistance of DC systems (IT systems) devices up to DC 0- 1000V. BIM-CH1 has insulation monitoring start and stop functions. After insulation monitoring is turned on, it can real time monitor the insulation resistance of the positive and negative poles to the ground. The monitoring results are not affected by DC voltage fluctuations and the symmetry of the insulation resistance of the positive and negative poles.
BIM-CH1 is equipped with RS485 /Modbus communication, which can remotely monitor the system status. BIM-CH1 uses two working principles for monitoring: unbalanced bridge method and balanced bridge method, allowing continuous monitoring of voltage and resistance values. Optional current sensors or temperature sensors can be configured for current and temperature measurements. Feature
Adaptive capacitance to ground; Widely insulation monitoring range (100V~1000VDC); Monitoring the insulation resistance for unearthed DC systems: 1KΩ~10MΩ; Measured value indication via a multi-functional LCD display; Automatic device self-test with disconnection monitoring; DC voltage reverse connection alarm function; RS485 communication, MODBUS RTU protocol; Selectable N/C or N/O relay operation; Password protection to prevent unauthorized parameter changes; Optional temperature sensor for system temperature measurement. Specification
Parameter Value
Power supply 10-30VDC, Power 3w
DC voltage range 100V~1000V
DC voltage
measurement accuracy
≤2V+0.3%
Insulation resistance
measurement range
1KΩ~10MΩ
(DC System voltage:100V~1000V)
Insulation monitoring accuracy
((When :DC voltage:100V-1000V)
CY range Resistance range Accuracy
0~0.8μF ≤60kΩ ≤3kΩ
60kΩ<R≤1MΩ ≤5%
0.8μF ~3μF ≤60kΩ ≤6kΩ
60kΩ<R≤1MΩ ≤20%
Insulation resistance value
update time after turning on
After insulation monitoring is turned on, the time until the effective resistance value can be read for the first time 0.7s~2s
Insulation resistance value
update time
Switch the insulation resistance until the module can read the switched insulation resistance value. 0.5s~3s
Insulation monitoring function switching times 50*105 times
Off-line pressure test <2mA
Standard IEC 61557-8:2018
Humidity 85%
Storage temperature - 40°C ~125°C
Operating temperature - 40°C ~75°C
Application
Company Profile

Certifications
Our Service
FAQ
