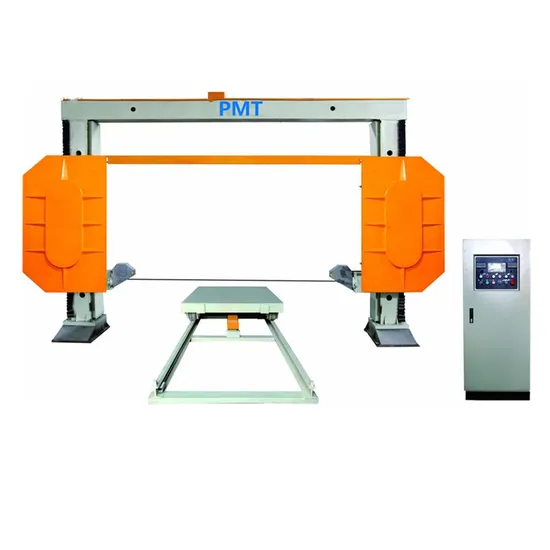

CNC Diamond Wire Saw Profiling Special Shape Machine for Stone Block Cutting

Product Description

ApplicationCNC-2000/2500/3000 Mono wire cutting machine ( rope saw ) function: Cutting column slabs, semi circular slabs, English letters, and other diversified compllicated special shape. Materials the wire saw machine can cut include marble, granite, natural stone etc.
Marble Granite CNC Diamond Wire Saw Stone Cutting Machine CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes. 1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision. 2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts. 3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel, guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle. 4. Worktable is running by lead screw and railway. 5. There has automatic alarm if wire broken. 6. Aluminum wheel diameter is 1600mm. One fly wheel slide through sheave, oil pump control rope tension. Keywords: Stone machine, stone cutting machine, marble cutter, wire cutting machine, mono wire cutting machineTechnical Parameter

Parameter	Unit	CNC-2000	CNC-2500	CNC-3000
Max processing size (L*W*H)	mm	3000*2000*1500	3000*2500*1500	3000*3000*1500
Dimension of worktable	mm	2500*1300	2500*1300	2500*1300
Main motor	Kw	7.5	7.5	7.5
Gross motor	Kw	11	11	11
Outline dimension(L*W*H)	mm	6800*6200*3800	7800*6200*3800	8800*6200*3800
Gross weight	Kg	5000	5500	6000
Water consumption	M3/h	4	4	4
