Product Description
The heavy duty high precision 45-90 degree woodworking sliding table machine with scoring blade is the main product in our company, especially equipped with European style dust hood to increase efficiency.
This saw is destined to cut MDF, HDF ,partical panel ,solid wood panel, chipboard, ABS board, PVC board, organic glass board and other board which have the similar structure and hardness. It is the necessary working tool for furniture production and decoration industry.
It is composed of the body, sliding table, support for sliding table, fixed table, main saw blade, scoring blade, up & down system,the transverse and vertical guide plate, etc. The sliding table carriage is linear structure, exact and durable and made of high-strength extruded aluminum alloy, sliding table is high in strength and won't be bent. With oxidation treatment, sliding table surface is beautiful and enduring.
ZD400T
Detailed Photos
The European style dust hood is specially equipped in this machine.
The saw blade protection allows the operator to visualize the panel while cutting and increases the dust extraction capacity.
The cutting assembly of the sliding table saw was projected to assure a high quality and precise cut . With 5.5kw for the saw blade and 1.1kw for scoring blades .

European style double layers high strength Aluminum profile sliding table can support the larger panels , with high precision .

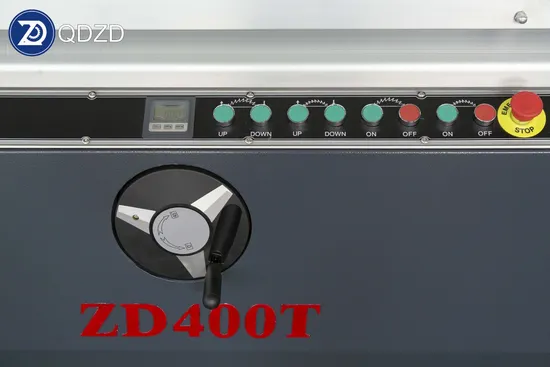

The control panel is one of our distinctive features
Humanized design and easy to operate control panel . Auto lifting of the main and scoring blades digital indicator for angles .

The left one is independent electric box , which is dustproof and can low rate of power failure . Top quality electric parts more sensitive and longer lifetime.
Main ruler
Made of aluminum ensure the cutting precision , strength saving the baffle plate is enlarged , the olare is firm , the ruler can be placed on both sides , and the pushing plate is flexible.


Product Parameters

Dimension of sliding table	3200x415 mm
Gross cut capacity	3200 mm
Width of cut between saw blade and rip fence	1250 mm
Tilting saw group	0-45°
Diameter of main saw blade	400 mm
Max cutting height 90°/ 45°	120mm/80mm
Speed of main saw spindle	3000/4000/5000 r.p.m
Main saw motor power	5.5 kw
Main spindle diameter	30 mm
Diameter of scoring saw blade	120 mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1 kw
Scoring saw spindle diameter	22 mm
Gross weight	1100 KGS
Overall dimension	3250x3150x900 mm

There are more sliding table saw machine in our company for you to choose freely, and the parameters are as below.

medel	ZD350	ZDV6	ZDV8D
Dimension of sliding table	3200x388mm	3200x388 mm	3200x388 mm
Gross cut capacity	3200 mm	3200 mm	3200 mm
Width of cut between saw blade and rip fence	1250 mm	1250 mm	1250 mm
Tilting saw group	0-45°	0-45°	0-45°
Diameter of main saw blade	350 mm	300 mm	350 mm
Max cutting height 90°/ 45°	100 mm/65 mm	80/55 mm	80/55mm
Speed of main saw spindle	4000/6000 r.p.m	4000/6000 r.p.m	4000/6000 r.p.m
Main saw motor power	5.5 kw	5.5 kw	5.5 kw
Main spindle diameter	30 mm	30 mm	30 mm
Diameter of scoring saw blade	120 mm	120 mm	120 mm
Speed of scoring saw spindle	8000 r.p.m	8000 r.p.m	8000 r.p.m
Scoring saw motor power	1.1 kw	1.1 kw	1.1 kw
Scoring saw spindle diameter	20 mm	20 mm	20 mm
Gross weight	1050 KGS	850 KGS	850 KGS
Overall dimension	3250x3150x900 mm	3250x3150x900 mm	3250x3150x900 mm
