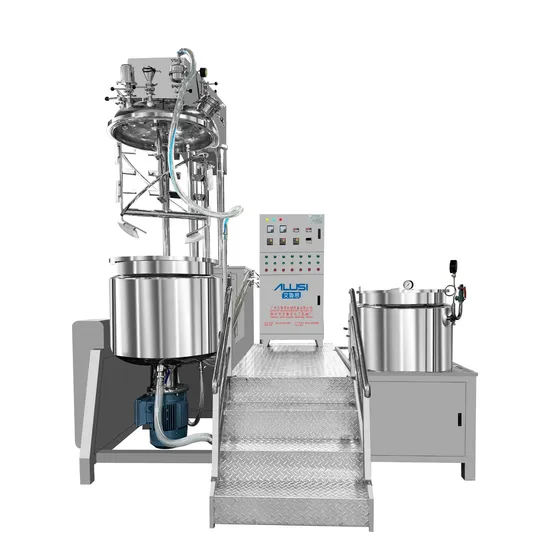

300L Stainless Steel Cosmetic Cream Making Machine Skin Cream Mixing Machine Cosmetic Cream Homogenous Vacuum Emulsifying Mixer
| US$8,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AVE
Application
Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid, Cosmetics Cream,Toothpaste
Application Area
Chemical, Daily Chemical, Food, Pharmaceutical, Cosmetic Factory
Certification
CE, ISO
Condition
New
Control System
Button Control
Cooling Method
Water Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
10-5000L
Mixing Drum Shape
Drum
Speed Control
Single Speed
Speed Range
60 R/min & Above
Stirring Type
Spiral
Temperature Control
With Heating
Working
Shear Mixer
Mixer Type
Homogenizer
Warranty
Free Spare Parts, Video Technical Support, Field M
Layout Type
Hydraulic
Material
SUS304/SUS316(Material Contact Part)
Structure
Water Tank, Oil Tank, Emulsifying Tank, Platform a
Electric Cabinet
PLC/Button Control, Buttons/PLC Control
Agitator
0-75 Rpm, Frame Wall Scrapping Mixing with Propell
Vacuum System
Water Cycle Vacuum Pump
Homogenizer
High Shearing Rotor and Stator Homogenizing
Components
Siemens, Delta, Delixi etc
Function
Mixing, Homogenizing, Emulsion
Discharge
Bottom Outlet, Tilting Discharge and Bottom Outlet
Homogenizer Speed
0-2880rpm
Powder
220/380/440
Transport Package
Wood Case
Specification
2000*800*2500mm
Trademark
Ailusi
Origin
China
HS Code
8479820090
Production Capacity
100sets/Month
Product Description
AILUSI MACHINERYManufacturer of Cosmetic | Pharmaceutical | Food | Daily Chemical industrial | GMP StandardHydraulic lifting vacuum emulsifier mixerThe machine is suitable for the production of various kinds of paste, cream products in cosmetic factories and pharmaceutical factories. Specially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpaste, etc. having extremely small particles for chemical, cosmetics, pharmaceutical, and food industries.vP
Standard configuration- Emulsifier, water phase tanks, oil phase tank - Vacuum pumps and sync solenoid valves - Emulsifier and material filter - Hydraulic lifting system and mixing system- Stainless steel platform- Inverter and electrical control box
Working PrincipleThe materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by the vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With a very high-speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles that appear during the process will be sucked out promptly in the vacuum status in the tank.
Technical Parameters:
| capacity (L) | Agitator power (kW) | Speed (rpm) | Homogenizer power (kW) | Speed (rpm) | Oil/Water tank (L) | Agitator power (kW) | Speed (rpm) | Hydraulic (KW) |
| 50 | 1.5 | 0~62 | 2 | 0~2880 | 20/45 | 0.37/0.37 | 0~1440 | 0.75kw |
| 100 | 2.2 | 0~62 | 3 | 0~2880 | 40/90 | 0.55/0.55 | 0~1440 | 0.75kw |
| 200 | 3 | 0~62 | 5.5 | 0~2880 | 80/180 | 0.75/0.75 | 0~1440 | 1.1kw |
| 300 | 4 | 0~62 | 5.5 | 0~2880 | 120/270 | 1.1/1.1 | 0~1440 | 1.5kw |
| 500 | 4 | 0~62 | 7.5 | 0~2880 | 200/450 | 1.5/1.5 | 0~1440 | 1.5kw |
| 1000 | 5.5 | 0~62 | 11 | 0~2880 | 400/900 | 2.2/2.2 | 0~1440 | 2.2kw |
| 2000 | 7.5 | 0~62 | 15 | 0~2880 | 800/1800 | 2.2/2.2 | 0~1440 | - |
| 3000 | 11 | 0~62 | 18.5 | 0~2880 | 1200/2700 | 3/3 | 0~1440 | - |
Main features:
1) Consist of the main emulsifying mixer, water pot, oil pot, vacuum pump, etc
2) Ointment making machine adopts advanced world famous brand components in pneumatic parts, electric parts, and operation parts.
3) High-quality SUS304&316L material, internal and external mirror polish of homogenizer mixer.
4) High effection homogenizer, 2μm smooth finish
5) Vacuum emulsifying mixer machine applies to cosmetics, pharmaceutical, food, etc industries
