Animal Cow Licking Salt Block Press Machine

Product Description

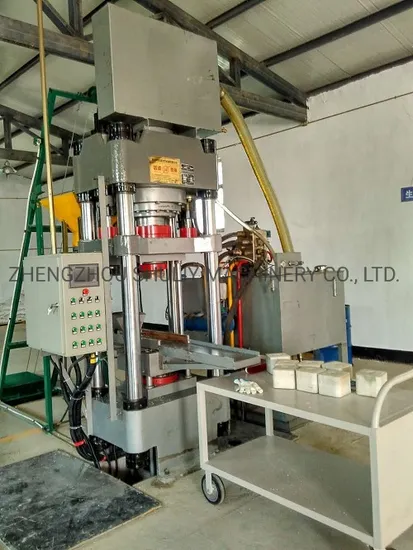

The salt licking briquetting machine is a device that scientifically formulates the mineral elements, vitamins and other trace elements and nutrients required by large livestock such as cattle and sheep, and then processes them into blocks, cakes and other special shapes by the salt licking briquetting machine. . The compressed block is a kind of feed for cattle and sheep to lick. It has different shapes, some are cylindrical, some are rectangular or square. It is also called block compound additive, usually referred to as "licking block" or "licking block". Brick".

No.	Parameter		Unit	SL100	SL200	SL315	SL400	SL500	SL720
1	Large nominal power		kN	1000	2000	3150	4000	5000	7200
2	Liquid working pressure		Mpa	25	25	25	25	25	25
3	Large distance between the lower plane of the slider and the worktable		mm	1100	1100	1150	1200	1200	1200
4	Slider transport	Suppressing force	kN	1000	2000	3150	4000	5000	7200
		Return force	kN	250	300	500	800	800	9000
	Stroke parameters	Itinerary	mm	400	500	500	500	500	500
		Fast down speed	mm/s	130	120	120	120	120	110
		Slow down	mm/s	20	15	15	15	15	14
		Floating suppression speed	mm/s	12	10	8	8	8	8
		Suppressing speed after pressing	mm/s	10	8	6	6	6	6
		Return speed	mm/s	100	100	80	80	80	70
5	Operating parameters of ejector piston (optional)	Ejection force	kN	350	350	400	400	450	500
		Pull down force	kN	450	450	500	500	500	550
		Itinerary	mm	300	300	300	350	350	350
		Jacking speed	mm/s	100	100	90	90	90	90
		Floating downward speed	mm/s	12	10	8	8	8	8
		Retraction speed	mm/s	80	80	70	70	70	70
6	Down cylinder piston parameters	Reach out	kN	350	500	800	600	600	600
		Retraction force	kN	250	350	600	900	900	900
		Stroke	mm	90	90	100	120	120	120
8	Effective area of worktable (left and right × front and rear)		mm	575×550	685x800	685x800	845x1000	845x1000	1000*1100
9	Total motor power		kw	7.5	15	22	30	30	45
10	Briquette weight		Kg	2	2-5	4-7	2-10	5-10	10-20

FAQ

1. Are you manufacturer? Yes, we are. Welcome to visit our factory.
2. Can you change the machine voltage as our request?
Yes, we can.
3. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.
4. Warranty time of your machine?
1 year except for consumable spare parts.
5. How about delivery time of your machine?
Generally it needs 5-7 days for big machines or producing line,and it will be much longer but within our negotiated delivery time.
