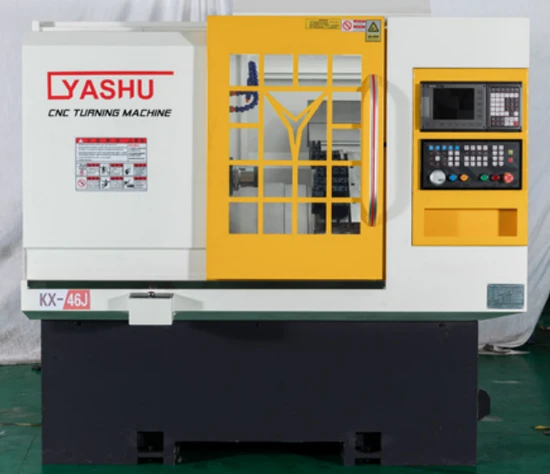

Customized CNC Mini Metal Manual Turning Lathe Machine
Basic Info.
Model NO.
KX-46
Application
Metal
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Weight (Kg)
2350
Max. Weight of Workpiece(Kg)
/
Max. Turned Length (mm)
320
Spindle Bore(mm)
45
Certificates
CE / Eac (for Russia Market) / Noa
Dimension(L*W*H)
Estimated 2100*1500*1900mm
Machining Capacity
0.01
Toolpost Brand
Nusutu Turret
Warranty of Core Components
1 Year
Repeatability (X/Y/Z) (mm)
0.005
Tool Post Stations
12, 8, 6
CNC or Not
CNC
Voltage
380V
Power Requirement
380V / 13kw / 50Hz or 60Hz
Transport Package
Wooden Case
Specification
2080*1990*1540mm
Trademark
YASHU
Origin
Guangdong, China
HS Code
8458110090
Production Capacity
100 Set/Sets Per Month
Product Description
| KX-46 J | ||||||||||||
| Machinery Specification | ||||||||||||
| Specification | Parameter | Optional | ||||||||||
| LATHE | Slant bed degree | 45° | ||||||||||
| Clamping way | Hydraulic clamping | |||||||||||
| Tool form | Row of knives | |||||||||||
| PART | Guide rail | Taiwan 30 Linear guideway | ||||||||||
| Ball screw | Taiwan 32 ball grinding precision | |||||||||||
| Bearing | XEZ | |||||||||||
| Ground to spindle center height | 1080mm | |||||||||||
| Spindle motor | 5.5kw DMC servo motor | 7.5 kw DMC servo motor | ||||||||||
| Feed servo | 1.5kw DMC servo motor | |||||||||||
| CNC Control System | NANJINGKT 830Ti | SYNTEC/GSK/LNC | ||||||||||
| Application scope of processing | Normal Use Value | Maximum Value | ||||||||||
| working ability | Spindle bore | φ45mm | φ45mm | |||||||||
| Maximum particle diameter (disc type) | 300mm | 350mm | ||||||||||
| Maximum length of workpiece to be processed | 300mm | 320mm | ||||||||||
| Single side cutting of stainless steel | 3mm | 4.5mm | ||||||||||
| Repositioning accuracy | ±0.0075mm | |||||||||||
| smooth finish | 1RA | 1.6RA | ||||||||||
| High center of tool rest | 50mm | |||||||||||
| Turning diameter | φ400mm | |||||||||||
| Square tool specification | 20*20mm | |||||||||||
| travel | X axis travel | 900mm | ||||||||||
| Z axis travel | 300mm | |||||||||||
| Feed | X-axis fast moving velocity | 25m/min | 30m/min | |||||||||
| Z-axis fast moving velocity | 25m/min | 30m/min | ||||||||||
| X axis servo power | 1.5KW | |||||||||||
| Z axis servo power | 1.5KW | |||||||||||
| Spindle | Spindle speed | 3500r/min | 4000r/min | |||||||||
| Spindle motor power | 5.5KW | 7.5KW | ||||||||||
| spindle nose | A2-5 | |||||||||||
| Support hydraulic chuck size | 8 inch | 10inch | ||||||||||
| Dimensional & weight | Dimensions | 2100×1500×1900 mm | ||||||||||
| Weight | 2350KG | |||||||||||
