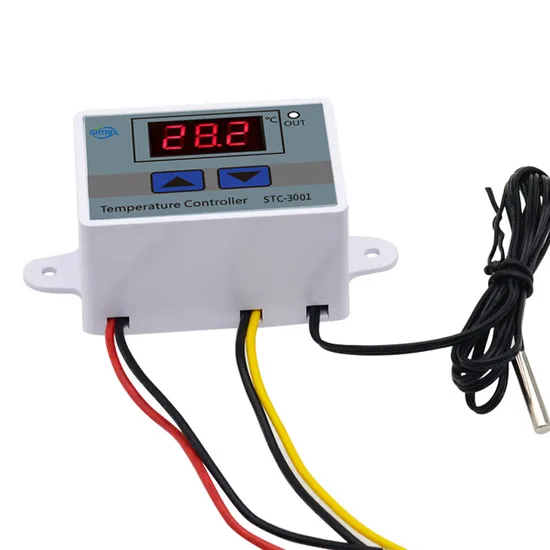

Xh-W3001 Microcomputer Temperature Controller 12V 24V 220V Intelligent Temperature Controller

Product Description

Features and functions
Intelligent digital temperature controller
Intelligent temperature control, safe and durable
Three kinds of temperature probe optional products come standard with 1 meter waterproof probe
Magnetic head: temperature measurement of the adsorption iron container, used for the water supply control of the water pump of the iron container such as boiler
Water drop head: Detect air temperature, used for temperature control in greenhouse breeding or constant temperature of modern poultry breeding places and household constant temperature, etc.
Waterproof head: to detect the temperature of liquid, used to detect the temperature of water or other liquid non-corrosive objects, used in aquatic products Water temperature control for breeding, ornamental fish, etc.
12V/24V 3001 power supply, you can use a transformer or 12V/24V output DC power supply
Note that W3001 is a direct output, so do not power on when the output terminal is not connected to the load, to prevent the two-stage contact between the wires
Technical parameters

Load power	120/240/1500W
Measurementinput	NTC10K waterproof probe L = 1 meter
Power supply voltage	12v/24v/220v
output type	direct output
Temperature control range	-50-110 degrees
Output capacity	maximum 10A
Temperaturemeasurementrange	-50-110 degrees
Installationholedistance	73mm (aperture 4mm)
Temperature control accuracy	0.1 degree
Appearance size	60*45*31mm
