Stainless Steel SS316L JPG-1000 Beverage Ingredients Pharmaceutical Intermediates Chemical Reactor

Product Description

Detailed Photos

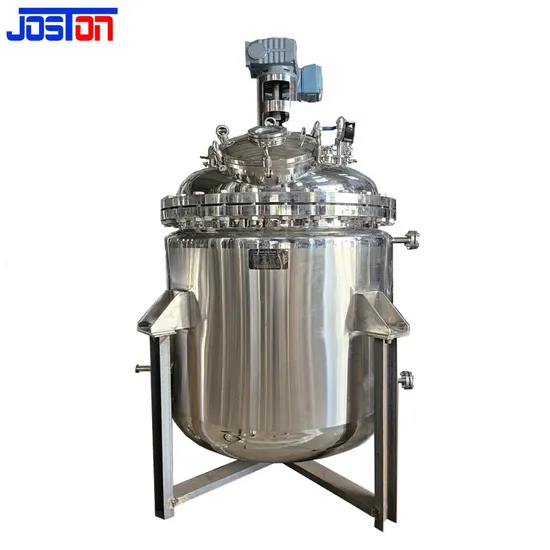

Product Description Reactor Tank
Reactor tank is a closed vessel, which is used to perform a chemical reaction, distillation, crystallization, mixing, and isolation of materials etc. in API manufacturing facility.
Reactor structure and feature
Reactor Tank is specially designed equipment with agitator and gearbox with flameproof electrical motor. Agitator is used for proper mixing, eddy formation, Vortex formation as per requirement. Agitator types are decided based on process requirement.
Reactor Tank jacket is used for maintaining reaction conditions by providing utilities like steam, chilled water, cooling water, chilled brine and hot water. Solids are charged into reactor through Manhole/ Nozzles manually and liquids are charged in to reactor by liquid transfer pipelines connected to reactor or manually through manhole.
Reactor Tank Solution or slurry is discharged from the reactor by nitrogen pressure or by pump, through bottom discharge valve.
Reactor system including reaction tank ,condenser ,sub-cooler ,collection tank and pipeline . Reactor Tank Advantages Volume we can produce from 20L ---20000L. Material we can use SS304 and SS316L,SS2205 ,TA2,Glasslined ,F40 coated SS etc. it can used in single layer or double jacket layers. Jacket can be used different type : single full jacket ,limpet coil jacket and dimple type jacket or inside coil type . Jacket can be used for heating and cooling . Heating medium: steam ,thermal oil ,hot water ,electrical etc . agitator type : propeller type ,anchor type ,high shear emulsify type and scraper type etc. Insulation material can use mineral wool ,rock wool ,PUF etc. Tank can be equipped with manhole ,CIP spray ball ,vent filter level sensor ,temperature sensor ,pressure sensor ,load cell ,PH sensor ,PO2 sensor ,safety valve,sampling valve etc. Tank can be CIP/SIP online. control panel :PLC /HMI automatic control or common button control . inside shell mirror polish Ra<0.4um ,outside shell polish Ra<0.8um
Company Profile
Wenzhou Yinuo Machinery Co., Ltd. belongs to the Joston Industry group. The company's production base is located in the Binhai Industry Park of Wenzhou Economic and Technological Development Zone The company is specialized in the design, production, and installation of pharmaceutical machinery, dairy/beverage &food machinery, chemical industry machinery and sanitary fluid types of equipment etc. We are the leading professional machinery and equipment supplier; we produce equipment with a long history of over 15 years in China. We can supply you with the full set solutions of the engineering, equipment, and technical services in the pharmaceutical and food industry after years of specific experience in the pharmaceutical industry and food industry, engineering research, and technical service.
Clients Visit

FAQ

Q	Are you a factory or a trading company?
A	We are a manufacturer. Our company specializes in producing and manufacturing industrial machinery, including stainless steel reactors, evaporators, crystallizers, distillers, and complete production lines for various applications such as fruit juice and herbal essential oil extraction. By maintaining our own manufacturing facilities, we ensure high-quality control, competitive pricing, and the ability to customize equipment to meet our clients' specific needs.
Q	Do you do OEM and ODM services?
A	Yes, we do, we can make the equipment as per your drawing, or if you give us the technical requirements, we can help design as well.
Q	How will your company control the equipment quality?
A	We have a rigorous quality control process that includes: 1)Use of high-quality materials and components. 2)In-house testing and inspection at various stages of production. 3)Compliance with industry standards and certifications. 4)Continuous improvement and adherence to best manufacturing practices.
Q	Do you supply installation equipment overseas?
A	Yes, we offer comprehensive installation and training services to ensure the smooth operation of our equipment. Our technical team can assist with on-site installation, and we provide detailed training for your staff on equipment use and maintenance.
