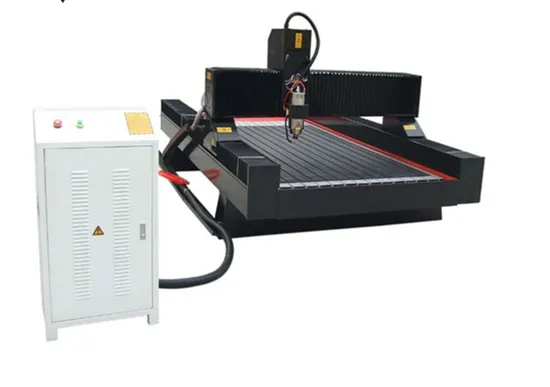

Stone/Metal Plate/ Wood Cutting Carving, CNC Router Machine
| US$5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QL3012
Feed Mode
Manual
Controlling Mode
CNC
Certification
CE, ISO
Customized
Non-Customized
Condition
New
Color
Customized
Z Working Area
600mm-1000mm
X. Y Working Area
3000*1200mm
Working Delicacy
0.005mm
Repositioning Accuracy
0.05mm
Surroundings for Software
Windows98/2000/XP
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China
HS Code
8458910000
Production Capacity
100sets/Month
Product Description
Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: QL3012
Voltage: 220V
Power(W): 1500W
Certification: CE
Warranty: 1year
After-sales Service Provided: Overseas third-party support available
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
A three-axis linear guide running smoothly, and high precision
Constant power spindle motor, cutting intensity, high efficiency
CNC STONE/METAL/WOOD ROUTER QL3012
1, a three-axis linear guide running smoothly, and high precision.
2, complete machine using seamless welding steel structure, rigid, and no deformation, the dorsal surface lining plate, strength, steel and good.
3, constant power spindle motor, cutting intensity, high efficiency.
4, the U-disk embedded control system completely offline to work more convenient and flexible.
| Machine Model | QL-3012 |
| X. Y working area | 3000*1200mm |
| Z working area | 600mm-1000mm |
| Max. Speed | 6m/min |
| Max. working speed | 4m/min |
| Working delicacy | 0.005mm |
| Repositioning accuracy | 0.05mm |
| Command | G code*. u00*. mmg*. plt |
| Surroundings for software | windows98/2000/xp |
| Power (spindle is not included) | 1500w |
| Working voltage | AC380V/50Hz |
| Spindle power | 3.0-8.0kw |
| Spindle rotating speed | 0-24000rpm/min |
| Drive motor | Stepper |
