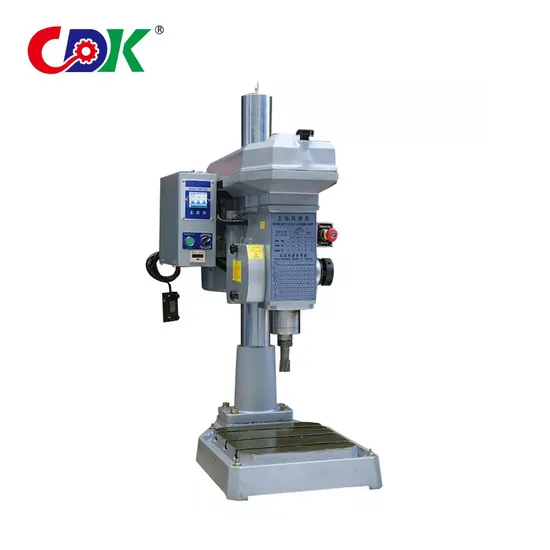

High Precision M16 Automatic Vertical Gear Type Tapping Machine
Basic Info.
Model NO.
DK-II
Structure
Vertical Tapping Machine
Layout
Vertical
Controlling Mode
Motor
Number of Shaft
1
Hole Diameter
M16
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Travel
65mm
Taper
Mt2
Swing
430mm
Working Table
340*340mm
Main Spindle to Working Table
470mm
Motor
1.5kw
Tapping Capacity
M16
Transport Package
Wooden
Specification
150kg/480*930*1150mm
Trademark
CDK
Origin
China
Production Capacity
500/Month
Packaging & Delivery
Package Size
48.00cm * 93.00cm * 115.00cm
Package Gross Weight
150.000kg
Product Description
High Precision M16 Automatic Vertical Gear Type Tapping Machine1. Special design of positive and reverse motor, low inertia to prevernt breakage of tapping
2. Functional action can be selected for perforated teeth,blind teeth and perforated teeth
3. The spindle rotation speed is high and the spindle speed is low when the tapping is reversed, and the accuracy of tapping depth is 0.1mm
4. It is especially suitable for the processing of fine and blind holes in precise hardware such as watches, glasses, mobile phones and cameras
5. It can be equipped with multi-axis tapping device to complete one-off multi-hole tapping and automatic tapping at the same time, which improves the production efficiency
6.Solid column, tempered to eliminate stress, hard chromium plating, friction resistance, no rust
