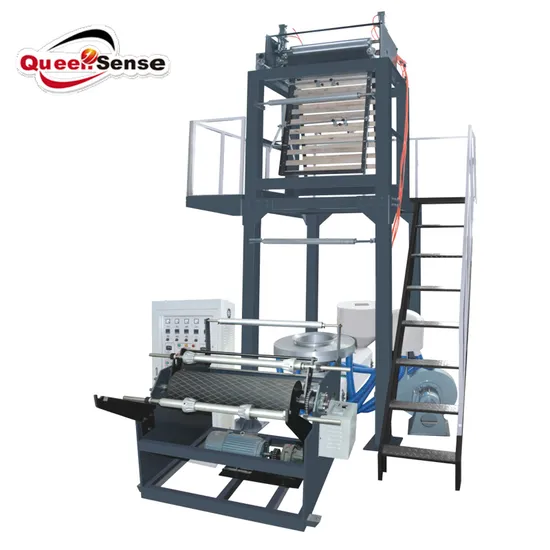

Plastic PE Film Blowing Machine Extruder Blown Film Machine
| US$7,500.00-12,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SJ-A50/55/65/65-1
Type
PE Film Blowing Machine
Raw Material
PE
Maximum Folding Width of Film
1200mm
Screw Diameter
65mm
Automation
Non-Automatic
Computerized
Non-Computerized
Machine Weight
2t
Certification
CE
Film Width
1200mm
Film Thickness
0.008-0.10mm
Rewinder Station
Single Station
Diameter
50-65
Name
Plastic PE Film Blowing Machine
Material
HDPE, LDPE
Max.Extrudsion Output
35-70kgs
Size
100-1200mm
Model
1200mm
Transport Package
Seaworthy
Specification
CE
Trademark
QUEENSENSE
Origin
CHINA
HS Code
8477309000
Production Capacity
35-80kg/h
Product Description
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Optional equipment:
1. Auto load
2. Air compressor
3. Special die
4. Die rotary device
5. Bouble sides winder
6. Up and down
Plastic PE film blowing machine :
| Model | A50 | A55 | A65 | A65-1 |
| Diameter of screw | φ 50 | φ 55 | φ 65 | φ 65 |
| Rcduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
| Single-face Thickness of film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
Max. Extrusion(Kg/h) | 35 | 50 | 65 | 80 |
| L/D | 28: 1 | 28: 1 | 28: 1 | 28: 1 |
| Power of main moto(kw) | 11 | 15 | 18.5 | 22 |
| Power of Tracion main moto(kw) | 0.75 | 1.1 | 1.5 | 1.5 |
| Heating Power(kw) | 15 | 18 | 23 | 27 |
Outline diameter(L x W x H) (mm) | 4800 x 1900 x 4100 | 5500 x 2100 x 4700 | 6500 x 2300 x 4900 | 6500 x 2500 x 5600 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
