3-5t /H Horizontal Ring Die Poultry Livestock Chicken Feed Pellet Machine

3-5t /H Horizontal Ring Die Poultry Livestock Chicken Feed Pellet Machine

US$4,050.00-29,800.00 1 Set (MOQ)

Basic Info.

Model NO.
508
Processing Object
Mixed Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Flat Die Pelletizer
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Powder
Warranty
2year
Voltage
380V
Automatic Grade
Automatic
Energy Saving
Energy Saving
Certification
CE
Customized
Customized
Color
Customized
Transport Package
Wooden Case
Specification
23m*5m*5m
Origin
China
HS Code
847930
Production Capacity
1000kg-2000kg

Packaging & Delivery

Package Size
2000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight
5000.000kg

Product Description

Product Description
Horizontal Ring Die Animal Poultry Feed line :
Different model for Choose

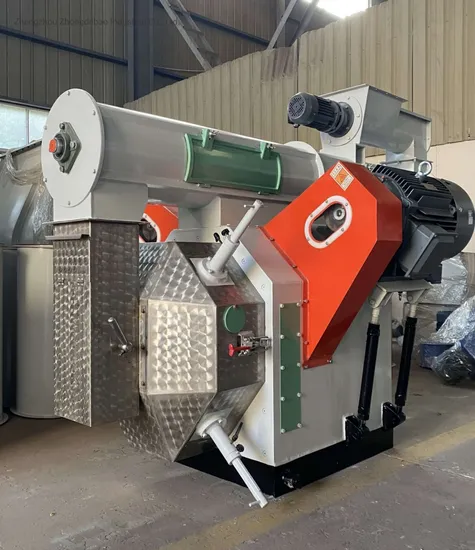

Name: Ring die feed pellet mill
Model: HKJ-250 with single conditioner
Capacity: 1-1.5 t/h
Die's Diameter: 250mm
Die's rotation rate: 388 r/min
Pellet Diameter: 2.0mm-6.0mm
Roller NO.: 2
Roller outer diameter: 108 mm
Main power: 22 kw,380v,50hz
Conditioner power: 1.5 kw
Feeding power: 0.75 kw
Gross Weight: 850 kg
Dimension: 1762*616*1840 mm
Name: Ring die feed pellet mill
Model: HKJ-320 with single conditioner
Capacity: 2-4 t/h
Die's Diameter: 320mm
Die's rotation rate: 305 r/min
Pellet Diameter: 2.0mm-6.0mm
Roller NO.: 2
Roller outer diameter: 140 mm
Main power: 22 kw*2, 380v,50hz
Conditioner power: 2.2 kw
Feeding power: 0.75 kw
Gross Weight: 1500 kg
Dimension: 2200*1500*1770 mm
Name: Ring die feed pellet mill
Model: HKJ-358 with single conditioner
Capacity: 3-5 t/h
Die's Diameter: 358mm
Die's rotation rate: 305 r/min
Pellet Diameter: 2.0mm-6.0mm
Roller NO.: 2
Roller outer diameter: 160 mm
Main power: 30kw*2, 380v,50hz
Conditioner power: 2.2 kw
Feeding power: 0.75 kw
Gross Weight: 1500 kg
Dimension: 2400*1500*1770 mm
Name: Ring die feed pellet mill
Model: HKJ-432 with single conditioner
Capacity: 5-10 t/h
Die's diameter:432 mm
Die's rotation rate: 300rpm
Power: 55kw*2, 380v,50hz
Conditioner power: 4 kw
Feeding power: 1.5 kw
Roller outside diameter: 200 mm
Roller Qty.: 2
Gross weight: 3900 kg
Size: 2840*2150*2210 mm
Name: Ring die feed pellet mill
Model: HKJ-508 with single conditioner
Capacity: 5-13 t/h
Die's diameter:508 mm
Die's rotation rate: 300rpm
Main Power: 75kw*2/380v, 50hz
Conditioner power: 5.5kw
Feeding power: 1.5 kw
Roller Qty.: 2
Gross weight: 4300kg
Size: 3400*2150*2210 mm

5ton/h feed line to Turkey
8 ton/h ring die feed line to India

1-3 Ton/h Flat die feed line :
Our projects
1000kg/h feed pellet line to Côte d'Ivoire
1000kg/h feed pellet line to Peru
1000kg/h feed pellet line to Indonesia
2000kg/h feed pellet line to Russian
2000kg feed pellet line to Chile
Raw materil & Products

Our factory
Certifications

Our good feedback :
Packaging & Shipping

FAQ

Q. What is your payment term? A: T/T 30% down payment, balance to be paid before shipment. Q: What is your main market? A: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia Q: What is your producing time? A: Producing time depends on that machines you ordered. Usually takes 45 days. Q: What documents you can offer? A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff. Q: If equipments have some quality problem, how would you deal with? A: We will responsible for all the quality problems. We will check the machine to get the problem. If need parts, will send them to you. Q: How to install the equipments? A: We send 1-2 engineer (150USD/person/day) to the local plant for helping install and commissioning equipments. To save time, our service stuff will tell you what to prepare in advance. We can also teach the workers to how to use the machines and how to make the products better.
