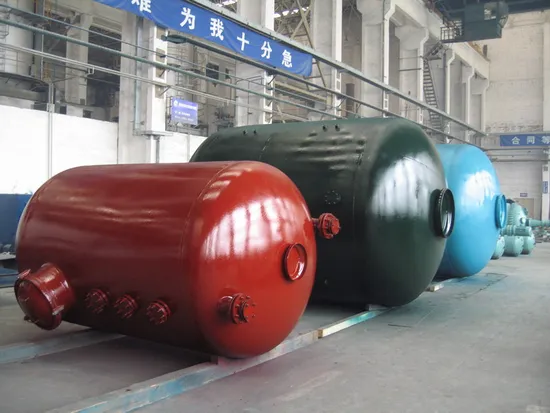

Chemical Equipment Glass-Lined Closed Tank /Horizontal Type Distilling Reaction Mixing Storage Tank 6300L
| US$1,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
6300L
Type
Tank Reactor
Material
Glass-Lined
Capacity
6300L
Structure
Multiple Parallel
Pressure
Low Pressure (0.1MPa≤p<1.6MPa)
Agitator Model
Ribbon Agitator
Tower Reactor Type
Packed Tower Reactor
Heating
Oil Circulation Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Glass Thickness
0.8 mm to 2.0 mm
Certification
ISO9001
Transport Package
Expert Export Transportantion
Specification
6300L
Trademark
Huateng Datang
Origin
China Beijing
HS Code
847982
Production Capacity
2000set/Year
Product Description
Product specification: 3000L-80000L
Product standard: GB25025-2010, GB/T 150-2011
Application: It is widely used in reaction, evaporation, concentration, synthesis, extraction, polymerization, saponification, mineralization, chlorination, nitrification and other industrial production and scientific research in medicine, chemical industry, organic synthesis, dye and national defense industry to replace expensive stainless steel and non-ferrous metals. Standard closed glass lined tank (tank) specifications: 3000L, 4000L, 5000L, 6300L, 8000L, 12500L, 16000L, 20000L, 25000L, 30000L, 40000L, 50000L, 63000L, 80000L, etc., can also be non-standard closed glass lined storage tank according to user needs
| Nominal volume VN/L | Actua volume V/L | Nominal Diameter D | Nominal diameter of pipe orifice DN | Liquid level gauge Nomina length*quantity | |||||
| a Inlet | b Outlet | c Process port | d Spare port | h Process port | Liquid level gauge e1-2 h1-2 g1-2 | ||||
| 3000 | 3355 | 1450 | 80 | 125 | 50 | 50 | 100 | 65 | 1400×2 |
| 4000 | 4777 | 1600 | 1600×2 | ||||||
| 5000 | 5561 | 1600 | 1800×2 | ||||||
| 6300 | 6877 | 1750 | 1900×2 | ||||||
| 8000 | 8944 | 1900 | 2000×2 | ||||||
| 10000 | 11668 | 2200 | 150 | 2000×2 | |||||
| 12500 | 13644 | 2200 | 2250×2 | ||||||
| 16000 | 17318 | 2400 | 100 | 80 | 80 | 150 | 2400×2 | ||
| 20000 | 21738 | 2600 | 2500×2 | ||||||
| 25000 | 27640 | 2800 | 2700×2 | ||||||
| 30000 | 32547 | 3000 | 2800×2 | ||||||
| 40000 | 43189 | 3200 | 200 | 3200×2 | |||||
| 50000 | 53892 | 3400 | 3550×2 | ||||||
| 63000 | 69000 | 3600 | 2700×3 | ||||||
| 80000 | 88000 | 3800 | 3000×3 | ||||||
| Nominal volume VN/L | Size | ||||||||||
| H0 | H1 | H2 | H3 | H4 | H5 | H6 | D1 | D2 | D3 | n-D4 | |
| 3000 | 2775 | 88 | 2260 | 1400 | 615 | 220 | 160 | 500 | 1090 | 1086 | 8-φ24 |
| 4000 | 3153 | 105 | 2630 | 1600 | 741 | 268 | 1200 | 1240 | |||
| 5000 | 3542 | 105 | 3020 | 1800 | 931 | 278 | 1200 | 1240 | |||
| 6300 | 3737 | 110 | 3140 | 1900 | 894 | 402 | 1320 | 1394 | |||
| 8000 | 4020 | 115 | 3460 | 2000 | 1051 | 328 | 1430 | 1544 | |||
| 10000 | 3970 | 115 | 3430 | 2000 | 995 | 235 | 1650 | 1648 | |||
| 12500 | 4540 | 115 | 3950 | 2250 | 1265 | 215 | 1650 | 1648 | |||
| 16000 | 4792 | 120 | 4220 | 2400 | 1336 | 248 | 180 | 600 | 1800 | 1852 | |
| 20000 | 5100 | 120 | 4520 | 2500 | 1460 | 200 | 1950 | 2056 | |||
| 25000 | 5545 | 130 | 4950 | 2700 | 1610 | 230 | 2100 | 2256 | |||
| 30000 | 5680 | 130 | 5100 | 2800 | 1637 | 228 | 2250 | 2256 | |||
| 40000 | 6470 | 135 | 5900 | 3200 | 1940 | 320 | 2400 | 2560 | |||
| 50000 | 7087 | 135 | 6500 | 3550 | 2182 | 337 | 2550 | 2720 | |||
| 63000 | 8020 | 135 | 7440 | 2700 | 1390 | 249 | 2420 | 2880 | |||
| 80000 | 9060 | 145 | 8390 | 3000 | 1695 | 217 | 2520 | 3040 | 8-φ30 | ||
