OEM Customized High Precision BMI5a3020 High-End 5-Axis CNC Gantry Milling Machine Center

Product Description

Product Description
MILLING MACHINE
The processing capacity of the milling machine is very powerful. It can cut various metal materials such as steel, aluminum, copper, etc. Whether it is plane milling, it can accurately process the surface of the workpiece to the expected flatness and finish; or groove milling, such as milling key slots and other types of grooves, not a problem; even through special accessories and operating processes, gears and spiral grooves can be processed. In terms of precision, modern milling machines can achieve amazing micron-level precision with the help of high-precision transmission devices and advanced control systems, meeting the processing needs of various high-end manufacturing industries for precision parts. Product Parameters

MILLING MACHINE SPECIFICATION
Product Name	Milling Machine
Keywords	CNC Milling Machine
Spindle Taper	BT40-150
Type	VERTICAL
Weight (T)	7.5 T
Number Of Axes	5
Positioning Accuracy (Mm)	0.001
Repeatability (X/Y/Z) (Mm)	0.001
Range Of Spindle Speed(R.P.M)	5 - 18 R.P.M
Min. Time Of Tool Change(S)	0.5
Voltage	380V
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Key Selling Points	High Productivity
LOGO Custom	Accept
Milling machine is a kind of machine tool equipment with extremely wide applications.

Detailed Photos
HIGH-PRECISION PROCESSING CAPABILITY
Milling machines have excellent high-precision processing capabilities and can meet the processing needs of various precision parts. Through high-precision transmission devices and advanced control systems, milling machines can achieve micron-level processing accuracy to ensure that the size and shape of parts meet design requirements. This high-precision processing capability is essential to improving product quality and performance.
POWERFUL PROCESSING EFFICIENCY
Milling machines have efficient processing capabilities and can quickly remove a large amount of material and shorten the processing cycle. At the same time, the multi-axis linkage function of the milling machine can achieve one-time processing of complex shapes, reducing the time for multiple clamping and debugging, and further improving processing efficiency. This is of great significance for mass production and high-efficiency processing.
WIDE PROCESSING RANGE
Milling machines are suitable for processing various materials, including metals, non-metals, and composite materials. Whether it is hard steel, aluminum alloy, or soft plastics and wood, milling machines can perform effective cutting processing. In addition, milling machines can also process various parts of complex shapes, such as curved surfaces, gears, threads, etc., to meet diverse processing needs.
GOOD STABILITY AND RELIABILITY
Milling machines use high-quality materials and advanced manufacturing processes and have good stability and reliability. During long-term, high-intensity processing, milling machines can maintain stable processing accuracy and performance to ensure the consistency of product quality. At the same time, the maintenance of milling machines is relatively simple and convenient, reducing the failure rate and repair costs.
FLEXIBLE PROGRAMMING AND OPERATION
Modern milling machines usually use CNC technology and have flexible programming and operation functions. Operators can easily set processing parameters and paths through programming software to achieve automated processing. At the same time, milling machines also have real-time monitoring and fault diagnosis functions, which can detect and solve problems in time to ensure the smooth progress of the processing process.
Machine Specifications

Parameters	unit	BMI 5A3016	BMI 5A3020
Worktable area	mm	3200 × 1600	3200 × 2000
Max. loading on worktable	t	20	30
X/Y/Z Travel	mm	3200 × 1600 × 800	3200 × 2000 × 1000
Guide way		X: 2 linear guide on each side, Y: 4 heavy-duty linear roller guide wayZ: linear roller guide way
Dist.from spindle nose to table surface	mm	280-1080 (customizable)	280-1280 (customizable)
Spindle		B head/standard,A,C head/optional
Tool magazine capacity		20
Max loading height	mm	1000 (customizable)	1200 (customizable)
Max loading width	mm	2000	two thousand and four hundred
Feeding speed	m/min	0-20
Rapidt speed	m/min	40
Positioning accuracy	mm	0.01
Repeat positioning accuracy	mm	0.005
Weight of machine	t	40	42
Dimension (without electrical cabinet)	mm	7400 × 4300 × 5500	7400 x 4700 x 6200
Control system		5-axis simultaneous standard Siemens/ONE/Heidenhain

Machine Configuration

No.	Name	Origin	Manufacturer
1	Spindle assembly	Italy	HSD
2	Linear guide	Japan / Germany	THK/INA
3	Ball Screws	Japan / Germany	THK/I+F
4	Ball screw support bearings	Japan	NSK
5	Rack and pinion	Germany	Alpha/Atlanta
6	Planetary Reducer	Germany	Alpha/Stober
7	Numerical control system	Germany	SIEMENS
8	Programmable Designer	Germany	SIEMENS
9	Three-axis motor	Germany	SIEMENS
10	Main electrical components	Germany	SIEMENS
11	Lubrication system	Taiwan	Bijur
12	Pneumatic system	Japan	SMC
13	Drag chain	Germany	IGUS
14	Water cooler	China	Tongfei
15	Chip Conveyor	Shanghai	Fuyang
16	Optical scale	Spain	Fagor

Machine Applications
The machine tool can complete five-axis five-axis simultaneous processing on the workpiece with just one-time loading, which is suitable for processing large and medium-sized complex parts for aerospace, mold, automotive, railroad, marine, and other industries with high processing efficiency, parts can be obtained with high surface quality. Machine Features

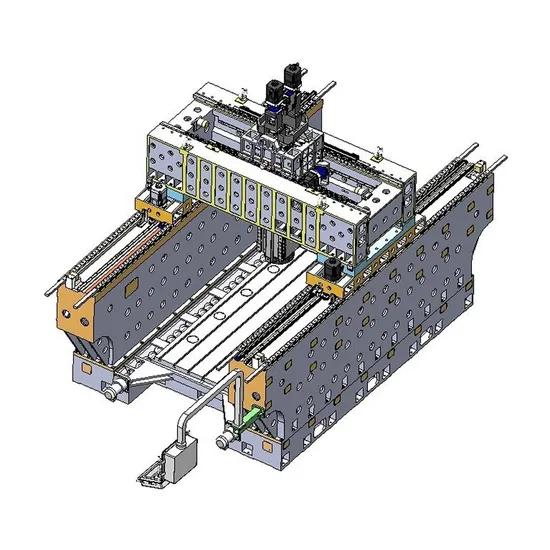

The compact one-piece structure of the machine guide rail base and worktable brings a large loading capacity and stable structure.
High stability: box-in-box symmetrical crossbeam structure design for high speed and stability keeping.
High acceleration: maximum acceleration 0.4G, rapid speed 40m/min, feeding speed 20m/min.
Less footprint obtained, only 60% of the table moving type;
Fixed worktable for big loading capacity, suitable for processing extra large workpieces;
Long-term use of accuracy retention and better stability can be kept for all moving parts to keep weight unchanged;
The constant weight of moving parts ensures the machining contour accuracy and no machining overcutting;
