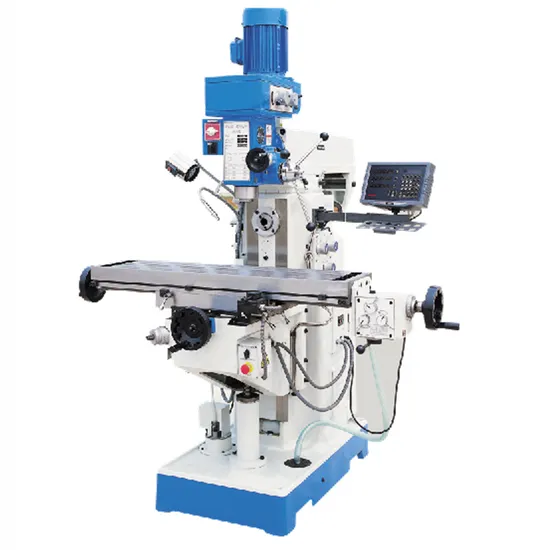

Mechanical Gear Driven Universal Drilling and Milling Machine Zx6350c
| US$3,300.00 | 1 set (MOQ) |
Basic Info.
Model NO.
ZX6350C
Type
Universal
Object
Metal
Structure
Knee Type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Drilling and Milling Machine
Table Size
1120X280mm
Table Travel
600X260mm
Spindle Taper
Is030
Max Drilling
50/30mm
Max Vertical Milling
25mm
Max Boring Dia
120mm
Max Tapping Dia
M16
Spindle Travel
120mm
Horizontal Speed
10-1300rpm
Vertical Speed
115-1750rpm
Horizontal Motor
2.2kw
Vertical Motor
0.85/1.5kw
Transport Package
Ply Wooden Case
Specification
1600X360MM
Trademark
uni-tech
Origin
China
HS Code
84595900
Production Capacity
100sets/Month
Product Description
mechanical gear driven universal drilling and milling machine ZX6350C FEATUREdrilling and milling machine feature:
Complete with automatic table feed in x- and y-axis including rapid feed Surface treated, large table includes T-slots Heavy cast-iron machine stand eliminates vibrations Dovetail guiding in all three axes - adjustable by gibs Positioning motor for z-axis comes standard Wide speed and feed range Ideal for single and small-series production Tapered roller bearings ensure high concentricity Left and rigth rotation allows thread cutting SPECIFICATIONS
drilling and milling machine specification:
| Model | ZX6350Z | ZX6350C | |
| Max.drilling dia. (mm) | 50;30 | 50;30 | |
| Spindle taper | M.T.4;R8;ISO30;ISO40 | M.T.4;R8;ISO30;ISO40 | |
| Max.vertical milling dia. (mm) | 25 | 25 | |
| Max.boring dia. (mm) | 120 | 120 | |
| Max.tapping dia. (mm) | M16 | M16 | |
| Distance spindle to table surface (mm) | 140-490(8) | 100-480 | |
| Spindle speeds range (r.p.m.)(steps) | Vertical | 60-1500(8) | 115-1750(8) |
| Horizontal | 10-1300(12) | 40-1300(12) | |
| Spindle travel (mm) | 120 | 120 | |
| Automatic spindle feeds (mm) | 0.08;0.15;0.25 | / | |
| Table size (mm) | 1120×280;1000×280 | 1120×280 or 1000×280 | |
| Table travel (mm) | 600×260 | 600×260 | |
| Overall dimensions (mm) | 1400×1630×2650 | 1400×1630×2650 | |
| Motor | Vertical | 1.5 | 0.85 |
| Horizontal | 2.2 | 1.5/2.2 | |
| N.W/G.W | 1200/1350 | 1200/1350 | |
ACCESSORIES
drilling and milling machine accessories:
Standard Accessories:
1.Drill chuck
2.Mill chuck
3.Reduction sleeve
4.Maching vice
5. Wrench
6. Inner-hexagonal spanne
7. Camlock
8.Wedge shifter
9. Spindle arbor
10. Horizontal milling bilt
11. Operation manual
12.Quality certificate
13. Packing list.
Optional Accessories:
1.Digital read out
2.Milling chuck collets
3.Machine vice
4.Clamping kits
5.Universal dividing head
6.Rotary work table
7.Slotting head
Detailed Photos
drilling and milling machine more photos:
If you are interested in drilling and milling machine , pls contact us
TENGZHOU UNI-TECH CO.,LTD
Contact person : kitty xu
