High Precision Exceptional Performance Slant Bed CNC Lathe Machining Equipment Tool with Taiwan Technology (BL-S32/32T)
| US$20,000.00-22,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-S32/32T
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Gang Tool/8 Station
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Chuck Size
5′′/6′′
Max. Swing Dia. Over Bed
360/430mm
Max. Turning Length
200/180mm
Max. Turning Dia.
200/250
Spindle Bore
46/56mm
Spindle Type
A2-4/A2-5
Spindle Speed
5000rpm
Max. Bar Through Dia.
32/44mm
Spindle Motor
5.5kw
Tool Turret Type
Gang Tool/8 Station Tool Turret
Ex-Circle Finish Turning Accuracy
It6
Finish Turning Roughness
Ra0.4~1.6mm
Finish Turning Roundness
≤0.003mm
Positioning Accuracy(X/Z)
0.005/0.008mm
Repeat Positioning Accuracy(X/Z)
0.002/0.004mm
Transport Package
Plywood Case
Specification
360*200mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description

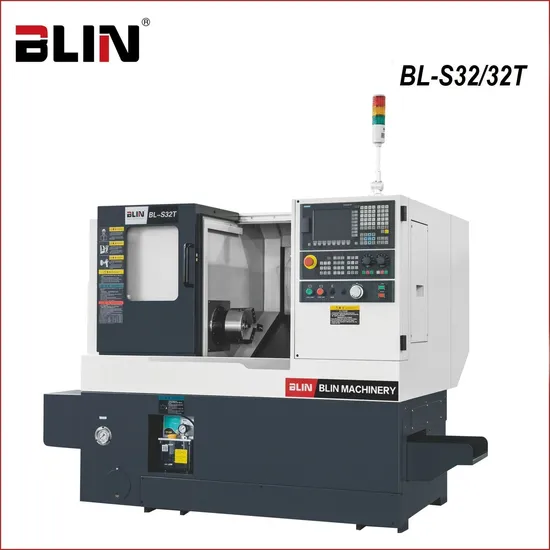

Lathe/CNC Lathe/CNC Lathe Machine(BL-S32/32T)
- New generation high precision slant bed cnc lathe after optimization based on old S32/32T model
- S32 mount gang tool device, S32T mount 8 station HYDRAULIC-SERVO tool turret.
- Super compact structure(similar as JAPAN machine), big inside space, modern appearance
- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand.
- Adopt 30°mono-block slant bed design, high rigidity, good machining flexibility,easy for chip conveying
- Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, robot etc.
- Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability.
- Frame adopt oil-coolant separation design, adopt independent coolant tank
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision pre-stretched ball screw(double-nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity, can realize μ class precise turning.
- Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for precise machining
Details:
| Item | Specification | Unit | BL-S32 | BL-S32T |
| Capacity | Chuck size | / | 5'' collet | 5''*/6'' chuck |
| Max. swing dia. over bed | mm | Φ360 | Φ430 | |
| Max. swing dia. over slide | mm | Φ90 | Φ250 | |
| Max. turning length | mm | 200 | 180 | |
| Max. turning dia. | mm | Φ200 | Φ250 | |
| Spindle | Spindle bore | mm | Φ46 | Φ46/Φ56* |
| Spindle end type | / | A2-4 | A2-4/A2-5* | |
| Spindle speed | rpm | 5000 | ||
| Max. bar through dia. | mm | Φ32 | Φ32/Φ44* | |
| Spindle motor power | kw | 5.5 | ||
| X/Z axes | X axes travel | mm | 290 | 150+20 |
| Z axes effective travel | mm | 250 | 180 | |
| X/Z axes motor | Nm | 6/6 | ||
| X/Z axes linear guideway width | mm | 30/30 | ||
| X/Z axes rapid moving speed | m/min | 28/28 | ||
| Tool post | Tool turret type | / | Gang tool | Hydraulic-Servo tool turret |
| Tool qty | / | 5 | 8 | |
| Vicinal tool changing time | s | / | 0.4 | |
| Farthest tool changing time | s | / | 0.57 | |
| Toolshank size | mm | 16×16(20×20*), Φ25 | 20×20, Φ25 | |
| Tailstock | Tailstock quill taper | / | None | |
| Accuracy | Ex-circle finish turning accuracy | / | IT6 | |
| Finish turning roughness | mm | Ra0.4~1.6 | ||
| Finish turning roundness | mm | ≤0.003 | ||
| Positioning accuracy(X/Z) | mm | 0.005/0.008 | ||
| Repeat positioning accuracy(X/Z) | mm | 0.002/0.004 | ||
| Others | Coolant motor | w | 480 | |
| Coolant liquid flux | m³/h | 2.5 | ||
| Overall size | mm | 1800×1400×1500/2500×1400×1500 (exclude/include chip conveyor) | ||
| N.W. | kg | 1700 | 1800 | |
* As option Main parts brand:
| Item | Brand |
| CNC controller | GERMANY-SIEMENS |
| X,Z axes driver&motor | GERMANY-SIEMENS |
| Spindle driver&motor | GERMANY-SIEMENS |
| Spindle unit | TAIWAN-VOLIS/KENTURN |
| Tool turret | INDIA-PRAGATI/GERMANY-SAUTER* |
| Ball screw | TAIWAN-PMI/HIWIN |
| Ball screw bearing | JAPAN-NSK/NTN |
| Linear guideway | TAIWAN PMI/HIWIN |
| Lubrication system | TAIWAN-ISHAN |
| Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
| Hydraulic parts | TAIWAN/JAPAN |
| Coolant pump | Joint-venture |
| MPG | USA-HEDSS |
| Tri-color indication lamp | KOREA-QLIGHT |
| Isolation transformer | CHINA top-CHINT/JIUKO |
| Circuit breaker | FRANCE |
| AC contactor | FRANCE |
| Relay | JAPAN-OMRON |
| DC switch power supply | TAIWAN-MEANWELL |
| Terminal block | GERMANY-WEIDMULLER |
| Synchronous belt | USA |
| Synchronous belt wheel | TAIWAN-PTP |
| Nuts | TAIWAN-YINSH |
| Shaft coulping | GERMANY-KTR/R+W |
| Scrapping plate Extensible cover | TAIWAN-WANHE |
| Chip conveyor | TAIWAN-WANHE |
| Coolant pipe | TAIWAN-WEIDING |
| Collet, Gang tool holder | Own-made |
Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic collet(S32)/hydraulic chuck(S32T)
-Gang tool(S32)/8 station Hydraulic-servo tool turret(S32T)
Optional configuration:
-SIEMENS 828D/FANUC 0i TF CNC controller
-Chip conveyor
Other models choice:
