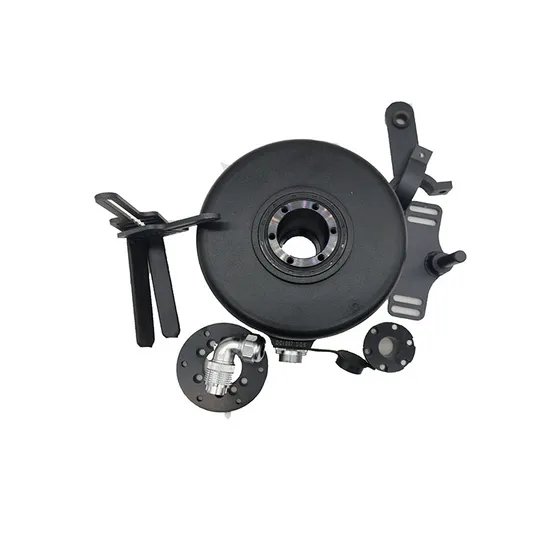

Steering Wheel Gear Motor 12V 24V 50W Direct Drive Torque Motor Low Speed 80rpm

Product Description

Steering Wheel Gear Motor 12V 24V 50W Direct Drive Torque Motor Low Speed 80rpm Product Application:
Motor: 12v 50w
Continuous current 8.5, maximum peak current 15A (1s)
DC working power +9~18vdc
Working mode: speed mode, torque mode
eed mode, position mode;
1.3. Conditions of use
1.3.1 Power supply:
Rated working power: 12vdc
Limit power supply range: 9--18vdc
t can provide instantaneous current overload capability of 2 times continuous current
1.3.2 Feedback component:
Incremental encoder (conventional product), absolute encoder(if you need absolute encoder, please advise in advance).
1.3.3 Use environment:
Operating temperature: -25~55°C (based on environment temperature);
Storage temperature: -35~65°C (based on environment temperature);
Humidity: 5%--90%RH, condensation (25°C)
Protection level: IP65,
Insulation performance: input to the chassis DC600V, leakage current 0.07mA.The insulation resistance is 20 MΩ or more.
Three-proof requirements: meet the requirements of three defenses (dust, moisture, salt spray).
Vibration requirements: Frequency 5Hz ~ 25Hz, amplitude 3mm, 0.09g.
Frequency 25Hz~200Hz, amplitude 1.47mm, 116g.
Horizontal, vertical, and longitudinal directions are 30 min in each direction.
Cooling method: natural cooling Details Images

Parameter	Label	Parameter value	unit
Voltage	U	9-18	VDC
Maximum continuous current	Ic	25	A
Maximum peak current	Imax	50 (1s overcurrent protection)	A
Pwm switching frequency	fpwm	10	kHz
Output encoder power supply	+5Vout	5	VDC
	Icc	100	mA
Digital input	EN,DIR	Cutoff (high level): less than 1mA Brakeover (low level): 3~7mA	mA
Analog input impedance	Single-ended input	20	KΩ
Analog signal voltage	Single-ended input	0~5V	V
Under voltage protection	Vu	9	V
Over voltage protection	Vo	18	V
Operating temperature	Industrial grade (standard product)	-25 ~ +55	ºC
	grade	-40 ~ +65
Storage temperature	Industrial grade (standard product)	-35 ~ +65	ºC
	grade	-55 ~ +85

Manufacturing Technique

7- core definition	1	IN+	Power input +
	2	IN-	Power input -
	3	TX	RS232-TX
	4	RX	RS232-RX
7- core definition	5	GND	0V
	6	CAN-H	CAN-H
	7	CAN-L	CAN-L
