Flaxseed Corn Black Seed Screw Automatic Hot Price Peanut Olive Coconut Cold Small Mini Oil Press Machine

Product Description

Flaxseed Corn Black Seed Screw Automatic Hot Price Peanut Olive Coconut Cold Small Mini Oil Press MachineProduct Description
The oil press is a machine that uses the external force of the machine to increase the temperature, activate the oil molecules, and squeeze the oil out of the oil.
Special just made, durable, press system adopts directional pressure, high pressure, high oil yield.
Intelligent integrated control panel, humanized design, automatic temperature control, real-time data, complete control, simple adjustment and operation.
Features
Saving labor: it can save 60% labor for equal output and 40% laror cost per day for one or two people are able to make production.
Widely-used: it can be used to completely press more than 20 kinds of oil crops, such as peanuts, sesame, vegetable seeds, soybean, oil sunflower and flax by three stages pressing, low residual oil ratio.
Pure oil quality: the vacuum oil filtering is used to remove residue so as to ensure the pure oil quality and meet the standard of health quarantine.
Small land-using: an area of 10-20 workshop can meet the demands of processing.

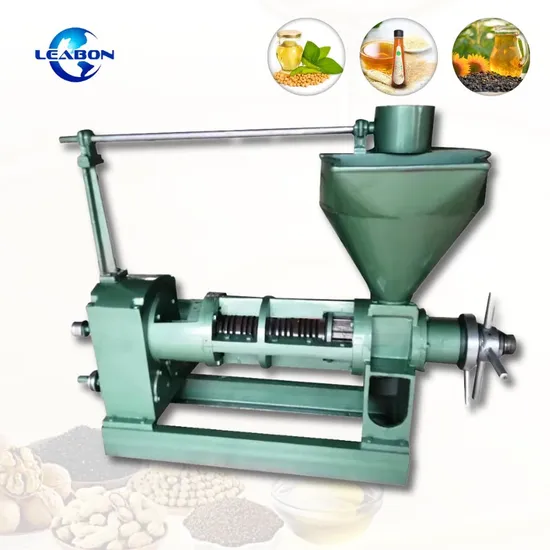

1.Small Type Oil Press MachineProduct Parameter

Model	LBSP-95	LBSP-100	LBSP-120
Capacity	Cold Press: 100KG/H Hot Press: 160KG/H	Cold Press: 105KG/H Hot Press: 200KG/H	Cold Press: 150KG/H Hot Press: 300KG/H
Press screw speed	30-40 RPM	30-40 RPM	30-40 RPM
Gearbox transmission ratio	15/40*15/55=1:9.78	15/40*15/55=1:9.78	15/40*15/55=1:9.78
Matching power	11kw	15kw	15kw
Overall dimension	1640*640*1200mm	1640*640*1200mm	1640*640*1200mm 1760*640*1200mm(Lengthened type)
Single weight	450kg	450kg	700kg
Voltage	3Phase/380V/50Hz	3Phase/380V/50Hz	3Phase/380V/50Hz

2.Big Type Oil Press MachineProduct Parameter

Model	Hydraulic power(Ton)	Heating power (KW)	Processing capacity (kg/h)	Weight (KG)	Dimensions(mm)
6YL-80ZD (Complete Machine)	6-pole 5.5	3	80-160	550	1700*1300*1600
6YL-100ZD (Complete Machine)	6-pole 7.5	3.5	150-260	760	2020*1315*1570
6YL-120ZD (Complete Machine)	6-pole 11	4	260-400	915	2060*1345*1570
6YL-150ZD (Complete Machine)	6-pole 30	5	450-550	1550	2700*2910*1635
6YL-80 (Single Machine)	6-pole 5.5	3	80-160	480	1700*1000*1700
6YL-100 (Single Machine)	6-pole 7.5	3.5	150-260	670	2020*1050*1580
6YL-120 (Single Machine)	6-pole 11	4	260-400	820	2060*1050*1580
6YL-150 (Single Machine)	6-pole 30	5	400-500	1285	2700*1100*1650

3.Hydraulic Oil Press MachineProduct Parameter

Model	Capacity(L/H)	Power(kw)	Working Pressure	Working Thrust	Voltage	Weight(kg)	Dimension(mm)
6YY-250C (Perforated barrel,single barrel)	90L/H	3KW	≤30MPA	147T	380V,50HZ	1300KG	1300*1300*2300MM
6YY-250C (Perforated barrel,double barrel)	90L/H	3KW	≤30MPA	147T	380V,50HZ	1500KG	2050*1300*2300MM
6YY-250C (Row barrel,single barrel)	90L/H	3KW	≤30MPA	147T	380V,50HZ	1400KG	1300*1300*2300MM
6YY-250C (Row barrel,double barrel)	90L/H	3KW	≤30MPA	147T	380V,50HZ	1600KG	2050*1300*2300MM
6YY-250F	100L/H	3KW	≤40MPA	196T	380V,50HZ	1600KG	1300*1300*2300MM
6YY-250D	110L/H	3KW	≤40MPA	196T	380V,50HZ	1700KG	1300*1300*2300MM
6YY-280D (Perforated barrel,single barrel)	110L/H	3KW	≤50MPA	250T	380V,50HZ	2350KG	1300*1300*2550MM

Raw Material
Finish Product
Cake after oil extraction
Other products
Oil Refing MachineIts core technology is to simplify various cumbersome and complicated equipment and operations based on traditional refining technology, and add sand filtration to make it simple and convenient to operate. It uses the filtering effect brought by the mineral sand layer to quickly and thoroughly separate the phospholipids in the crude oil, and obtain clear and transparent oil products.Product Parameter

Model	LBWQ-304Small refining machine
Capacity (6-12HOUR)	100KG
Material	304 Stainless steel
Voltage	220V
Weight	350KG
Heating power	12KW
Dimension (L*W*H)	2500mm*680mm*1600mm

Our Service1.Customized products and packaging;
2.24-hours online inquiring support.3.One year warranty but without the spare parts.4.Video and technical guidance.
Product packaging1.Generally use the export standard wooden for packing , large-scale & production line equipment.
2.Can also be based on the specific requirements of customers for packing .
Company Information Zhengzhou Leabon Feed Machinery Co.,LTD.is a professional and advanced factory which mainly supply poultry feed pellet making line and pet food making line,such as hammer mill,mixer,pellet machine,cooling and screening machine,packing machine .With rich experience for many years,LEABON has been developed into a global company with perfect sales network;efficiently work group;fast delivery and professional transportation.
Nowadays, Leabon machines have been exported to many countries in Europe, Asia, America, Africa and Australia.The customers range from individual to global distributors.
Customer feedback
FAQQ: What if the parts are broken?
A:You can buy spare parts or contact us for replacement,we will give you the best price.
Q:I know very little about this machine, How should I make a choose?
A:please tell us your requirement, we will offer the most appropriate model for you.
Q:I don't know how to install and use it?
A:We will offer video and online instruction.
Q:Do you have a warranty?
A:We provide warranty service for core parts. Related Products
