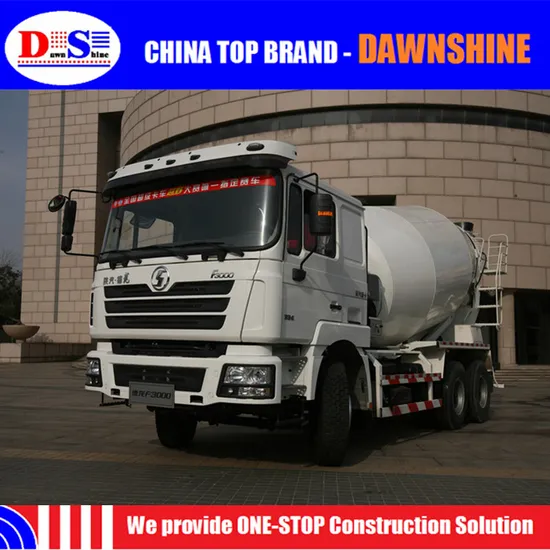

Shacman F3000 336HP ~ 420HP Truck 6X4 6m3 8m3 10m3 12m3 Concrete Mixer Truck for Sale
| US$30,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SX5250GJBFB434
Certification
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Transmission Type
Manual
Emission Standard
Euro II or III
Displacement
9
Payload
20T
Fuel
Diesel
Drive Mode
6x4
Maximum Horsepower
>400hp
Condition
New
Engine
Weichai Cum//Mins 336HP--420HP
Cabin
One Bed with A/C
Colour
White or Yellow, Red
Fuel Tank
300L
Mixer Body
6m3--12m3
Transport Package
Nude
Specification
6825x2490x3630mm
Trademark
SHACMAN F3000
Origin
China
HS Code
8704109
Production Capacity
50000
Packaging & Delivery
Package Size
683.00cm * 250.00cm * 363.00cm
Package Gross Weight
12000.000kg
Product Description
China SHACMAN F3000 6x4 Concrete Mixer TruckProduct Description
| Product feature Strong power with large output torque, lower engine speed at maximum torque, best power and explosive force in the industry. Equipped with dual intermediate shaft transmission with high reliability, suitable for different working conditions, strong climbing ability and high fuel economy. Front and rear multi leaf spring, as well as 4 U-bolts, which is specially designed for heavy-duty transportation. Maintenance-free bearing technology with independent lubrication system. |
| Platform | F3000 | |
| Drive type | 6X4 | |
| Vehicle Weight | GVW:15 tons | |
| GCW:35 tons | ||
| Frame | 850×300(8+7)mm | |
| Wheelbase | 3775+1400mm | |
| Engine | Weichai | Emissions: Euro II to Euro V |
| Displacement: 10L - 12L | ||
| Power: 300 PS - 420 PS | ||
| Torque: 1200 Nm - 2100 Nm | ||
| Cum//mins | Emissions: Euro II to Euro V | |
| Displacement: 10L - 12L | ||
| Power: 340 PS - 420 PS | ||
| Torque: 1200 Nm - 2100 Nm | ||
| Transmission | FAST 10 or 12 speed manual | |
| Clutch | φ430 | |
| Steering gear | ZF8098 | |
| Axle | Front axle: MAN 9.5 ton | |
| Rear axle: MAN 16 ton single or double reduction | ||
| Gear ratio: 4.769 - 5.92 | ||
| Suspension | Multi leaf spring front and rear setup | |
| Tires | 315 / 80R22.5 | |
| Fuel tank | 400 - 700 liter aluminum or steel tank | |
| Cab | F3000 Standard | |
| Configuration | Hydraulic driver seat, four point hydraulic suspended cab, electronically controlled automatic constant temperature air conditioner, electric window, manual cab turnover, telescopic shaft control, ordinary air filter, metal bumper, hinged upper pedal, 165ah maintenance free battery, spare tire rack, remote accelerator controller (electronically controlled engine) shipped with the vehicle | |
Product Series
| We supply different kinds of products with high quality and favorable price. We′re pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. |
After Sales Service
COMPREHENSIVE SERVICE SUPPORTAccording to the standardized system and process file , SHACMAN combines the the advantage of the domestic and abroad resource and builds up the'Headquarter+Abroad Office+Service Network+Specialist' guarantee system to provide the full-scale service guarantee for the customers
FAQ
| Q: Is your company a factory or trading company? Why to choose our company? |
| A: We are trading company with reliable resources to deal at good price, and we provide professional advice to clients between brands and models, so you can get competitive price as well as professional service. Besides, we provide one-stop solution for different machines/equipment based on our rich experience, to shorten time and save cost for clients. |
| Q: How do we control the quality level? |
| A: 1. Mostly of our exported machines/equipment are having ISO Standard. |
| 2. Manufacturer will have Acceptance Test Certificate after manufacturing |
| 3. Furthermore, we have Pre-shipment Report as per client demand with SGS / BV etc. All these mentioned actions will ensure the good quality of goods. |
| Q: Do we accept to customize the products as per requirement? |
| A: Yes, we accept OEM and customize for some brands. Such as color, logo, engine, structure parts etc. |
| Q: What's our guarantee period? |
| A: As per most applications, we provide guarantee for 1 year / 2,000 hours after shipment (whichever comes first) including the main parts like engine / gearbox / pump /main structure etc but excluding easy-wearing parts. |
| Q: How should we get the spare parts when we need in future? |
| A: We always suggest clients to buy together with machine / equipment with 1/2 years spare parts based on technical to avoid any possible sudden need in future. But if not, we can always provide and deliver at any time |
| Q: Do you offer Overseas technical service? |
| A: Yes, we provide full chain service for export, delivery, training, site service.We can send or coordinate with factory professional technical engineer to supervise the site work for free or with reasonable charge rate. |
| Since 2014, We have supplied more than 3,000 units products for dozens of countries around the world and have received excellent feedback |
