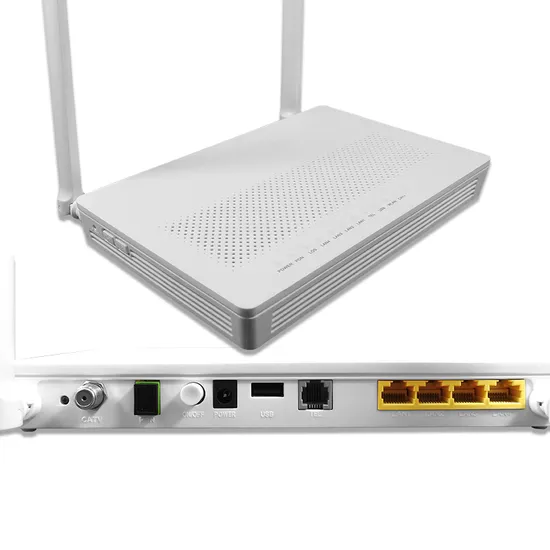

New Cheap Fiber Modem Eg8143A5 1RF+ 1ge +3fe+ 2.4G Sc/APC WiFi ONU Gpon Xpon CATV Ont for FTTH Route
Basic Info.
Model NO.
DJS-EG8143A5
Signal Type
Band Modem
Installation
PCMCIA Card
Clip Function
Soft Modem
Interface Type
USB
Transmission Rate
2g 3G 4G 5g
Application
Enterprise, Household
Transport Protocols
Modulation Protocols
Transmission Mode
Fax Modem
Use
FTTX
Warranty Time
1 Year
Network
Wireless LAN, Wired LAN, WiFi, Wiegand, CATV
Power Supply
DC 12V/1A
Weight
0.4kg
Fiber Type
Single Fiber Single Mode
Color
White
2.4GHz WiFi (IEEE 802.11b/G/N)
8.2 W
Transport Package
Yes
Specification
34 x 175 x 115 mm
Trademark
DJS
Origin
China
Production Capacity
10000month
Product Description
| Parameters | EchoLife EG8143A5 |
| Dimensions (H x W x D) | 34 x 175 x 115 mm |
| Weight (Without power adapter) | Approximately 235 g |
| Operating Temperature | 0-40°C |
| Operating Humidity | 5%-95% RH (non-condensing) |
| Power Adapter Input | 100-240 V AC, 50/60 Hz |
| UNI | 1 x GE, 3 x FE, 1 x POTS, 1 x Wi-Fi (2.4G), and 1 x CATV |
| NNI | 1 x GPON |
| Maximum Power Consumption* | 8.2 W |
| Maximum PoE Output Power | NA |
| Surge Protection | GE port: common mode 4 kV; differential mode 0.5 kV AC power supply: common mode 6 kV; differential mode 6 kV |
| Installation Mode | Desktop |
| Compliance Certification | CE |
| GPON Port | Connector: SC/APC Class B+ Receiver sensitivity: -27 dBm Overload optical power: -8 dBm Type B single-homing Type B dual-homing (supported in Layer 2 forwarding) |
| Ethernet Electrical Port | Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning |
| POTS Port | Maximum REN: 4 G.711A/μ, G.729a/b, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (complies with the SIP protocol) |
| WLAN | IEEE 802.11 b/g/n (2.4G) 2 x 2 MIMO Antenna gain: 2 dBi WMM Multiple SSIDs WPS Air interface rate: 300 Mbit/s |
Q1:Is this your private model?
A: Yes
Q2:Can i buy a sample for the quality tested? What's the MOQ of the product ?
A: Of course, welcome to buy sample to test quality. MOQ usually 100 pieces, special requirement, MOQ will be different.
Q3:Can you printed our logo on the product or do the customized package box for us?
A: Sure, our factory produces OEM/ODM .
Q4:What's the Lead time?
A: It is up to quantity and requirement, standard 2-7 working days.
Q5:What's your warranty time?
A:Warranty is 12 months
Q6:What's the shipment methods? Can we use our own Express account number?
A: Shipping methods is up to your. yes, we can send it via your account of courier.
