Waterproof GPS Gnss External Antenna U-Ggb07A

Product Description

Product Description Waterproof GPS Gnss external Antenna U-Ggb07A
Features
1. Using multi feed point design to ensure the superposition of phase center and geometrical center which could minimize the influence of measurement error to lowest range
2. High gain of the antenna element and the direction map beam width to make sure the receiving satellites performance of low elevation mask
3. Resistance multipath effects board inside could reduce the measurement error caused by multipath
4. Water proof, shock proof and lightning resistance

Application
Survey antenna is the traditional RTK product standard antenna, can be widely used in land survey, marine survey, channel survey, seismic monitoring, bridge survey, container operation, etc.
Product Parameters

Antenna Specification
Frequency Range	GPS L1/L2, GLONASS L1/L2,Beidou B1/B2/B3, SBAS
Impedance	50 Ohm
Polarization	RHCP
Axial Ratio	≤3dB
Azimuth Coverage	360°
Output VSWR	≤1.5
Gainn at Zenith	5.5dBi
Phase Center Error	≤2mm
LNA Specification
LNA Gain	40dB
Noise Figure	≤2.0 dB
Output VSWR	≤1.5
Ripple	±1 dB
Drain Voltage	3--18VDC
Current Consumption	≤45mA
Group Delay	≤5 ns
Mechanical Specification
Dimension	Φ146×58mm
Connector	TNC Female
Weight	630g
Base Screw Thread	5/8"-11UNC
Environmental Specification
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +85°C
Humidity	95% Non-Condensing

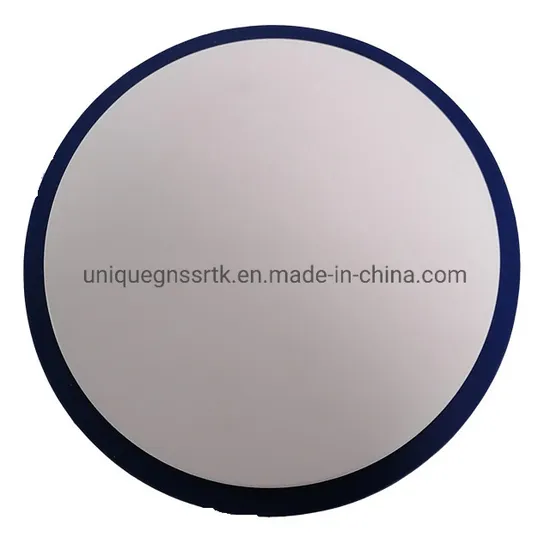

Detailed Photos
Packaging & Shipping
After Sales Service
The warranty period is 12 months. Within the 12 months, if there is any fault caused by non-artificial reason, which can be repaired by the customer themselves, we
can offer the spare parts to the customer free of charge. If there is any problem which cannot be repaired by the customer
themselves, the customer can resent the products to our factory for repairing free of charge, and the freight charge would be
shared by the customer and our company two sides.Under the circumstances out of the warranty period, if there is any problem, we
can repair free of charge for the customers, we just charge for the spare parts at the cost itself, and the freight charge would
be bear by the customers.
If there is any problem caused by human reason within the first year, the service would be the same as the service out of the
