270 Ton Plastic Restaurant Dining Room Chair Stackable Windmill Stool Injection Making Molding Machine

270 Ton Plastic Restaurant Dining Room Chair Stackable Windmill Stool Injection Making Molding Machine

US$32,000.00-34,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-270T IV
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
243/288/338cm³/Sec
Weight
9000kg
Motor Power
30kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
6.0*1.5*2.3m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Automatic Plastic Fork Knife Spoon Pallet Making Injection Molding Machine
Product Parameters
SE-270T IV Plastic Injection Molding Machine Information
Item Unit A B C
Screw diameter mm 55 60 65
Theoretical shot volume cm³ 713 848 995
Shot weight (PS) g 649 772 906
Shot weight (PS) oz 22.9 27.2 32
Length/Diameter ratio L/D 21.8 20 18.5
Injection pressure Bar 2114 1777 1514
Injection rate cm³/sec 243 288 338
Max.screw speed rpm 220
Clamping force KN 2700
Max.daylight mm 885*835
Open stroke mm 560
Space Between Tie-bars mm 620*570
Min mould dimension mm 270
Mould thickness range mm 620
Ejector force KN 80
Ejector stroke mm 150
No.of ejector pins unit 13
Max.motor power KW 30
System pressure MPa 175
Heater input power KW 22
Oil filling capacity L 300
Machine size M 6.0*1.5*2.3
Net weight KG 9000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.

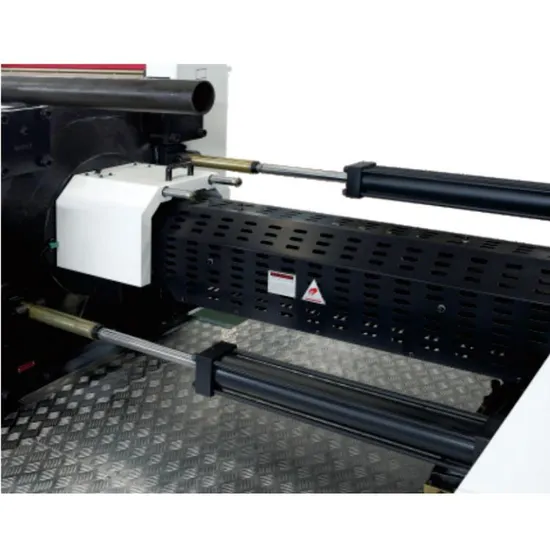

Detailed Photos
