High Speed Small Pet Bottle Blowing Machine Bottle Making Machine

Product Description

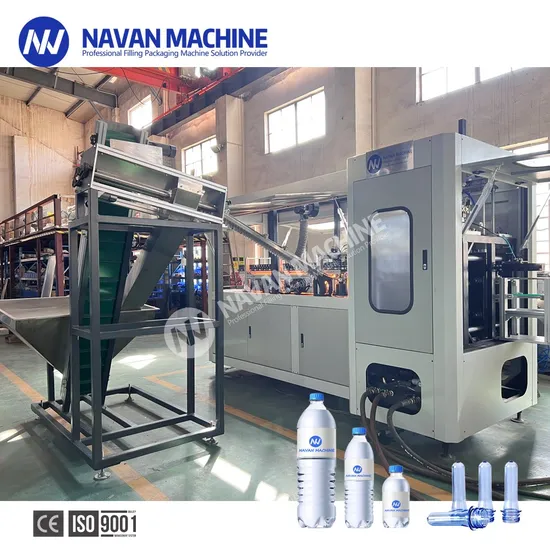

High Speed Small PET Bottle Blowing Machine Bottle Making Machine
NAVAN high speed &energy saving series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 10 cavity,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Product Description
Efficient embryo supply system
The fully automatic preform sorting and loading mechanism not only achieves fast and efficient sorting and loading process to save labor costs but also further improves the entire equipment workflow stability.
Preform separation
Preform separation:When the preform signal is detected, the preform separation cylinder moves forward to insert preforms, the degermination cylinder rises to degerminate, and the preform separation cylinder moves to the left to separate preform.
Intelligent heating system
The lamp is used to penetrate the preform for heating,making the preform stretch more evenly with high transparency.Equipped with a stainless steel mirror reflective plate to make full use of the heat energy of the lamp to shorten heating time, reduce energy consumption and increase production capacity.The temperature of each layer of lamp tubes can be adjusted independently, and the temperature can be adjusted up and down,front and back according to the customer's different preform.
Servo mold clamping system
The mold clamping system is driven by a servo motor and mechanical connecting rod transmission.The mold and bottom mold are closed synchronously through servo motors.The back of the mold base is equipped with a high-pressure boosting plate and high-pressure mold locking, which effectively reduces the visibility of the mold closing line of finished bottles and ensures the quality of the bottles.The mold adopts a drawer-type structure, which makes it easy to replace the mold, and the operator can complete it within half an hour.

Servo stretching system
Servo motor drives stretching system.The servo motor drives the gear rack to pull stretch, the independently developed photoelectric limit and mechanical limit dual protection modes prevent the stretching rod from touching the bottom mold.The first and second blow cycle times can be adjusted individually on the console.According to different bottle preforms and different bottle types of customers, the stretching rod can be quickly adjusted.It adjusts automatically and has high flexibility.
Cooling/chilled water circulation system
Cooling and heating head device ensures cooling of the heating head after it comes out of the bottle.There is a cooling water channel under the heating box. When the preform is heated, the cooling water channel is used to block the heat of the lamp. There is a cold air system below the cooling water channel to cool the bottle mouth and protect the mouth from deformation. Chilled water flows to the mold to quickly cool the mold and improve the production efficiency of the whole machine.
Product Parameters

Model	SSLD-4-1.5L	SSLQD-6-0.6L	SSLQD-6D-1.5L	SSLQD-8-0.6L	SSLQD-8D-1.5L	SSLQD-10-0.6L
Production Capacity(BPH)	4000-6000	9000-12000	8000-11000	12000-16000	10000-15000	16000-20000
Container volume(L)	0.3-1.5	0.3-0.6	0.3-1.5	0.3-0.6	0.3-1.5	0.3-0.6
Bottle height(mm)	120-330	120-330	120-330	120-230	120-330	120-330
Bottle diameter(mm)	45-105	45-65	45-105	45-65	45-105	45-65
Dimensions(m)	4*1.5*2.67	5.4*1.6*2.67	5.9*1.6*2.67	5.9*1.6*2.67	6.9*1.6*2.67	7.2*1.6*2.67
Working pressure(Mpa)	0.8	0.8	0.8	0.8	0.8	0.8
Voltage	380	380	380	380	380	380
Installation power(kw)	55	90	95	127	127	159
Mold cooling(HP)	5	8	10	10	12	12
Weight(T)	3.5	5.5	6	6	6.5	7

Company Profile
Navan machine are utilized in large and small companies all around the world since 1990s.
Customized service,Navan machines can design the machines according your requirements.
Navan machines provide complete full produciton line from A to Z.
About Us
Navan Industrial has invested its best resources in technical research, to design and realize innovative in bottle blowing, filling, capping , labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years .
At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development.
Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world since 1990s.
Massive experience gained through the years of water, juice , soft drink , beer, honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
Exhibitions & Customers
Packaging & Shipping

Certifications
FAQ
Q 1 When can I get installation from you? how much the cost?
When you finish the preparation conditions(water resource,electricity,air supply,production materials) according to our designed layout , please contact with our sales manager, we will dispatch engineer to you.
* Inspect and improve connection jobs together with your team .
* Guide your staff to operate machines , and explain how to operate and maintain machines .
* Collected your your comments on our machines , we will send feedback to our technical team to improve our machines continuously. The customer should be responsible for the room, meals and board and the two-way air tickets and visa and fee as well the allowance 100 USD per day for each person. And should be also responsible for the engineer's personal safety. Note: Normally when your preparation is done,you can contact with our sales people and cooperate us to get the visa for the engineer and our engineer will be there within 15 days more or less .
Q 2 How long time for installation?
According your machines order,we will send one or two engineers to your plant,it will take about 15 days to 30 days.
Q 3 When can I get my machine after I paid?
Normally production time is around 30-60days , it depends on your ordered machines and quantity . The shipping time is based on your destination port.(Usually we use Shanghai port , Ningbo Port as loading port )
Q 4 How about the spare parts?
We will send one year enough easy broken spare parts together with the machines together when delivery. During the warranty time, we will supply the spare parts with our cost price including and delivery fees.
Q 5 What`s your payment term?
We accept TT , TT/LC/Western union.etc
Q 6 How to test machine before delivery?
We will connect all machines in line make them running over 8 hours non-stop , then take and send testing videos. Or we could live video inspection .
Q 7 How about the Packaging details?
Standard export packing to ensure that the product packaging integrity and safety. ( Heavy products adopt export plywood case packing with waterproof film . Small products use thick carton packing waterproof film)
Q 8 Do you have reference project?
We have reference project in most countries. After getting the permission of the customer who has brought the machines from us ,we will send you their contact information and arrange your visiting to their factory. And you are always welcome to come to visit our factories ,and inspect the machine running in our factory .We will be glad offer necessary supports on hotel booking , transportation , VISA application. OR you can get video of our reference running machine on our website too .
Q 9 Do you provide turnkey project?
YES Turnkey project is available .We can help you to start a new beverage / water factory from A to Z.
Q 10 Do you have agent and after-service stations?
So far we have agent in Kampala ,Uganda and Dubai ,UAE .You are mostly welcomed to join us!
Q 11 Do you have any certificate?
We have been certificated by the famous certification authority such as CE , ISO, SGS ...etc
Q 12 Do you provide customized service?
We are able to develop the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will offer you professional advice based on our 30+ years beverage machine industrial experience.
Q 13 What`s your guarantee or the warranty of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee and supply life-long technical support for free
