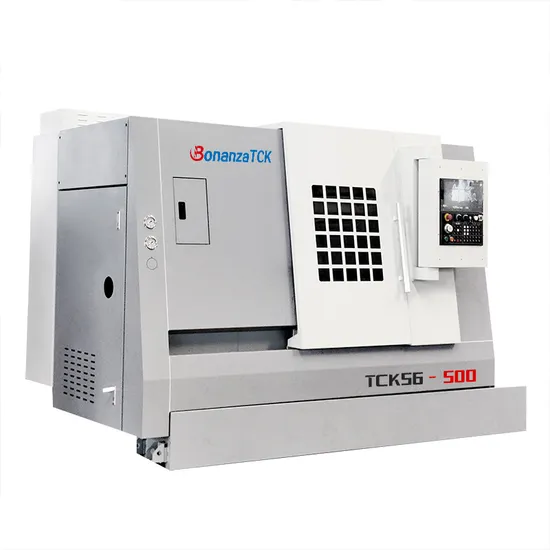

Dual Axis CNC Lathe, Dual Tool Holder, Four Coordinate CNC Machine Tool Tck56-500

Product Description

Product Parameters

Projects		Units	Specifications	Remarks
Maximum turning diameter on bed		mm	560
Maximum cutting length		mm	500
Standard cutting diameter		mm	280	Taiwan 8 station
Maximum cutting diameter		mm	350
Standard cutting diameter		mm	210	Taiwan 12 stations
Maximum cutting diameter		mm	280
Maximum turning diameter on a skateboard		mm	350
Spindle end type and code			A2-6	Integral spindle unit
Main shaft hole diameter		mm	65
Maximum pass bar diameter		mm	50
Headstock	Spindle speed range	r/min	50 to 4500
	Maximum spindle output torque	Nm	177
	Spindle speed series		Stepless speed change
	Main motor output power	kW	15 (15 minutes) /11 (rated)
Chuck	Chuck diameter/type	mm	8"
X-axis fast shift speed		m/min	30
Z-axis fast shift speed		m/min	30
X-axis stroke		mm	200
Z-axis stroke		mm	560
Overall tailseat stroke		There is no	450
Tailstock sleeve cone hole taper		Mohs	5#

Product Description
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
