Inner Tube Motorcycle Tube Inflate Machine

Product Description

I. Introduction
According to the data requirements, combined with the equipment configuration of domestic inner tube production enterprises, the main equipment distribution and process of the production line are summarized as follows:
Process equipment distribution: Rubber raw material → XQL-80 rubber cutting machine →X (S) N-35kneading machine (Second stage process; adding auxiliary raw materials)→ elevator → XK-400 open mixing mill machine . Second stage process)→ XK-400 open mixing mill→ XLJ200 rubber filter machine → XJ-150 rubber extruder →Cooling+cutter→ inner tube joint machine → Inflation and other auxiliaries→ inner tube vulcanizing machine→ LLN-650(3.00-17 3.00-18 4.00-8 below)→deflation-complete.
It can improve the performance and quality of inner tube by refining the raw material with two stages. It has been popularized by many cooperate enterprises. Devices in this configuration can be inlarged with reserved interface.
Rubber Inner Tube Making Line
II.Machine Details

ITEMS	TECHNICAL PARAMETERS
Rubber Cutter XQL-80	Type	XQL-80
	Width of knife mm	660
	Knife stroke mm	680
	Cylinder total pressure Kn	80
	Stroke time s	14-16
	Motor power kw	5.5
	Overall size LXWXH mm	2122x1440x2509
	Weight kgs	1000

RUBBER KNEADER XSN-35X20	Total volume of mixing chamber	75L
	Working volume of mixing chamber	35L
	Driving motor power	55KW
	Tilting motor power	2.2KW
	Tilting angle	140°
	Rotational speed of the rotor (front/rear)	30/24.5 r/min
	Pressure of compressed air	0.5-0.8MPa
	Capacity of compressed air	≥0.9m³/min
	Pressure of cooling water	0.3-0.4MPa
	Pressure of heating steam (plastic mixing)	0.5-0.8Mpa
	Overall dimension	3200X1900X2950mm
	Weight	6500Kg

Elevator	Hopper Capacity	55L
	Main Motor	1.5 kw
	Gearing	Drive chain device
	Electrical control box	Suspension
	Speed	13.5 m/min
	Load	55L
	Overall size	3160*550*1700mm
	Weight	About 1500kgs

Open Mixing Mill XK-400	Roll Diameter	400mm (16'')
	Roll working length	1000 mm
	Front Roll Liner speed	18.65m/min
	Speed Ratio of rolls	1:1.27
	Max roll space	0.1-10mm
	Compound feeding capacity	18-35kgs
	Motor Power	37kw
	Equipped with safety lever, receiving tray, two rubber knives

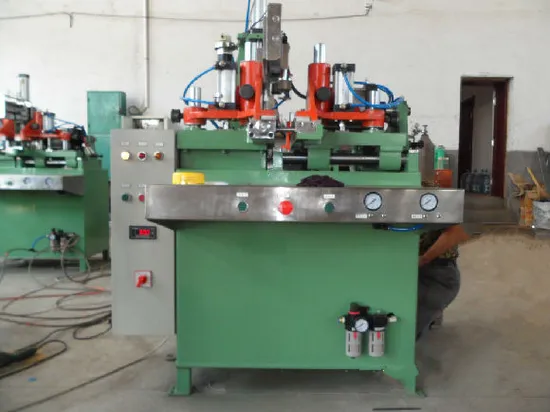

Inner tube Splicing machine	Docking width	50-120mm
	Docking thickness	0.5-3mm
	Minimum docking length	700mm
	Maximum docking pressure	2.2Kn
	Maximum clamping pressure	12Kn
	Weight	800kgs

Hot feed rubber extruder XJ-150	Screw diameter	Φ150
	Length/diameter ratio of screw	6:1
	Screw speed	0-60r/min
	Power of motor	55 kw
	Maximum output from extrusion	1050kgs/h
	Overall Size	3100x1050x1360mm

Hot Rubber Filler Machine XJ-200	Screw diameter	Φ200
	Length/diameter ratio of screw	4.5:1
	Screw speed	45r/min
	Power of motor	75 kw
	Maximum output from extrusion	800kgs/h
	Overall Size	3600x1000x1560mm

Press Inner Tube Motorcycle NT-LDX650
	Total Pressure	0.25MN
	Mould Height	70-120mm
	Heating Power	5.5kw
	Open/Close Time	4.2s
	Working Layers	2
	Weight	16000kgs
