Powder Coating Package for Small Metals Finishing (Powder booth/Curing Oven/Gun)

Product Description

Product Description

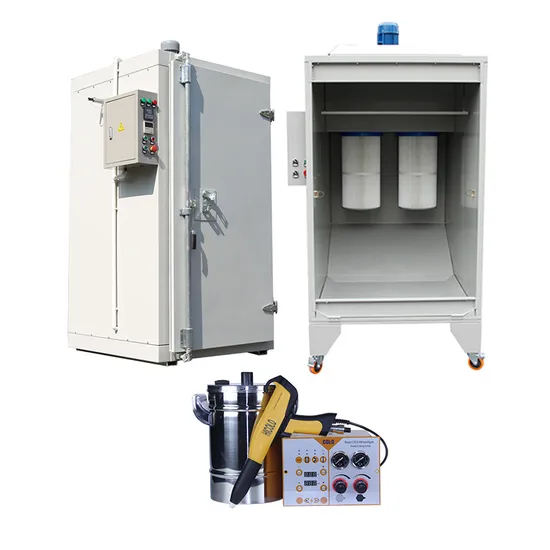

Powder Coating Package for Small Metals Finishing (Powder booth/Curing Oven/Gun)
This small powder coating package with low invest and supports small scale industrial business, gives an easy and quick start of basic powder coating jobs. It is ideal for objects finishing by using less cost and labor. COLO powder coating equipment are designed for increased efficiency and improved application quality.
Detailed Photos
COLO-800D-H Powder Coating Machine
COLO-800DT-H powder coating machine with 10lbs hopper is very practical for small to medium powder coating productions. The intelligent system has a great popularity worldwide because of its excellent performance, which produces smooth, homogeneous powder clouds that leaves a uniform paint finish on the part.
Configurations and Features
1. Adjustable voltage from 0-100kV, and the voltage changes are reflected in the clear LED screen.
2. 3 one-touch intelligent buttons stands for 3 pre-set application programs which are very convenient to change different shapes of parts
Flat coating program: ideal for flat shape workpieces.
Corner coating program: ideal for complex shape parts or deep corners.
Recoating program: ideal for recoating of parts which have been already coated.
COLO-1115 Powder Coating Booth
These Powder Coating Booth make efficient use of shop space and are designed for small batch powder coating job. It's design allowing for most types of Spraying Application, very useful type for various metalworks,like gas cylindersbike frames, steel pipes,components etc.
Features
1. The powder spray booth is constructed by powder-coated cold-rolled sheet, durable and easy for cleaning.
2. Filter cartridges are detachable and interchangeable allows convenient color change operations.
3. Pulse-jetting filter cleaning controlled by solenoid valve prevents powder accumulation and extends filter life.
4. A set of 1.5 kw energy-saving fan is placed on the top of booth to save space.
5. Small and compact design of powder booth is a perfect solution for customers with limited workshop space.
Specifications

Model	COLO-S-1115
Booth Type	Closed
Operator dimensions	Width1000 x Depth1000 x Height1500mm
Overall dimensions	Width1200 x Depth1500 x Height2000mm
Weight	200kg
Power supply	Electric
Nominal power	1.5kw
Voltage	380V
Frequency	50-60Hz
Filters	Polyester
Filters count	1(325*900)
Filters hang type	Easy for change
Filter cleaning system	Pneumatic
Warranty	12 months

COLO-1688 Powder Coating Oven
COLO-1688 Batch powder coating oven suitable for curing small or medium parts ,for maunal and small productions .Our COLO brand powder coating oven features up for uniform heating temperature by the good design air flow system.Less cost energy.These type is widely use for many parts.
Curing metals like: Car wheels,bike frames,steel pipes etc. Features
1. Electric controller allows to easily set temperature & time as well as displays actual inside temperature.
2. 0.55kw circulating fan provides excellent heating uniformity for consistent, high quality curing results.
3. Voltage for 110v or 220v standard can be chosen based on the needs of customers.
4. High-density rock wool insulation with 100mm thickness for Interlayer keeps balanced temperature inside the oven.
5. With 2 shelves and 5 rails per shelf, there's plenty of space for hanging coated workparts.
Specifications

Model	COLO-1688
Internal Size	Width845 x Depth845 x Height1600
Overall dimensions	Width1400 x Depth1100 x Height2200
Power supply	Electric/ 6.5kw
Warn-up time	15~30min.(180° C)
Temperature max	250° C
Temperature stability	< ± 3-5°C
Ventilation performance	805-1677m3/h
Circulation	Vertical,variable through holes on the walls
Motor Power	0.55kw
Warranty	12month

Application
Customers Reviews

Packaging & Shipping
Company Profile
Hangzhou Color Powder Coating Equipment Co., Ltd. is experienced manufcturer of powder coating equipment in china. Our product range from manual and automatic powder coating machines, powder coating reciporcators, powder spray booths, powder recovery systems, electric/gas/diesel curing ovens, powder coating spare parts, after-market replacement parts, and complete powder coating lines. PLEASE SEND US INQUIRY OR CALL FOR ORDERING, SHIPPING QUOTES, ESTIMATED LEAD TIMES.
