Plastic Recycling PP Bags PE Film Washing Recycling Line

Plastic Recycling PP Bags PE Film Washing Recycling Line

US$75,000.00
1-4 Sets
US$65,000.00
5+ Sets

Basic Info.

Model NO.
ME-300, ME-500, ME-1000
Material Processed
soft PE PP plastic film, bag, etc.
Plastic Type
PE PP
Screw
Single-Screw
Automation
Automation
Computerized
Non-Computerized
Certification
ISO9001:2008, CE
Machine Type
Plastic bags Waste Washing Line
Voltage
380V, 50Hz or customized
After-sale Service
Engineers available to service machinery overseas
Material of Washing Part
Stainless Steel
Condition
New
Motor Brand
Siemens Beide made in China
Inveter Brand
ABB, Delta
Operation Model
manual button or auto screen touch
Bearing Brand
S K F, NSK, TWB
Gearbox Brand
Guomao top brand in China
Final Material
Plastic film/bag scrap
Raw Material
Soft plastic film/bags
Blade Material
SKD-II or D2
Transport Package
Standard Pack Waste Recycling Film Washing Machine
Specification
With capacity 300-1000kg/hr.
Trademark
Mooge Tech
Origin
Jiangsu, China
HS Code
8477800000
Production Capacity
30 Sets/Year Waste Recycling Film Washing Machine

Product Description

Product Description
This Plastic Recycling PP Bags PE Film Washing Recycling Line is designed and manufactured by MOOGE TECH, which is widely used for waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag, etc.
The waste dirty material go through crushing, washing, drying, and collecting process will turn to be clean flakes for pelletizing.
We can also customize the washing line according to buyer's material and product requirement.
Product Parameters
We have the capacity from 300kg/h to 1000 kg/h of ME-Series Waste LDPE Agriculture Film Plastic PP Bags Recycling Washing Machine for your choice. We can also design the layout according to your factory's actual situation in "L" or "U" type.
Model
Capacity
Installed Power
Water Supply
Manpower
Area Required
ME-300
300 kg/hr
200 KW
6-8 m3/hr
2-3 Person
40*4*5m
ME-500
500 kg/hr
350 KW
8-10 m3/hr
4-6 Person
40*4*5m
ME-1000
1000 kg/hr
600 KW
15-20 m3/hr
8-10 Person
55*6*6m

Working Flow
Working Flow (500kg/h for example)
--- Belt conveyor: feeding the plastic film/bags into the crusher. If there is any scrap metal inside the material, semi-auto metal detector is suggested. --- T-series crusher: with water, crush plastic film/bags into small size (size is adjusted as buyer request)--- Friction washing loader machine: friction washing the material and loading out the material--- Floating washing tank: washing out the sand, soil and dirty from the material--- Screw loader: loading the material to the next step--- Horizontal friction washing dewatering machine: with high rotary speed washing out dirty and remove dirty water--- Floating washer tank: washing out the dirty from the material--- Friction washing loader machine: friction washing the material and loading out the material--- Dewatering machine: remove the water from the material--- Hot air drying system: drying the material--- Storage hopper: collect the material--- Control cabinet: control the line on/off (famous brand such as Schneidor, Siemens, etc.) Detailed Photos

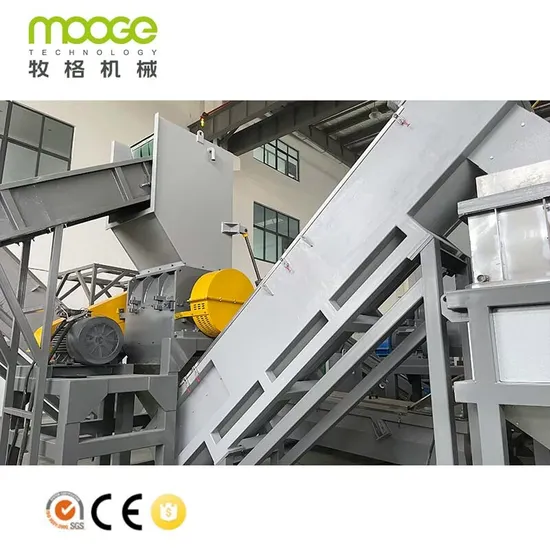

Plastic crusher machine
Function: crushing the pe pp film/bags into small pieces
With water inlet do wet crushing
The rotary and fixed blades inside the crusher made by SKD-II or D2 are more wider, which will save the blades cost
Use the big roller bearing ensure durable use
Bearing house is installed outside of the crusher chamber so no dirty goes inside
Friction washing loader
Function: Friction washing the plastic film/bags scraps with water and loading up it
Up and down both mounted with bearing design ensure the low maintenance and long use life
With water injection system to cleaning the screen
Bottom with water drain system The machine part contact with water made by SUS304
Floating washing tank
Function: Floating washing separate the sand, soil and other dirty The roller is specially made can have more washing for pe pp scraps but less water take out
Tank bottom with double conical design to leave the dirty down in it, when change water drain out all the dirty with water
The machine part contact with water made by SUS304
Horizontal dewatering machine
Function: take out dirty and remover water With high raotary speed reach up to 1500rpm
With the roller bearing and fixed outside of the rotor for long use life
Inside with mesh layer, mesh made by SUS304 with the diameter 2.5mm
With water spray system to clean the mesh
Electric Cabinet Function: Control the whole line on/off It with the thermorelay used to protect the motors, it will trip if over loaded;
The extruder barrel heating is automatic controlled by the PID temp. meter
Temp. Meter: OMRON brand of Japan
Packaging & Shipping
• For the loose cargo we will packing by wooden box
• For the full container loading we are packing the machine by film and some on pallet accordingly
• We can ship the goods by air or by sea
• We will send pictures of cargo loading to our client to check and keep recording
• We can send cargo to client's warehouse to loading
Customer Onsite
We sold the plastic recycling machine to hundreds of buyers from more than 100 countries in the world. Our high quality machine and good service are all well received by numerous customers from domestic and overseas. And we are expecting to seek the long-term business partner all over the world.
Company Profile
We attend the CHINAPLAS every year and take with our machine to test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc.
Sincerely welcome you to our factory for visit and discuss technical issues.
After Sales Service
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.

In order to match your requirement and provide you a proper quotation, please Let us know:
• What material do you want to recycling? PE film? PP woven bag? HDPE/PP bottle? or other plastic?
• What capacity(kg/h) do you want? we have 300kg/h, 500kg/h, 1000kg/h or larger capacity....
• What is the final size(mm) of flakes you want?
• Other special requirements about the Plastic BOPP Laminated Film PP Woven Bag HDPE Foil PE LDPE LLDPE Crushing Washing Plant Recycling Line
you want?
