Food Grade Portable Juice Filtration Machine Stainless Steel Bag &Cartridge Filter Housing Factory

Product Description

Food Grade Portable Juice Filtration Machine Stainless Steel Bag &Cartridge Filter Housing Factory

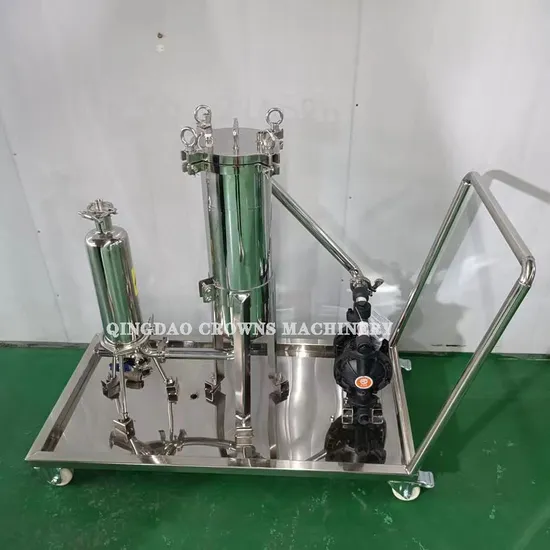

IntroductionMobile filtration system: The mobile trolley bag filter system includes a standard bag filter, a pneumatic diaphragm pump, a trolley, and the diaphragm pump feed port can be connected with DN25, DN50, etc. After the liquid material is pumped into the pump, it passes through the bag filter, and is filtered out by the pressure generated by the steam pressure, and then flows out from the outlet of the filter Both the filter and the diaphragm pump are installed on the installation platform of the trolley, which can be moved to any working production line at will, and fixed and installed in one step for filtration. lt is convenient to move and operate, and it is the best choice for filtration of materials with high viscosity. lt is the best choice for grease filtration, resin filtration, white latex filtration and glue filtration.Filter bags with different materials can be used in the fields of application: coatings paints, inks, latex paints, paint raw materials and solvent filtration, printing ink,printing ink filtration.
You can decide whether to equip a pump and cart together based on your filtering needs.
Some Feedback On Filtering Effectiveness From Our Customers
Beer Filtration Effect Coconut Oil Filtration Effect
*About Bag Filter*

Bag Filter
Cylinder diameter	φ219-φ1300mm
Material	304/316/2205, etc.
Filter bag size	180*430/180*810/105*230/150*380/150*560mm, etc.
Filter accuracy	0.2-200 microns
Inlet and outlet connection method	clamp quick connection/flange/thread
Design pressure	0.8-1.6Mpa
Design temperature	70ºC-150ºC (depending on the temperature resistance of the internally installed filter bag)
Sealing ring material	food grade silicone/fluorine rubber/EPDM/nitrile rubber
Surface treatment	food grade internal and external polishing/internal grinding and external sandblasting (customized according to your requirements)

*About Cartridge Filter*

Cartridge Filter
Cylinder diameter	φ102-φ350mm
Material	304/316/2205, etc.
Filter Cartridge size	10inch/20inch/30inch/40inch, etc.
filter accuracy	0.1-100 microns
Inlet and outlet connection method	clamp quick connection/flange/thread
Design pressure	0.6-0.8Mpa
Design temperature	70ºC-150ºC (depending on the temperature resistance of the internally installed filter bag)
Sealing ring material	food grade silicone/fluorine rubber/EPDM/nitrile rubber
Surface treatment	food grade internal and external polishing

Why crowns machinery?
★We provide genuine, cost-effective materials with full inspection support.
★We assist in developing tailored, professional filtering solutions.
★Every product undergoes rigorous quality control before shipment to ensure both quality and quantity.
★Our comprehensive production planning ensures timely and efficient delivery.
★Our responsive after-sales service is available online to address any concerns, ensuring a seamless experience for our customers.
Different Models
Supporting for different combination of bag filter,cartridge filter,self cleaning filterTwo stage Filtration System
combination of 1 unit bag filter and 1unit cartridge filter with electric pump:
The first filter stage is bag filter, which can be customized for 1-24 bags, with filtering accuracy 0.2-500 microns.
The second stage is high precision cartridge filter, with filtration accuracy 0.01-300 micron.Three Stage cartridge filter system
combination of Three units cartridge filter with pneumatic pump:
high precision cartridge filter with microporous cartridge, with minimum filtration accuracy 0.01 micron.
the cartridge size is :10inch /20inch/30inch/40inch etc.
More Custom Cases

Workshop Display
Company ProfileQingdao Crowns Machinery Co., Ltd. is located in Huangdao District, on the west coast of Qingdao, Shandong Province, China. With over 10 years of expertise in designing and manufacturing a wide range of industrial filtration equipment, we are committed to providing comprehensive, high-quality filtration solutions. Our products have been exported to numerous countries worldwide, serving customers across various industries with reliable, one-stop filtration solution.
FAQ
Q1: Where is your factory located?
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for filter equipment ?
A2: Yes, we can provide one-stop filtration solutions to customer according to customer's requirements.
Q3: How about the quality control in your factory?
A3: Production strictly according to CE / ISO standards. All our machines will be tested before packaging.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only the technology but the solution.
Q5: What's your payment terms?
A5: For small orders: 100% T/T in advance. For large orders: 30% T/T deposit 70% T/T balance before shipping.
Q6: What is the delivery time of the product?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the product ?
A7: All products, except for consumables, come with a one-year warranty.
Q8 : Can we use our own design?
A8: Yes, OEM/ODM supporting. Just tell us your requirements.
