Eye Drops Small Bottles Injection Molding Machine
| US$26,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
IBM35D
Making Method of Parison
Injection Blowing
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Application
Eye Dropper, Medicine Bottle, Chemical Bottle
More Application
Milk & Yogurt Bottle
Oil Pump and Hydraulic Valve
Yuken Brand Ex Japan.
Pneumatic Valve Connector
Festo Ex Germany.
Oil Seal
Valqua Brand Ex Japan
Controlling System
Act Technologies
Electronic Rulers
Italy Gefran
Molded Case Circuit Breaker, Contactor,
Scheider Brand Ex France
Total Rated Power with Mold Heating
21/25 Kw
Machine Weight
4 Ton
Opening Stroke of Mold Platen
120mm
Clamping Force of Injection
350kn
Clamping Force of Blowing
40kn
Min. Mold Thickness (H)
180mm
Max. Platen Size (L*W)
420*340mm
Transport Package
Film Packing
Specification
IBM35D
Trademark
DAWSON
Origin
Jiangsu Zhangjiagang
HS Code
8477301000
Production Capacity
as Per Samples
Product Description
DAWSON MACHINERY & MOULD GROUP Our customers are all around the world.Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

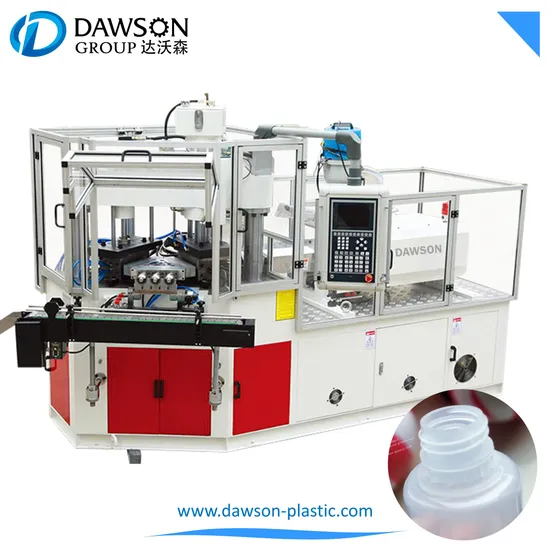

Injection Blow Molding Machine IBM35D
INJECTION BLOW MOLDING MACHINE IBM35D PARAMETERS
| Item | Unit | Date | |
| Injection system | Screw Diameter | mm | 40 |
| Max. Theoretical injection capacity | G | 176 | |
| Heating capacity | KW | 7.2 | |
| No. of heating area | Qty | 3 | |
| Clamping & blowing system | Clamping force of injection | kn | 350 |
| Clamping force of blowing | kn | 40 | |
| Opening stroke of mold platen | mm | 120 | |
| Max. Platen size (L×W) | mm | 420×340 | |
| Min. Mold thickness (H) | mm | 180 | |
| Heating capacity of mould | KW | 2.8 | |
| Product dimension range | Suitable bottle range | ml | 3-800 |
| Max. bottle height | mm | ≤180 | |
| Max. Dia. of bottle | mm | ≤80 | |
| Dry cycle | s | 4 | |
| Hydraulic driving system | Motor power | KW | 11/15 |
| hydraulic pressure | Mpa | 14 | |
| Pneumatic system | Min. Air pressure | Mpa | ≥0.8 |
| Discharge rate of compressed air | M3/mm | ≥0.7 | |
| Cooling system | Water flowage | M3/h | 3 |
| Total rated power with mold heating | KW | 21/25 | |
| Machine information | Dimension | M | 3.1×1.2×2.2 |
| machine weight | Ton | 4.0 |
Feature
* Excellent plasticizing unit
* Bridge clamping unit for synchronism mould open/close, cycle time less
* Servo system can save 35 to 40% energy compared to normal system
* Servo rotary, precise, long using time, easy maintenance, save energy.
* Optional injection with all-electric way, replacing hydraulic way * CE certificate
Configuration of Injection Blow Molding Machine
* Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle check modular valves): YUKEN brand Ex JAPAN.
* Pneumatic valve connector: FESTO Ex Germany.
* Oil seal: VALQUA brand Ex JAPAN.
* Controlling system: Act Technologies
* Electronic Rulers: Italy GEFRAN
* Molded case circuit breaker, contactor, Thermal overload relay: SCHEIDER brand Ex FRANCE.
