Ollital Open Mill for Rubber Two Roll Mixing Mill Machine

Product Description

↓ ↓ ↓ A variety of styles for you to choose from. There is always one suitable for you! ↓ ↓ ↓ Vulcanizing machine Two Roll Mill Injection molding machine Product Description
- Rubber mixer (rubber open mill): Used to mix, grind and masticate raw rubber and additives to achieve uniform dispersion and improve vulcanization performance.- Rubber extruder: used to extrude the mixed rubber material into continuous strips, belts or pipes of various cross-sectional shapes, often used to make rubber seals, pipe fittings, etc.- Rubber Calender: The mixed rubber material is extruded and calendered through a calendering roller group to make a rubber sheet or film of a certain thickness, which is often used in the production of rubber floors, gaskets and other products.- Rubber injection molding machine: Inject heated and softened rubber material into the mold and use high-pressure injection molding to produce various complex-shaped rubber products, such as seals, parts, etc.- Rubber vulcanizing machine (rubber vulcanizing pot): Put the formed rubber products into the vulcanizing tank, and perform vulcanization treatment under certain temperature, pressure and time conditions, so that the rubber products obtain ideal physical and mechanical properties.
Product Parameters

Model	OLT-ZG-260	OLT-ZG-300	OLT-ZG-360	OLT-ZG-400
Mixing capacity	2-12kgs	0.2-10kgs	2-30kgs	3-40kgs
Drum temperature	Normal temperature ~tap water ºC	Normal temperature~300ºC	Normal temperature ~tap water ºC
Heating method	Friction heating	Oil heating	Friction heating	Friction heating
Temperature accuracy	No requirement	±2ºC	No requiremen	No requirement
Drum speed	Fixed speed 19(r/min)Frequency conversion speed adjustment can be added			Adjustable speed
Drum speed ratio	1:1.35(be customized)	1:1.27(be customized)	1:1.35(other ratios can be customized)
Roller size	φ250mm×L 650mm	φ300mm×L720mm	φ360mm×L910mm	φ400mm×L1100mm
Roller spacing	0.1~12mm Adjustable	0.1~10mm Adjustable	0.1~16mm Adjustable	0.1~16mm Adjustable
Protection device	Multiple touch-type emergency stops (with reverse function,humanized design,no work-related injuries to operators)
Motor	15KW1 set	15KW1 set	18.5KW1 set	30KW1 set
Power	15KW	20KW	18KW	30KW
Volume	2300×1000×1580mm	2600×1150×1480mm	2800×1280×1580mm	3600×1480×2350mm
Roller lubrication	Especially good wear-resistant bearings have a large contact area.Extended service life by 2/3 compared to traditional copper sleeves
Mechanical structure	Steel plate (lighter weight,smaller volume,higher mechanical strength and good toughness than traditional cast iron) stainless steel box and door panel
Power supply	54,AC380V	5φ,AC380V	54,AC380V	54,AC380V
Weight	1300KG	1600kg	2600KG	3800KG
More models

* All models can be customized according to drawings and needs. Contact an engineer today to learn about the most suitable and cost-effective solution!

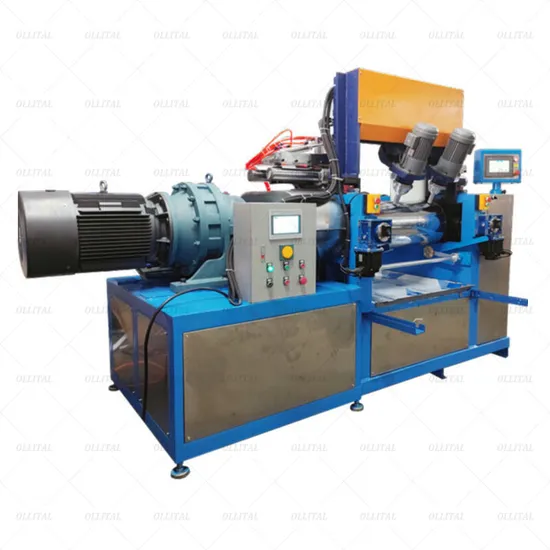

Products real shot
1.
Excellent material
Made of high-quality materials, it has the characteristics of wear-resistant and corrosion-resistant, high strength, excellent thermal conductivity, good stability, easy cleaning and maintenance, and strong reliability. This excellent material ensures long-term stable operation of the equipment, improves production efficiency and product quality, and is an important equipment in the field of rubber processing.2.
Precision manufacturing
Precision manufacturing, with the characteristics of precise processing, high-precision control, strong stability, wear and corrosion resistance, precision transmission, convenient operation and high degree of automation.3.
Attention to detail
Fine adjustment, reasonable structure, complete safety, easy cleaning and maintenance, intelligent control, reliable materials and user-friendly operation. These features ensure the efficient, safe and reliable operation of the equipment, improve production efficiency and product quality, and meet the needs of the rubber processing process.4.
Various styles to choose from
A variety of styles to choose from, including diverse capacities, flexible heating methods, diverse structural designs, high degree of automation, excellent safety performance, energy saving and environmental protection, convenient operation and wide range of applications. The selection of these styles is flexible and can meet the production needs of different scales and process requirements, providing important processing equipment for the production of rubber products.
