Low Power Low Price Good Quality 24 Dies Fine Copper Wire Drawing Machine with Imported Parts

Product Description

Low Power Low Price Good Quality 24 Dies Fine Copper Wire Drawing Machine with Imported Parts Product Description
Introduction:
The production line is highly integrated by uncoiling, leveling, forming, cutting off, punching, receiving and related process.The whole production line is controlled by PCL program.Operators can select a preset program to run the whole line automatically by using touch screen.The methods of operation include automatic control, manual control, separate operation and emergency stop .

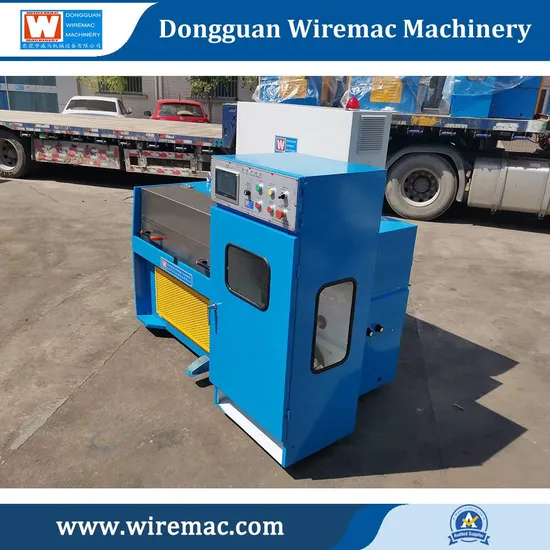

Fine Wire Drawing Machine:
Characteristics
1. Automatic tension control by dual-inverter.
2. Zero-slip pilot design, high productivity.
3. Low power consumption, a reduction of 20%-25% compared with the traditional type of machine, reduced production costs.
4. Widely used imported advanced parts and components ensure high reliability.
Product Parameters
Technical Parameters

Name	24DHA	24DHB
Power control	Dual - inverter
Inlet diameter	Φ 0.6 - 1.2 mm	Φ 0.6 - 1.2 mm
Outlet diameter	Φ 0.08 - 0.32 mm	Φ 0.08 - 0.32 mm
Drawing line speed	2500 m/min	2500 m/min
Drawing dies No.(Max)	24	24
Mechanical Elongation Rate	15% + 8.7%	13% + 8.7%
Construction of the machine body	Monoblock casting
Capstan	Imported high quality ceramic
Capstan dia.(Max)	Φ 206.85 mm
Dimension of take- up spool	Φ 300 x 215 x 270 / Φ 300 x 215 x 290 mm
Traverse method	Flat belt
Drawing / take-up motor	AC 11KW / AC 4KW
Drive	Imported advanced flat belt drive
Control type	PID Dual Inverter automatic control
Maximum copper load	50 kg
Power supply	380V, 50/60Hz
Lubricantion type	Spray type
Brake	Magnetic brake
Machine dimension	L2670 x W1500 x H1950 mm
Machine weight	2200 kgs
