Milling Drilling Functions Tck56y Horizontal 3 Axis Slant Bed CNC Turning Center
| US$19,900.00-49,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Tck56Y
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Precision
High Precision
Casting
One- Piece Casting
Swing Over Bed
560mm
Max.Processing Length
420mm
Max.Processing Diameter
310mm
Spindle Bore
65mm
Spindle Nose Type
A2-6
Transport Package
Plywood Case
Specification
2200*1600*1850
Trademark
shenghuan
Origin
China
HS Code
8458110090
Production Capacity
500
Packaging & Delivery
Package Size
279.00cm * 190.00cm * 185.00cm
Package Gross Weight
4000.000kg
Product Description

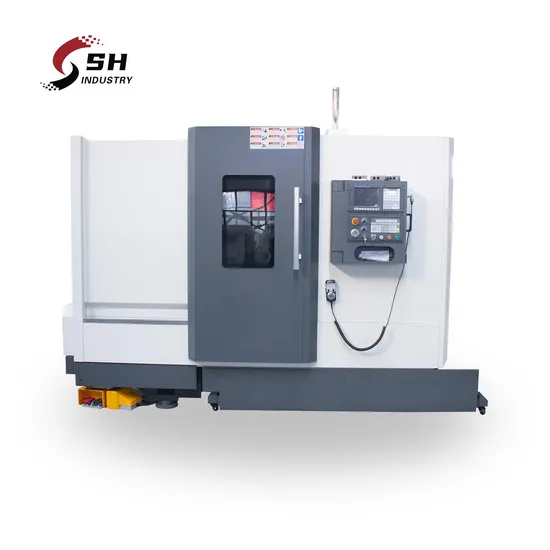

Milling Drilling Functions Tck56y Horizontal 3 Axis Slant Bed CNC Turning CenterRealistic photos
Product features: Highest accuracy Taiwan linear guide ways Higher speed spindle unit ,optional homemade spindle Higher rigidity cast iron Integrated automatic lubrication One-piece casting slant bed cnc lathe Application : The machine is suitable for automobile, motorcycle, electronics, aerospace,oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient. Product Parameters
| SPECIFICATIONS | SPECIFICATIONS | Units | TCK56Y | TCK56Y-BMT55 |
| Swing over bed | mm | 560 | 600 | |
| Max.processing length | mm | 420 | 500 | |
| Max.processing diameter | mm | 310 | 460 | |
| Spindle nose type | - | A2-6 | A2-6 | |
| Spindle bore | mm | 65 | 65 | |
| Spindle speed steps | stepless | stepless | ||
| Spindle speed range | rpm | 50-4500 | 50-4500 | |
| X axis travel | mm | 200 | 280 | |
| Y axis travel | mm | ±30 | ±50 | |
| Z axis travel | mm | 500 | 500 | |
| Main spindle motor | kw | 30 | 30 | |
| X/Y/Z axis rapid traverse | M/min | 30/12/30 | 30/12/30 | |
| Turret type | - | 12 station power turret | 12 station power turret | |
| Machine weight | kg | 3600 | 4500 |
Main technical specifications: Detailed Photos
