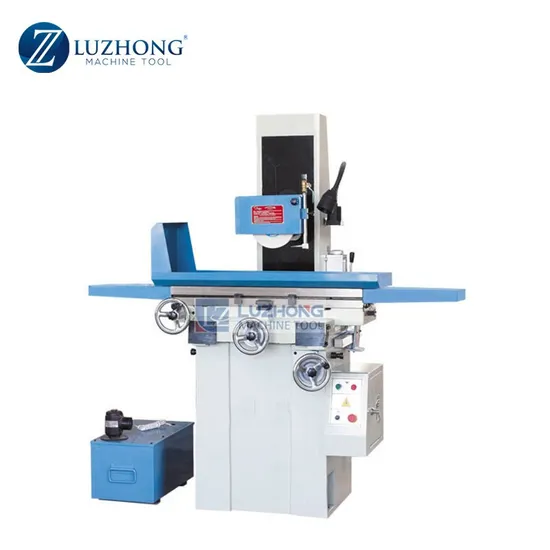

Metal Cheap High Precision M1022 Manual Surface Grinder Machine with price

Product Description

Metal Cheap High Precision M1022 Manual Surface Grinder Machine with price
Product Description
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts. Product Parameters
Product main technical parameters:

Specifications			Units	M1022
Work table	Worktable size (L * W)		mm	540×250
	Max. travel of table (L * W)		mm	560×260
	Table T slot (slot number x slot width)		mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)		mm	φ200×20×Φ31.75
	Distance spindle center line to working table		mm	420
	Grinding wheel speed	50HZ	r/min	2850
		60HZ	r/min	3360
The amount of feed	The vertical (up and down) feed handwheel feed	Handwheel per turn	mm	1.25
		Handwheel per lattice	mm	0.01
	Transverse (front and rear) feed handwheel feed	Handwheel per turn	mm	4.0
		Handwheel per lattice	mm	0.02
Motor power	Spindle motor		kw	1.5
	Cooling motor		W	40
working accuracy	he process surface of the base level of the parallel degree		mm	300:0.005
	Surface roughness		μm	Ra0.32
Machine weight	Net weight		kg	850
	Gross weight		kg	950
External size (L * w * h)			mm	1680x1140x1760
Packing size (L * w * h)			mm	1200x1400x1940

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
