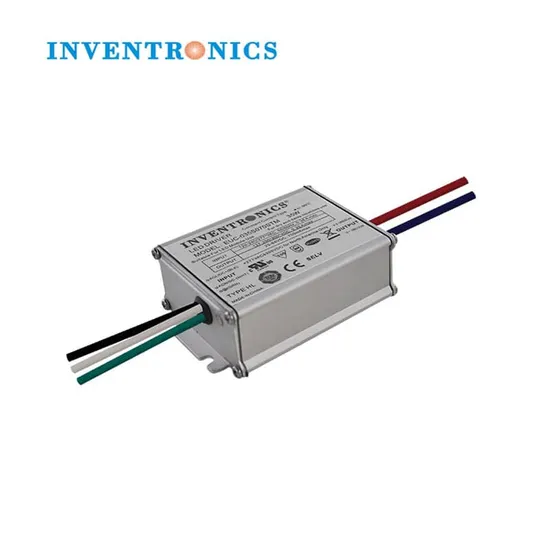

Inventronics 30W 32W 35W 500mA 700mA 860mA 1050mA IP66 Constant Current LED Driver

Inventronics 30W 32W 35W 500mA 700mA 860mA 1050mA IP66 Constant Current LED Driver

US$11.00-13.00 100 Pieces (MOQ)

Basic Info.

Model NO.
EUC-035S070STM0004 EUC-035S070STM EUC-035S105STM
Driving Method
LED Constant Current
Circuit Structure
Electronic Step-down Transformer
Certification
TUV, CE, RoHS, ISO9001, CCC, LVD, EMC, Bis, Nom, FCC, ENEC, CB, Ks, Kcc etc.
Power Supply Mode
Constant Current Source
Modulation System
Non-Dimming
In-Out
AC 90-305V Input, DC Output
Power Supply Voltage
90 ~ 305 VAC 127 ~ 300 VDC
Pack Sealing Size
SMD
Brand
Inventronics
Product Name
Inventronics 30W 35W Constant Current LED Driver
Adjustable Output Current
500mA 600mA 700mA 800mA 860mA 900mA 1000mA 1050mA
Output Voltage Range
32-64VDC 25-50VDC 20-41VDC 18-33V 24V 36V 48V 54V
Warranty
5 Years
Dimming Functions
Non-Dimming
IP Class
Waterproof (IP66)
Input Surge Protection
Dm 4kv, Cm 6kv
Efficiency
Super High Efficieny, up to 88%
Power Factor
0.99 at 120VAC; 0.96 at 220VAC
Protections
All-Around Protection: Ovp, SCP, Otp
Features
Compact Metal Case Excellent Thermal Performance
Other Features
Class 2 & Selv Output Low Thd 10% Max up to 240VAC
Applications
LED Street Lighting, Tunnel Lights, Stadium Lights
Delivery Time
3 to 60 Working Days Due to Models and Quantity
Shipping Way
by Sea, by Train, by Air, by Express DHL FedEx etc
Transport Package
9PCS Per Inner Tray, 54PCS Per Brown Carton
Specification
3.82"x2.52"x1.26" inches (97x64x32mm), 330g
Trademark
Inventronics
Origin
Hangzhou, Zhejiang, China
HS Code
8504401400
Production Capacity
20000pieces/Month

Packaging & Delivery

Package Size
10.00cm * 15.00cm * 5.00cm
Package Gross Weight
0.900kg

Product Description

Product Parameters
Models:
Full-Power Output Current Range Input Voltage Range (1) Output Voltage Range Max. Output Power Typical
Efficiency
(2)
Power Factor Model Number (3)
120Vac 220Vac
500 mA 90 ~ 305 Vac 127 ~ 300 Vdc 32-64Vdc 32 W 88% 0.99 0.95 EUC-035S070STM0004 (3)
550 mA 90 ~ 305 Vac 127 ~ 300 Vdc 32-64Vdc 35 W 88% 0.99 0.95 EUC-035S070STM0003 (3)
600 mA 90 ~ 305 Vac 127 ~ 300 Vdc 29-58Vdc 35 W 87% 0.99 0.95 EUC-035S070STM0002 (3)
650 mA 90 ~ 305 Vac 127 ~ 300 Vdc 27-54Vdc 35 W 87% 0.99 0.95 EUC-035S070STM0001 (3)
700 mA 90 ~ 305 Vac 127 ~ 300 Vdc 25-50Vdc 35 W 87% 0.99 0.95 EUC-035S070STM0000 (3)
750 mA 90 ~ 305 Vac 127 ~ 300 Vdc 23-47Vdc 35 W 87% 0.99 0.95 EUC-035S105STM0006 (4)
800 mA 90 ~ 305 Vac 127 ~ 300 Vdc 22-44Vdc 35 W 87% 0.99 0.95 EUC-035S105STM0005 (4)
860 mA 90 ~ 305 Vac 127 ~ 300 Vdc 20-41Vdc 35 W 87% 0.99 0.95 EUC-035S105STM0004 (4)
900 mA 90 ~ 305 Vac 127 ~ 300 Vdc 20-39Vdc 35 W 86% 0.99 0.95 EUC-035S105STM0003 (4)
950 mA 90 ~ 305 Vac 127 ~ 300 Vdc 18-37Vdc 35 W 86% 0.99 0.95 EUC-035S105STM0002 (4)
1000mA 90 ~ 305 Vac 127 ~ 300 Vdc 18-35Vdc 35 W 86% 0.99 0.95 EUC-035S105STM0001 (4)
1050mA 90 ~ 305 Vac 127 ~ 300 Vdc 18-33Vdc 35 W 86% 0.99 0.95 EUC-035S105STM0000 (4)
Notes: (1) UL, FCC certified input voltage range: 120-277Vac or 127-300Vdc; other certified input voltage range except UL & FCC: 120-240Vac or 127-250Vdc. (2) Measured at 100% load and 220 Vac input. (3) SELV output. (4) Class 2 output.
Product Description Fetaures: Low THD, 10% Max up to 240Vac Compact Metal Case with Excellent Thermal Performance Input Surge Protection: DM 4kV, CM 6kV High Reliability & Long Lifetime: 80,000 hrs. at 70°C Case Temperature Suitable for Built-in Use and Class I Luminaires Input UVP and Input OVP IP66 and UL Dry / Damp Location Class 2 & SELV Output TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location 5 Years Warranty
Descriptions: The EUC-035SxxxSTM000x series is a 35W, constant-current IP66 LED driver that operates from 90-305 Vac input with excellent power factor and THD feature. It is created for many lighting applications including low bay, tunnel and street lights, etc. The high efficiency of these drivers and compact metal case enable them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature.
Detailed Photos

Company Profile
Contact Us For Detailed Technical Sheet And More Professional Support:
Carmen Chan
Sales Manager
Hangzhou Felicidad Technology Co., Ltd.
Add: Room 11199, 260 Jiangshu Road, Xixing Street, Binjiang District, Hangzhou City, Hangzhou, Zhejiang, China
Tel: +86 17605889790
