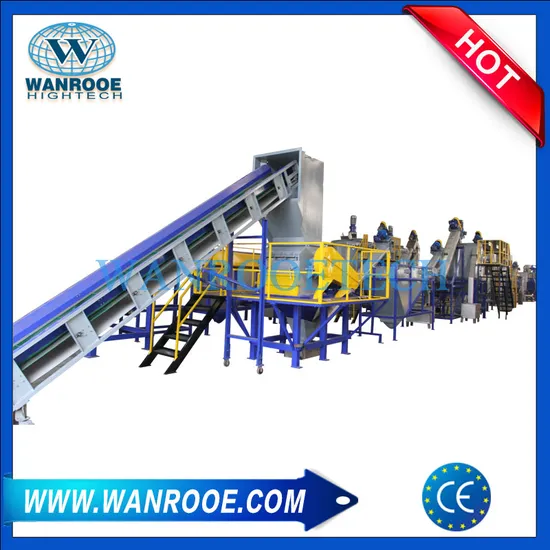

100-3000kg/H Pet Flake Plastic Bottle Recycling Washing Machine

Product Description

100-3000kg/h PET Flake Plastic Bottle Recycling Washing Machine
Application Areas:
Bottles of jars and other containers made of PET can be collected and recycled into a wealth of products. PET can be recycled into new PET bottles and containers, carpet and clothing, industrial strapping, rope, upholstery fabrics, boat sails, automotive parts, fiberfill for winter jackets and sleeping bags, construction materials, and many other items.
Description:
The PET bottle recycling plant takes dirty bottles and transforms them into clean PET flakes. And the flakes can be further processed and reutilized with high commercial value. The production capacity we can make on the PET Bottle washing and recycling line can be 300kg/h to 3000kg/h. The line main purpose is intending to get the clean flakes from the dirty even mixture bottles or bottles slice during dealing with the whole washing line. And also get clean PP/PE collection, labels and paper chips, etc.
The device divided into unpacking, washing, sorting, detecting metal, crushing, floating washing, hot washing, rubbing, rinsing, dehydration, drying and packaging process steps.
Process Flow:
1,Break the compacted bales(Optional)
Bale Opener:As PET bottles generally arrive at washing plants in bales, or compacted bundles of plastic bottles, it must first be unpacked before the bottles can flow freely onto the belt conveyor system.
2,Primary separation of sand and gravel
Trommel:Remove small contaminants such as broken glass, paper/cardboard, metals, rocks.
3,Remove the label
Label Remove machine:Remove the label from the bottles.
4,Sort out different color bottles, and labels
Sorting Conveyor:Picking out the different color bottles and also the bottle still have the label, which makes sure the end products of PET flakes same color and much more clean. Metal Detector is optional.
5,Crushing PET Bottles into PET Flakes
Wet Crusher:Using a wet crusher, whole PET bottles are cut into PET flakes between 12-18mm in size.
6,The First Time Floating washing the PET flakes
Floating Washer:A way to separate materials that float from those that sink, the sink/float separation tank is ideal for PET recycling as PET flakes sink while the plastic film, PP/PE bottle caps, and other contaminants float.
7,Break down the oil & glue
Hot Washer:Using the hot water and chemical to break down the oil and glue on the PET bottles.
8,Separating the contamination
High-speed Friction Washer:The friction wash uses high speeds to create friction between the PET flakes where debris is effectively scrubbed off.
9,The Second Time Floating washing the PET flakes
Floating Washer:It used in cleaning pet flakes, make the flakes cleaner and whiter.
10,Dry the PET flakes
Dewatering Machine:The dewatering machine uses centrifugal force to spin water moisture off the PET flakes.
11,Hot air to dry the PET flakes
Pipeline Dryer:Using the hot air to take the humidity away from the clean material.
Technical Features:
1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 100-2000kg/hr.
2.Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4. This China Hot Selling Waste PET Bottle Washing Machine can easily wash and recycle waste PET bottle flakes. Equipment at the end of the washing line so that the completely dry flakes can be collected and packed directly after being washed.
5. The whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.
6. Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be the PET granule material and in order to produce new PET bottles.
System Configuration:

No.	Machine Name	Note
1	Bale breaker	Custom
2	Belt Conveyor	PVC Belt
3	Metal detector	Custom
4	Label Remover	Remove the label from the bottles.
5	Manual Sorting Belt	Custom,PVC Belt
6	Belt Conveyor	PVC Belt
7	Crusher	Blade metal:alloy(9CrSi or SKD-II)
8	Screw Loader	Made of Stainless steel
9	Hot Washer	Made of Stainless steel ,can put some soda
10	High-speed Friction Washer	Made of Stainless steel Can be design Two-screw
11	Sink-Float Tank	Single-screw or Two-screw
12	Dewatering Machine	Vertical or Horizontal
13	Drying system	Made of Stainless steel
14	Storage hopper	Normally 1000L
15	Flakes Pneumatic Separating Machine	New style label remover for flakes

Technical Parameters

Model	Material	Install Power	Capacity	Water Consumption	End Products Humidity
PNQT-300	PET,PS,PC,ABS	100kw	300kg/h	4-6litres/kg	<=3%
PNQT-500	PET,PS,PC,ABS	150kw	500kg/h	3-6litres/kg	<=3%
PNQT-800	PET,PS,PC,ABS	200kw	800kg/h	3-5litres/kg	<=3%
PNQT-1000	PET,PS,PC,ABS	280kw	1,000kg/h	2-3litres/kg	<=3%
PNQT-1500	PET,PS,PC,ABS	350kw	1.5Tons	2-3litres/kg	<=3%
PNQT-2000	PET,PS,PC,ABS	400kw	2Tons	2-3litres/kg	<=3%
PNQT-3000	PET,PS,PC,ABS	500kw	3Tons	2-3litres/kg	<=3%

Packing &Shipping:
FAQ

1,Are you trading company or manufacturer ?
A:WANROOETECH is a Factory-Outlet Platform for excellent manufacturers only!
2,As the shipping period will take long time, how can you make sure the machine won't be broken?
A:Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

3,I am foreign customer, if the product's part is broken, how can get help from you?
A:Some standard configurations you can buy in your local market, such such as SIEMENS Motor, SKF bearing.

4,Could i know the process of manufatcuring production after placing the order?
A:Our sales will share video after testing, or take online video when testing machine. Of course, also welcome you to our factory to see machine testing.

5,Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings according to the quantity .

6,Where is your factory located? How can I visit there?
A:Our company is located in ZhangJiaGang City, China, really glad to invite you to come to our office to have a face to face meeting before we build order.

7,We are new buyers, do not know how to buy? Can we use our own freight forwarding?
A:We are a very experienced company, we will provide you with the guidance of security. We have l ong-term freight forwarders partners to ensure delivery goods to various countries for our customers .You can use your freight forwarding.
Our service
1. One year guarantee for whole machine
2. 24 hours technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well
